To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

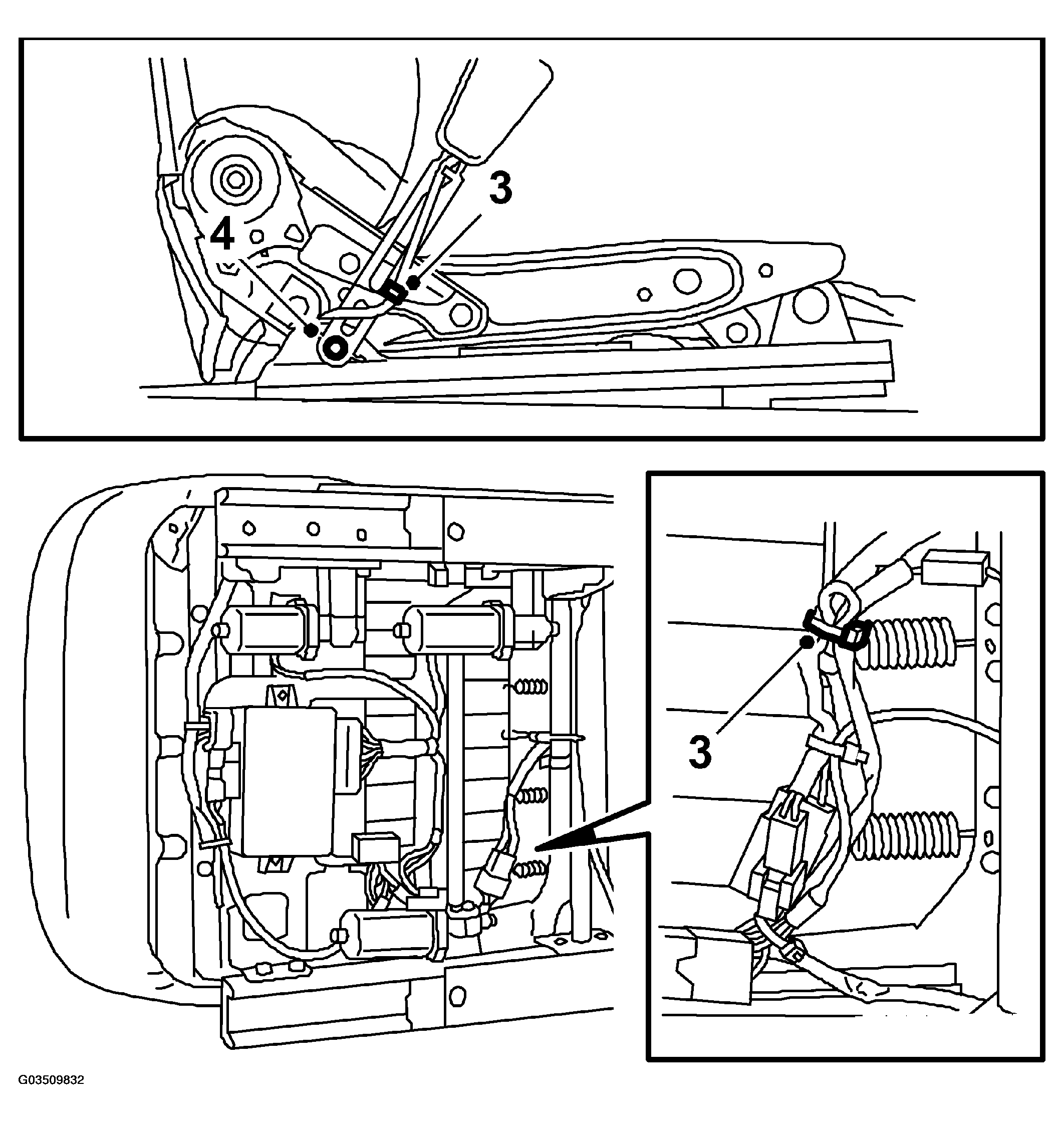

Fig 1: Illustration For Step 3-4
G03509832Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front seat  .
  2. Loosen the strip on the back of the seat base.
  3. Cut off the cable tie and unplug the connector.
  4. Unscrew the belt buckle.
