To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side trim. See REAR SIDE TRIM, 3D or REAR SIDE TRIM, CV .
  2. Remove the bolt securing the seat belt to the floor.
  3. Remove the bolt securing the strap guide.

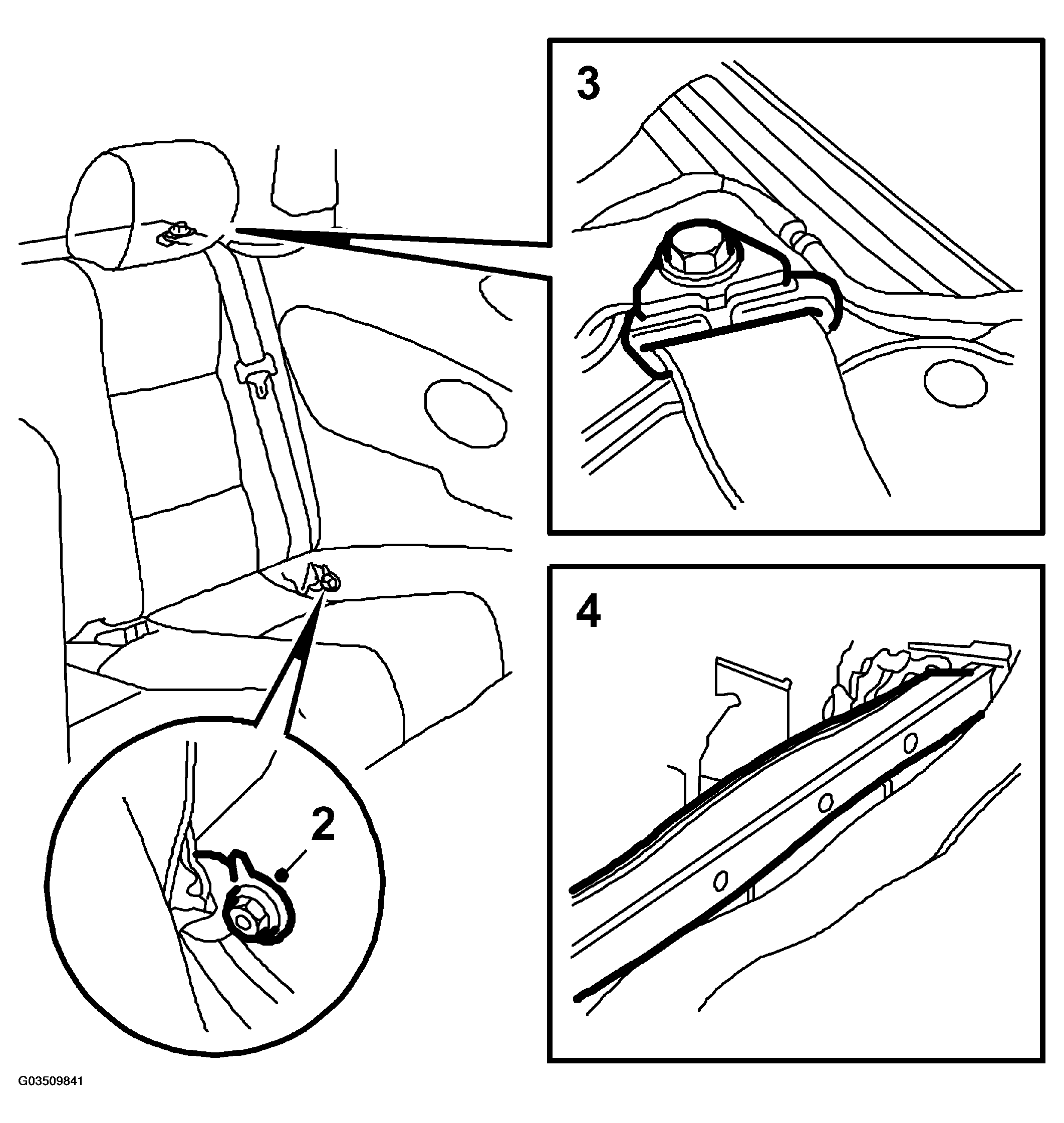

    Fig 1: Illustration For Step 2-4
    G03509841Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the clip securing the upholstery above the long-load opening.
  5. Remove the clips securing the upholstery below the long-load opening.

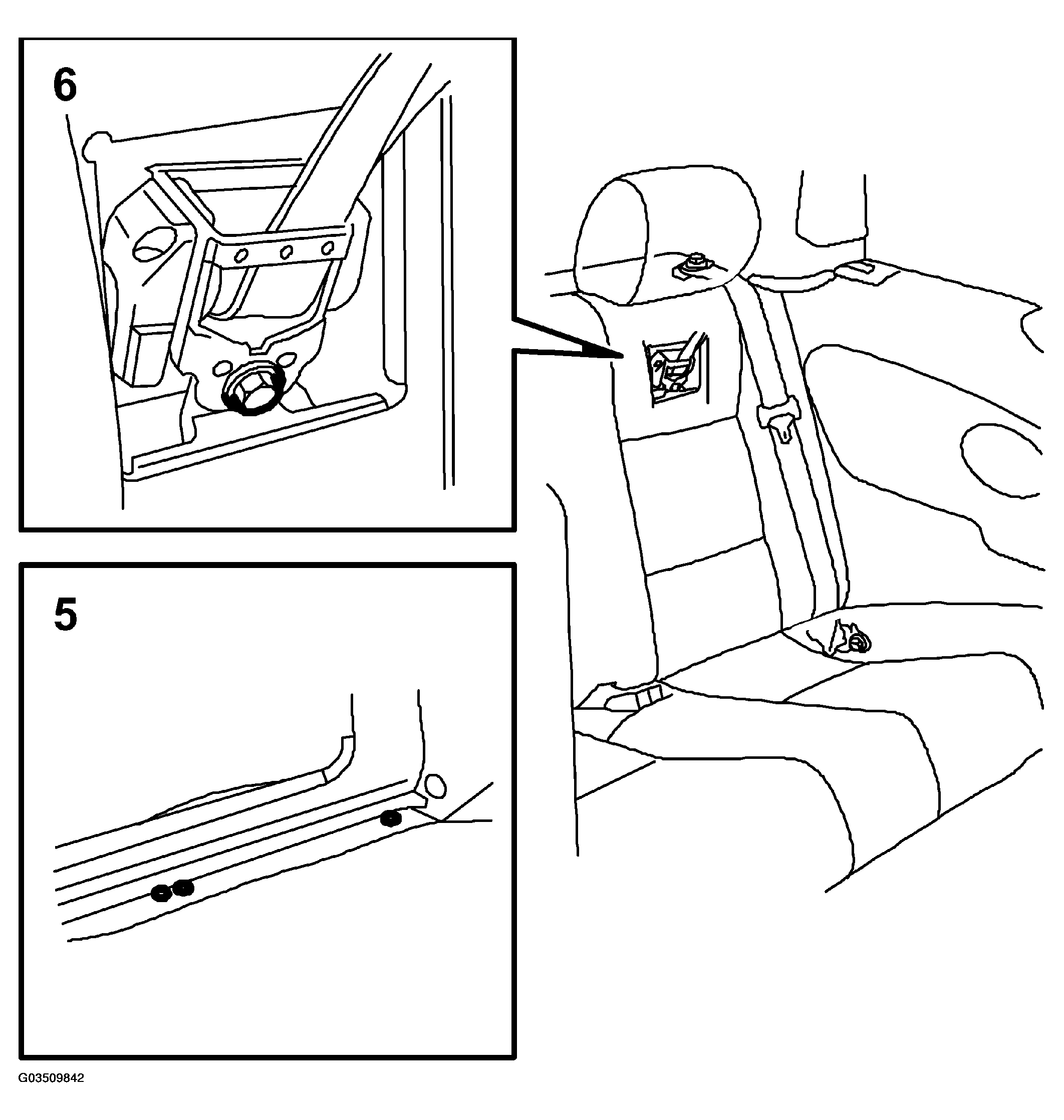

    Fig 2: Illustration For Step 5-6
    G03509842Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Move aside the upholstery and remove the bolt securing the seat belt reel.
  7. Remove the seat belt.
