To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

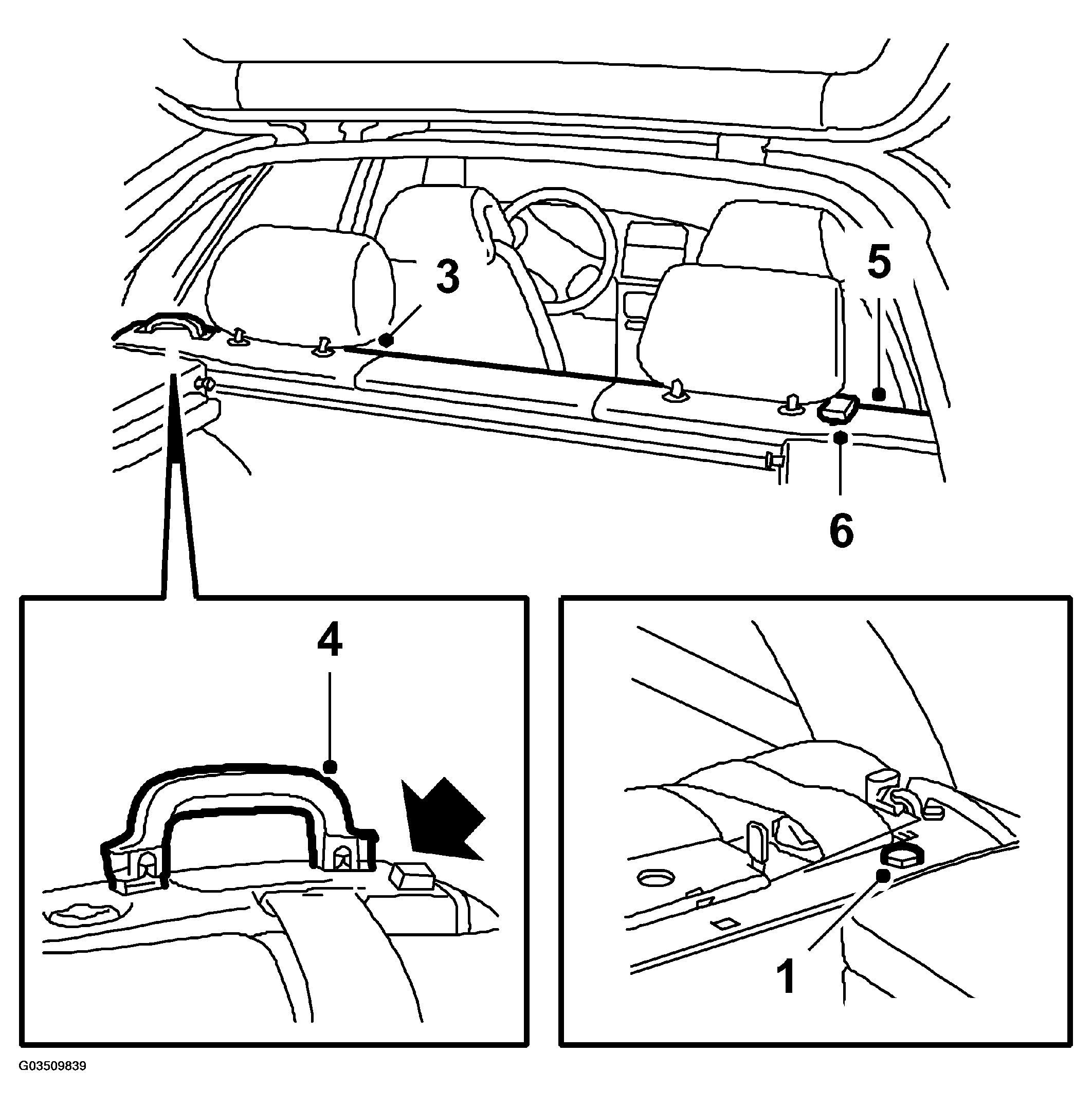

Fig 1: Illustration For Step 1, 3-6
G03509839Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the inertia reel retaining bolts.

    Tightening torque 38 N.m (28 lbf ft)  .

  2. Refit the covers onto the seat belts.
  3. Refit the left -hand cover onto the belt member.
  4. Fit the cable onto the handle and refit the belt member release handle.
  5. Hook on the cable to the lock arm and fit the right-hand cover.
  6. Fit the lock handle to the 40% section.
    NOTE: Make sure the cable runs correctly in the belt member release handle and check that the belt member can be opened and closed properly.
  7. Fasten the center cover to the belt member.
  8. Fit the head restraint mountings into the belt member.
  9. Fit both the rear head restraints.
  10. Fit the center belt anchorage.

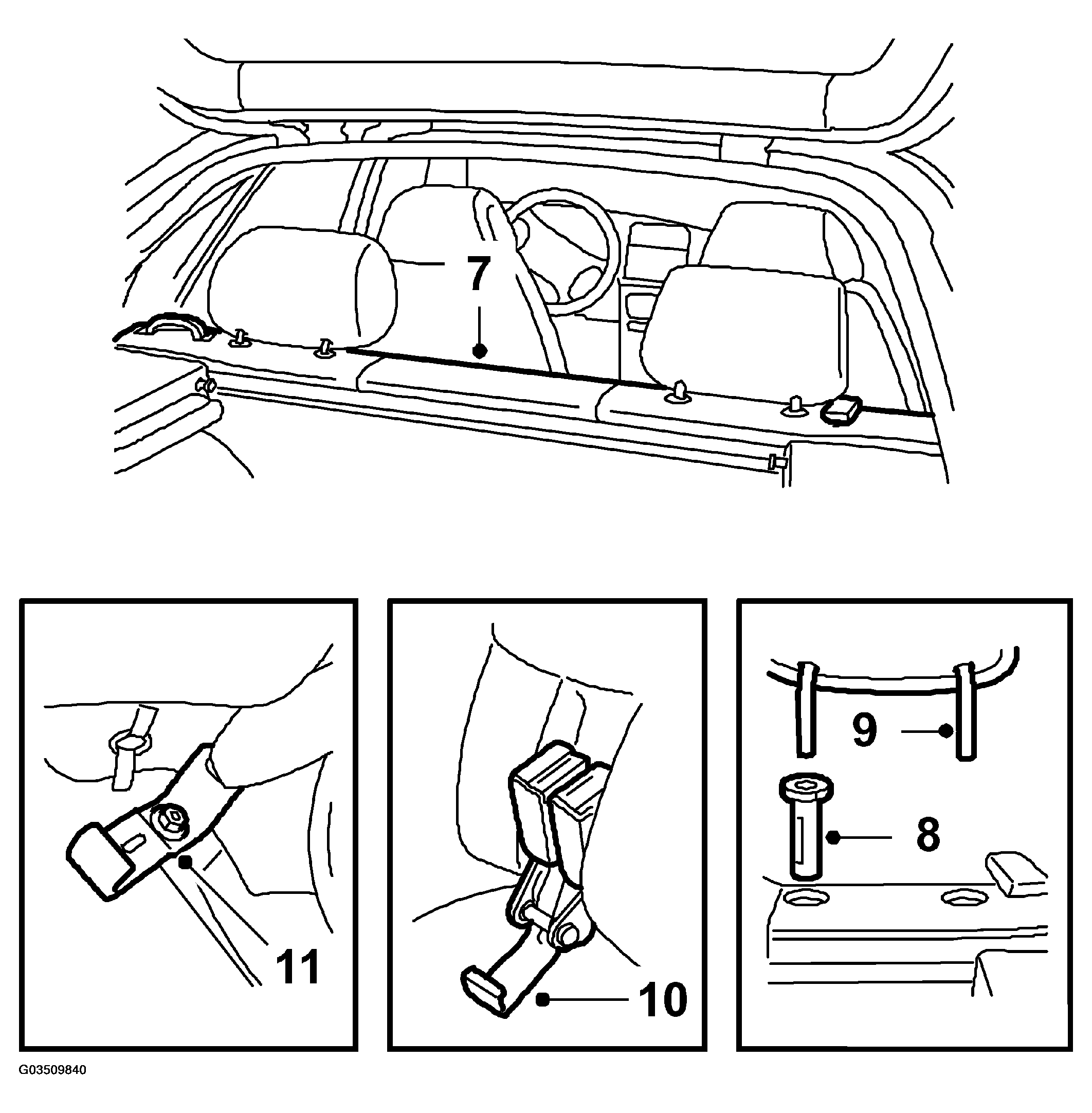

    Fig 2: Illustration For Step 7-11
    G03509840Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Fit the side belt anchorages, they are fastened to the side impact protection.
  12. 5-door:  Fit the scuff plates to the right and left-hand rear sills (fastened with clips).
  13. Lower both the rear seat cushions.
