To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

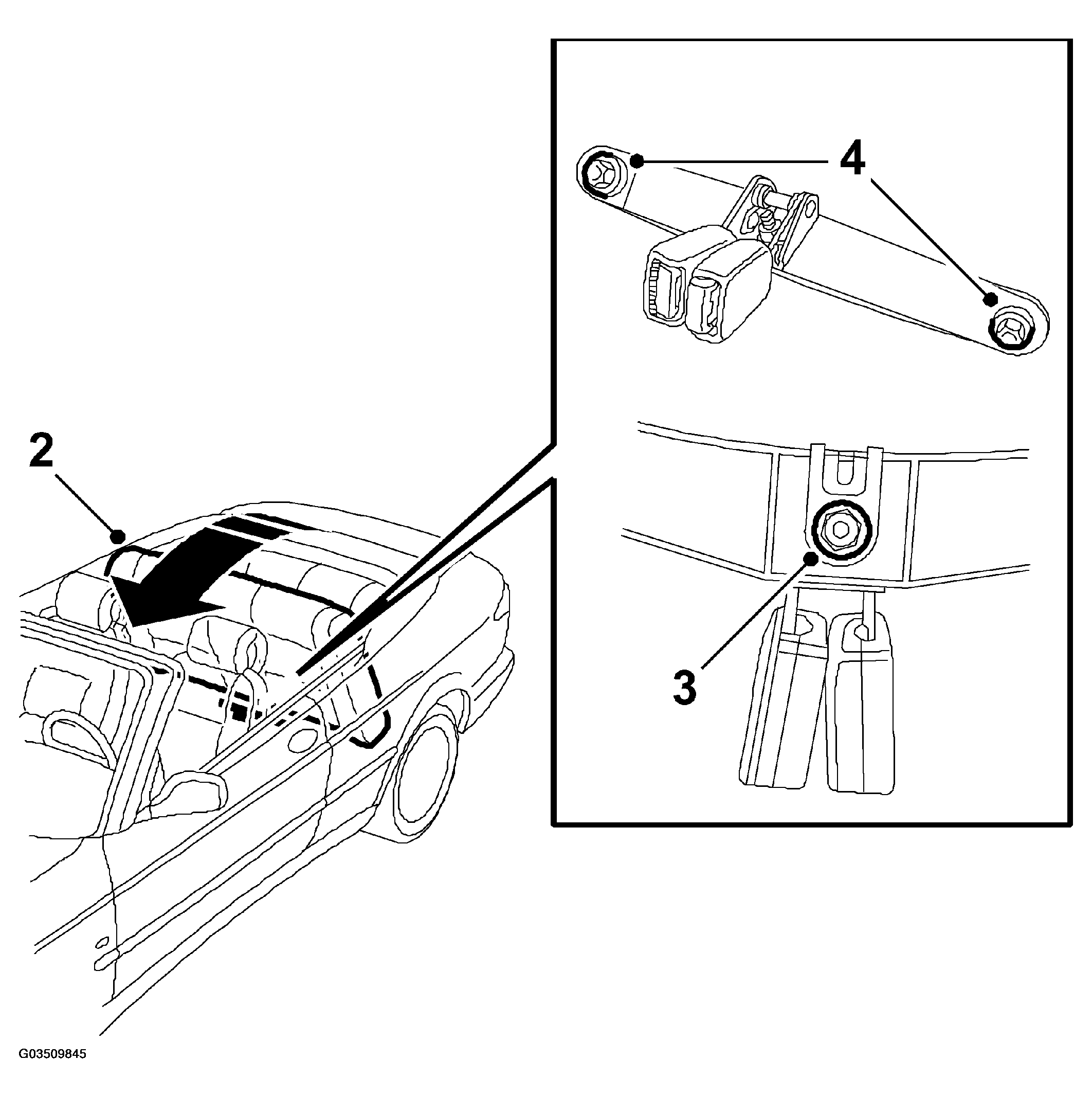

Fig 1: Illustration For Step 2-4
G03509845Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the rear seat cushion.
  2. Fold the backrest cushion forward halfway so that the bolts securing the belt-buckle are accessible.
  3. Remove the nut securing the belt-buckle.
  4. Remove the bolts securing the belt-buckle bracket.
