Electrically adjustable driver's seat with memory, LHD: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

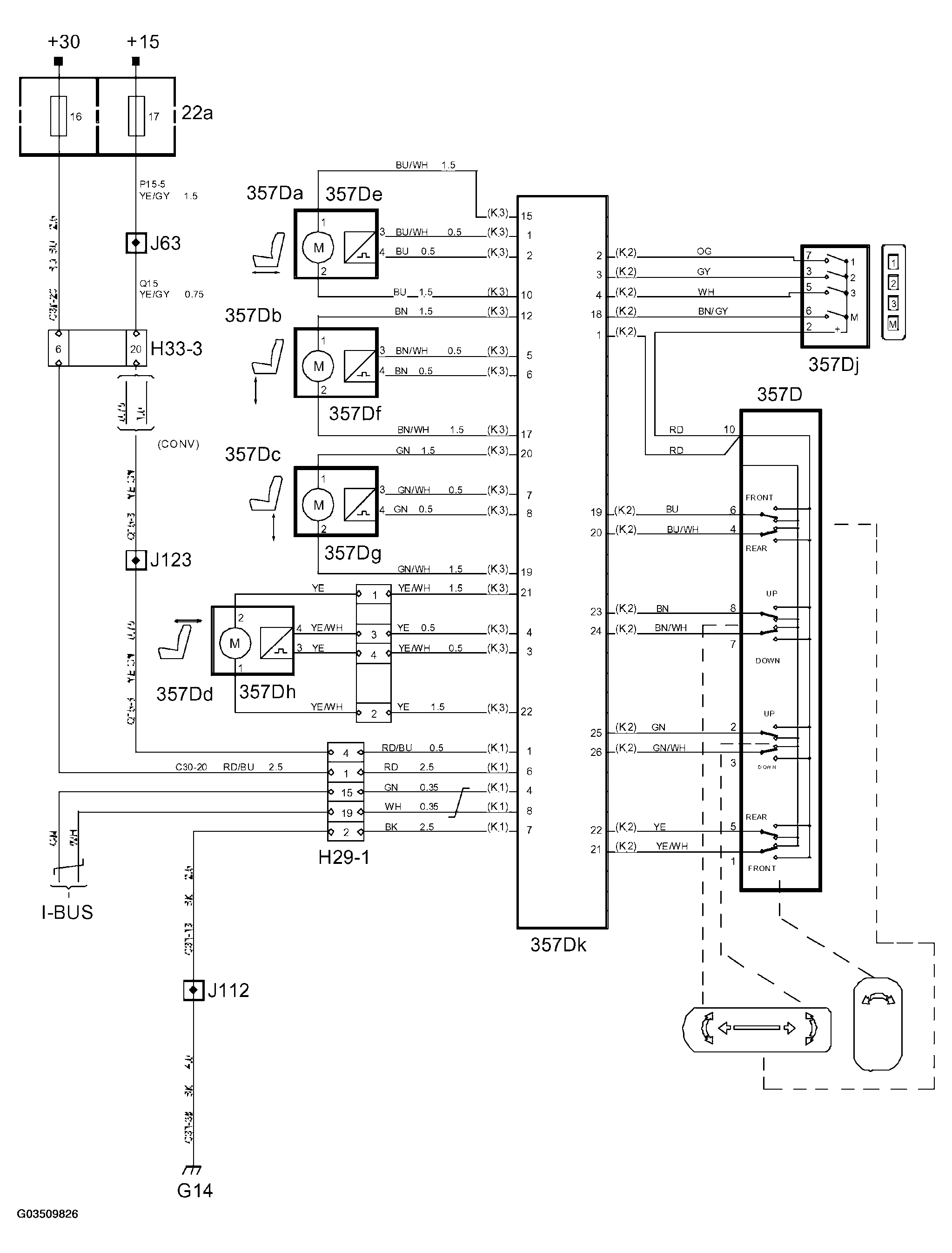

Fig 1: Electrically Adjustable Driver'S Seat With Memory, LHD Circuit Diagram
G03509826Courtesy of SAAB-SCANIA OF AMERICA, INC.
