Electrically heated front seat: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

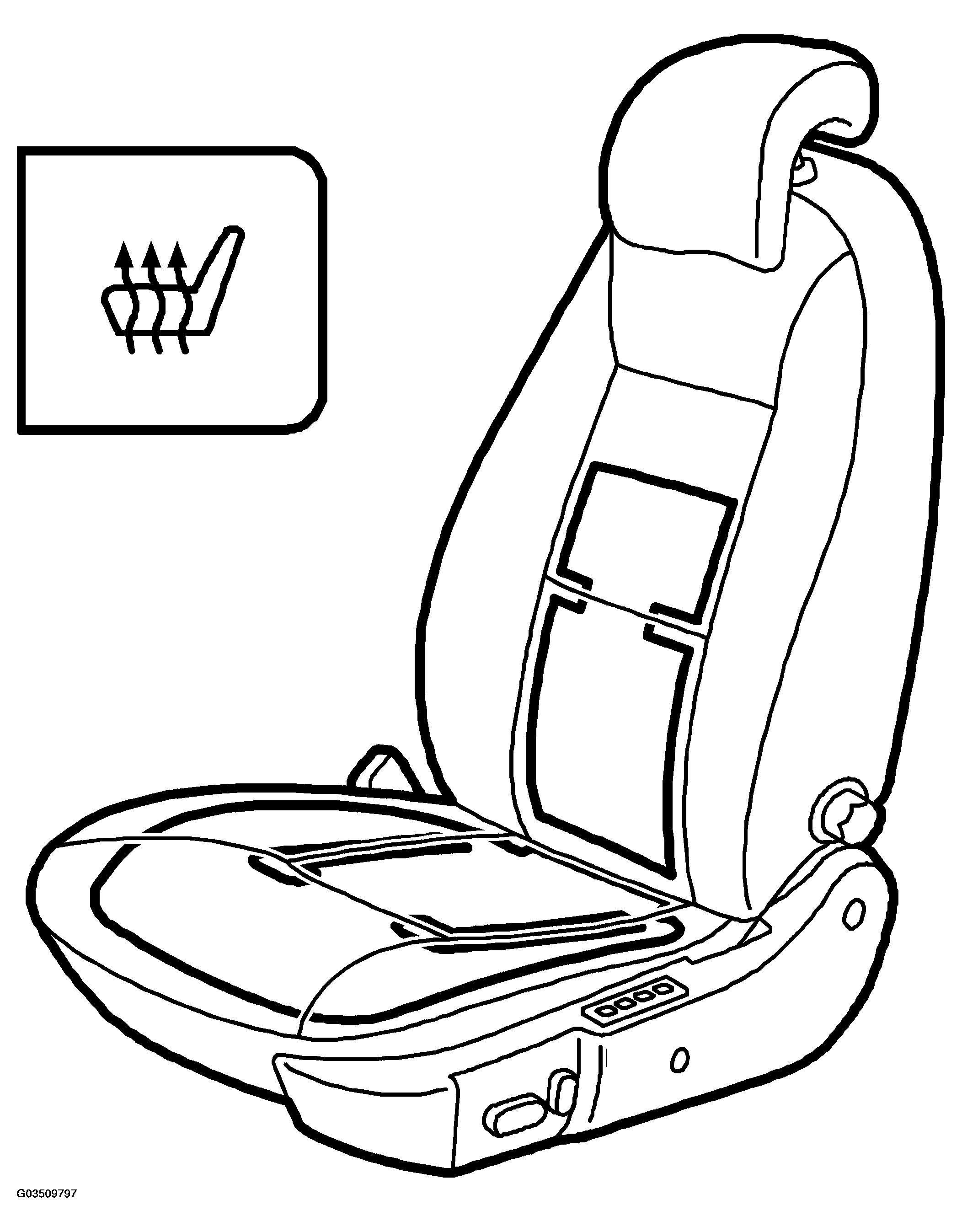

Fig 1: Identifying Electrically Heated Front Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

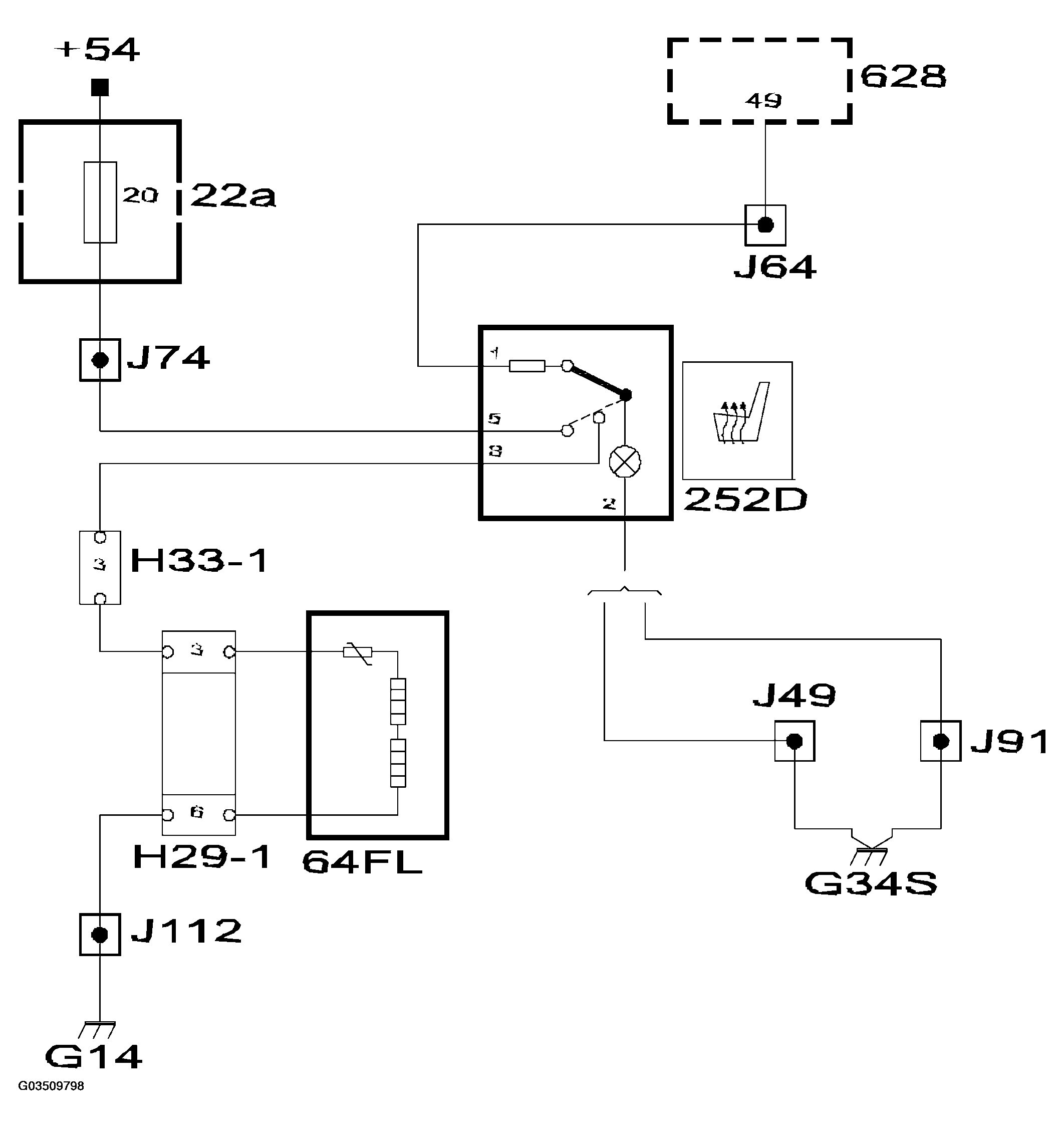

Fig 2: Electrically Heated Front Seat Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Both front seats have electric heating of the seat and backrest cushions. The heating can be activated when the ignition is in the ON position (+54).
