Electrically adjustable passenger seat: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

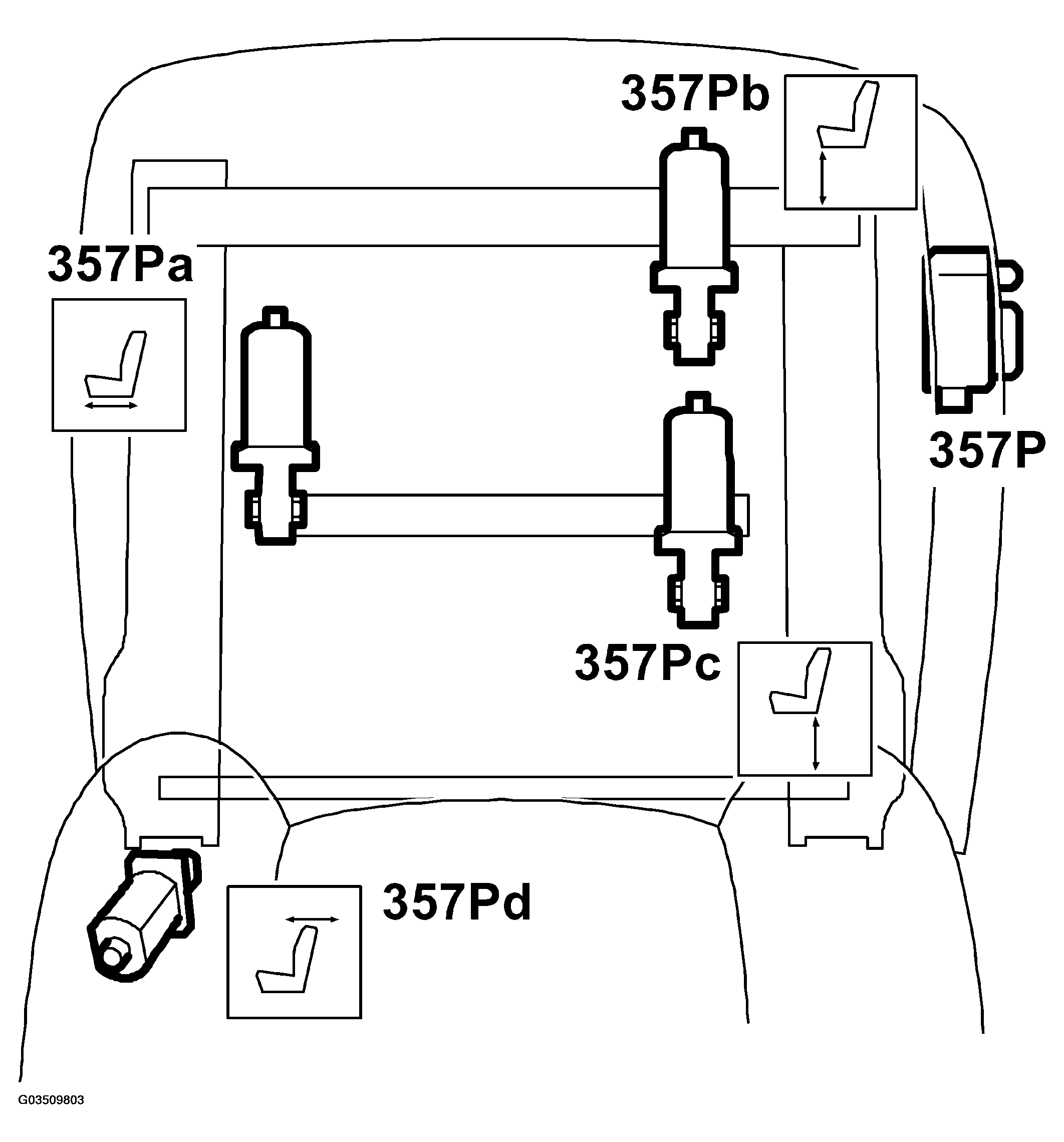

Fig 1: Identifying Electrically Adjustable Passenger Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

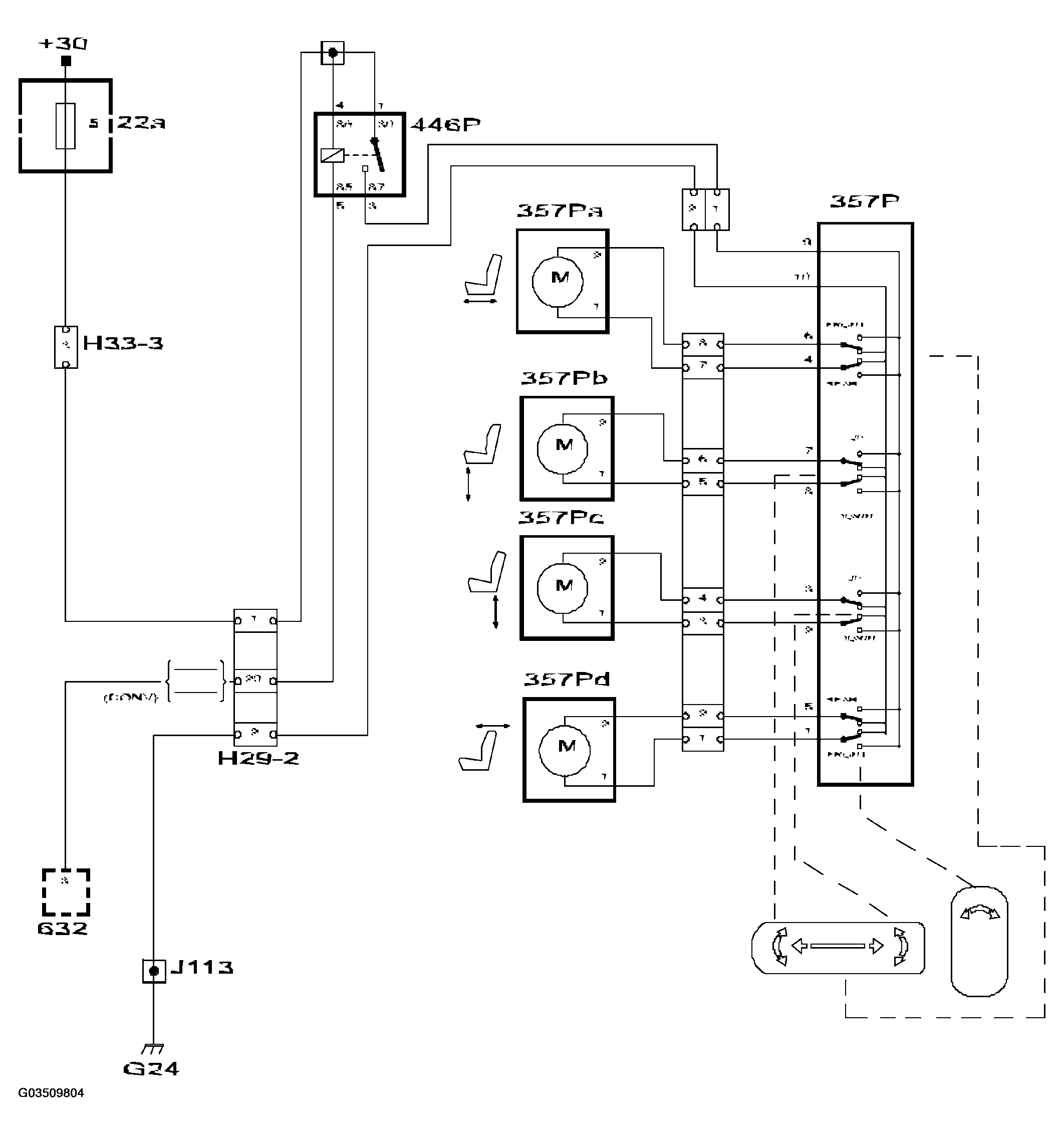

Fig 2: Electrically Adjustable Passenger Seat Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The passenger seat is operated with the switch in the side panel on the seat. Electric motors move the seat lengthways, change the height of the front and back of the seat and change the reclining position of the backrest.
