P bus and I bus

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

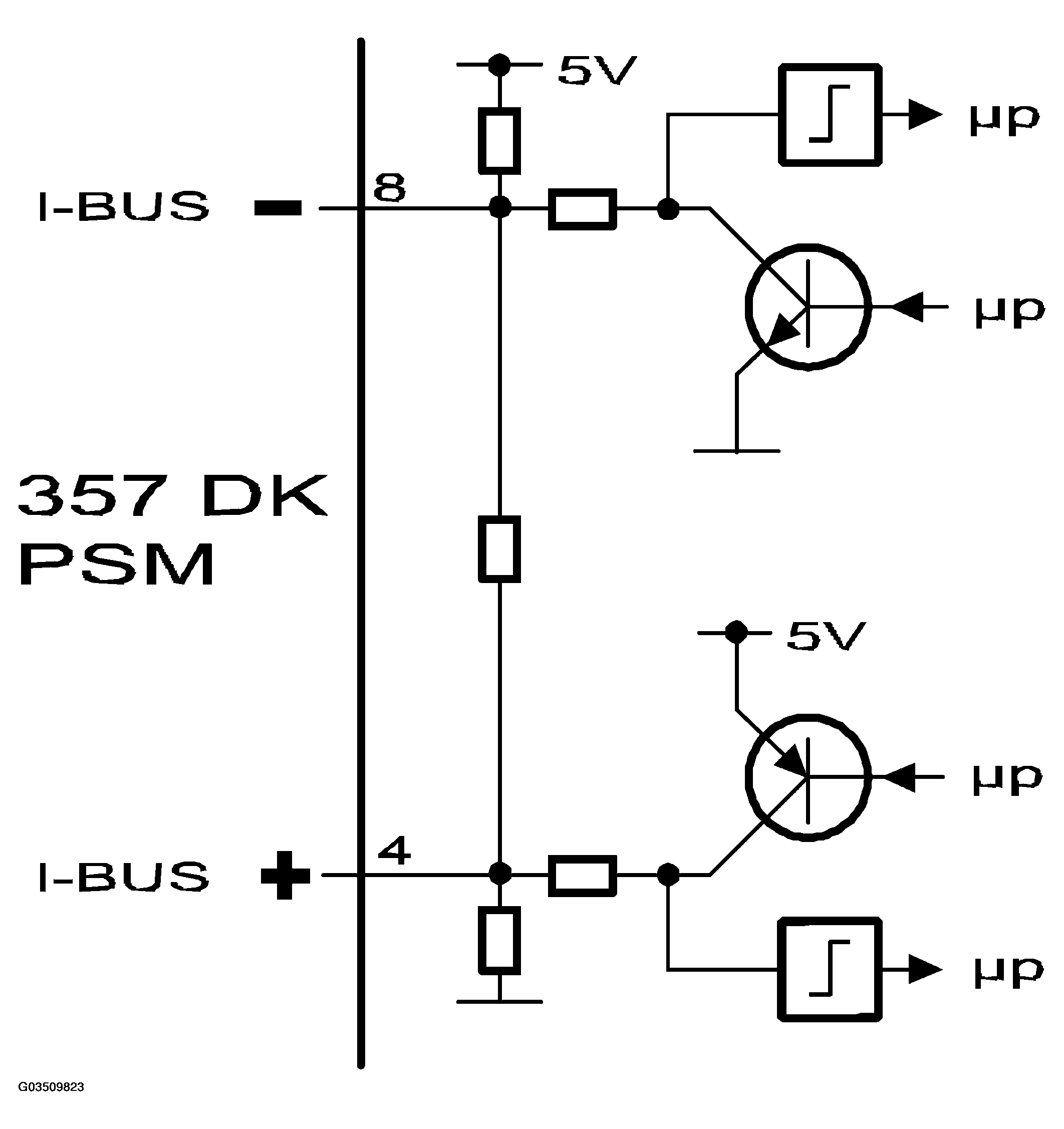

Fig 1: P Bus And I Bus Circuit Diagram
G03509823Courtesy of SAAB-SCANIA OF AMERICA, INC.

For further information on bus communication, see SYSTEM OVERVIEW  or P-bus and I-bus  .
