Memory functions faulty, manual operation of seat OK: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

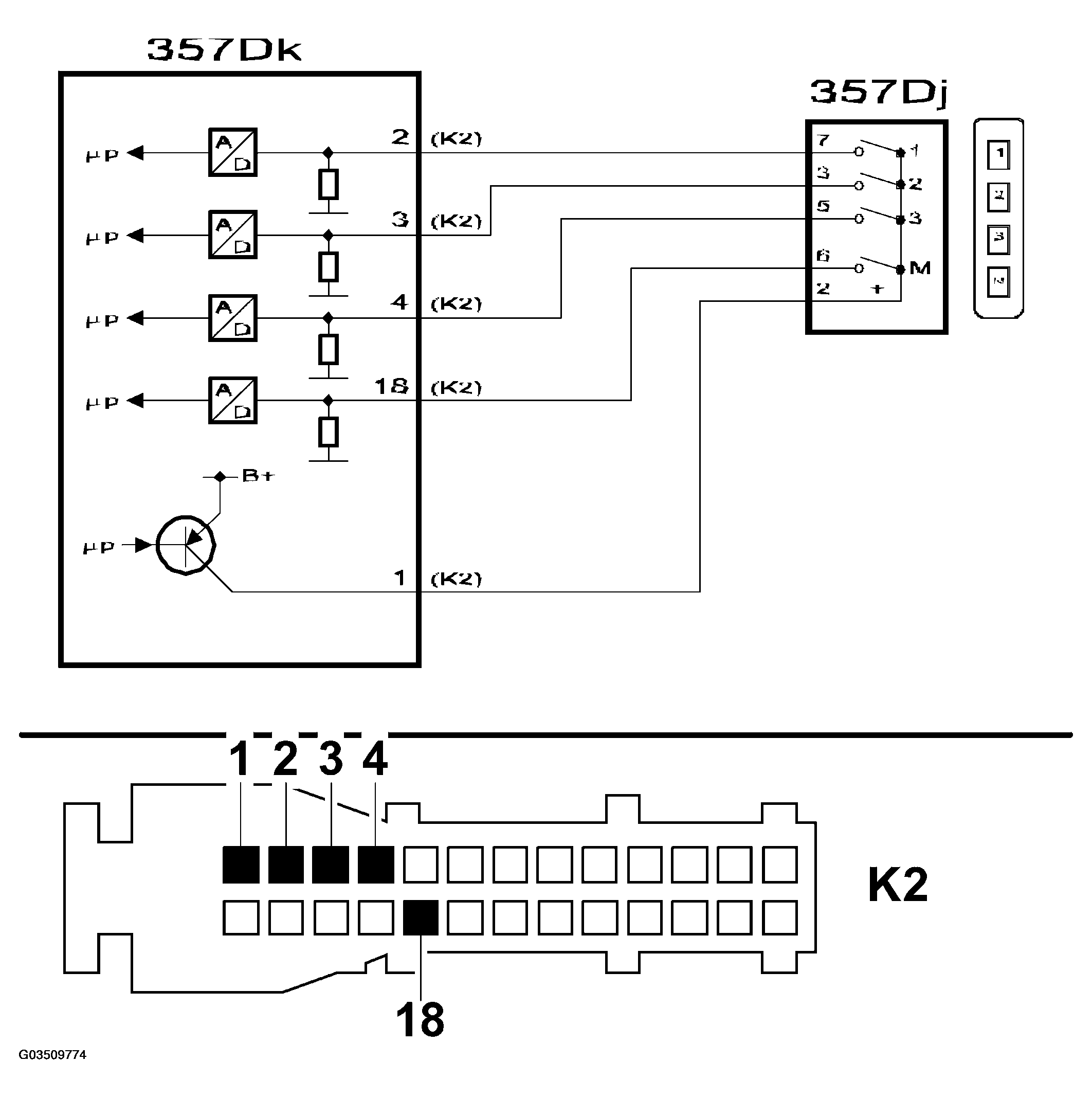

Fig 1: Memory Functions Faulty, Manual Operation Of Seat Ok Circuit Diagram
G03509774Courtesy of SAAB-SCANIA OF AMERICA, INC.
