DTC B1130: Rear Seat Heating Relay - Short to B+ & Open Circuit/Short to Ground: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

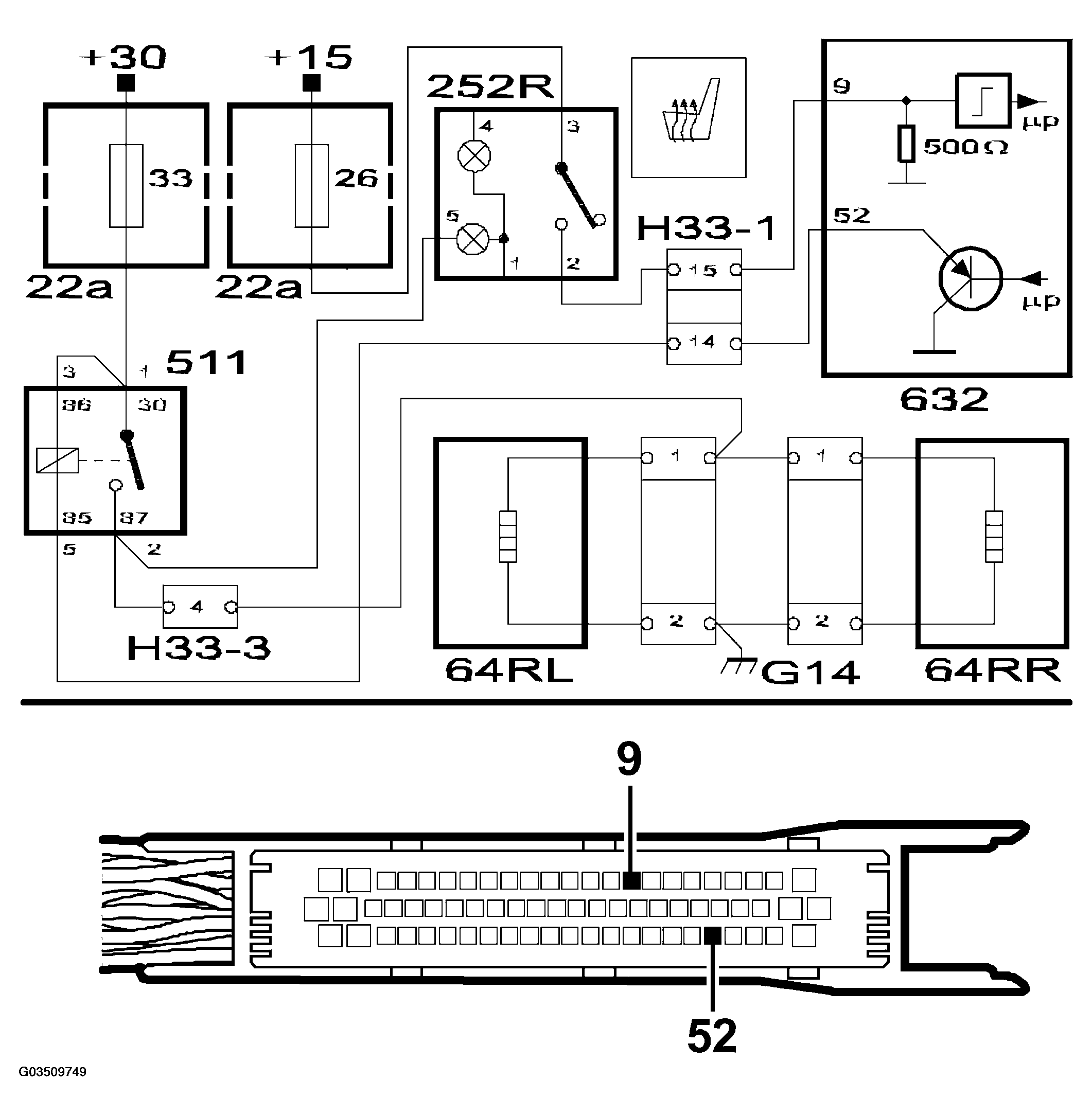

Fig 1: Rear Seat Heating Relay Circuit Diagram
G03509749Courtesy of SAAB-SCANIA OF AMERICA, INC.
