Crimp J123, rear harness

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

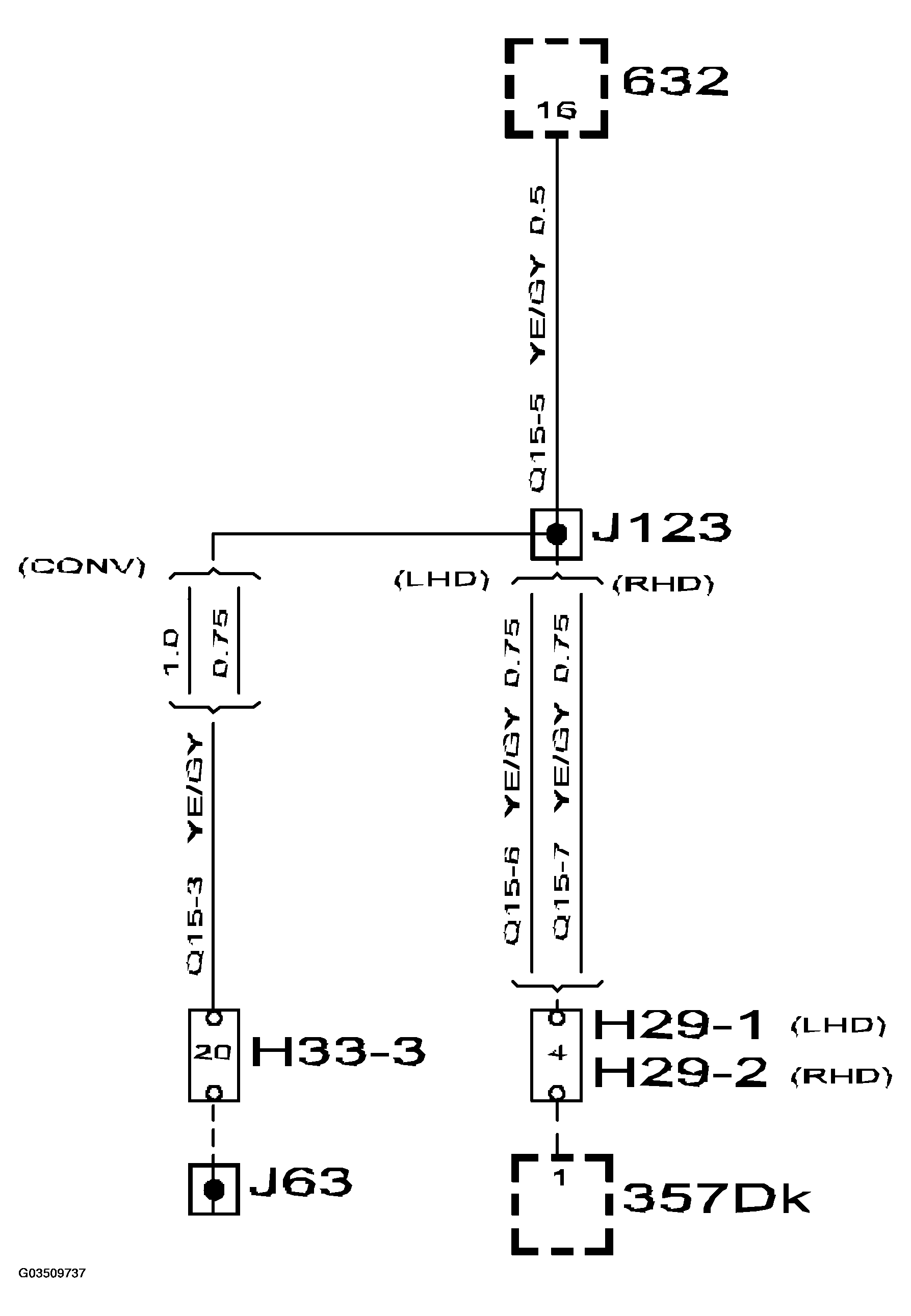

Fig 1: Crimp J123, Rear Harness Circuit Diagram
G03509737Courtesy of SAAB-SCANIA OF AMERICA, INC.
