Home >> Saab >> 2003 >> 9-3 SE, Standard >> Repair and Diagnosis >> External Pages >> Different car >> Section 33 (Seats) >> Component Location >> Control module, DICE (628) >> LHD

Control module, DICE (628): LHD

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

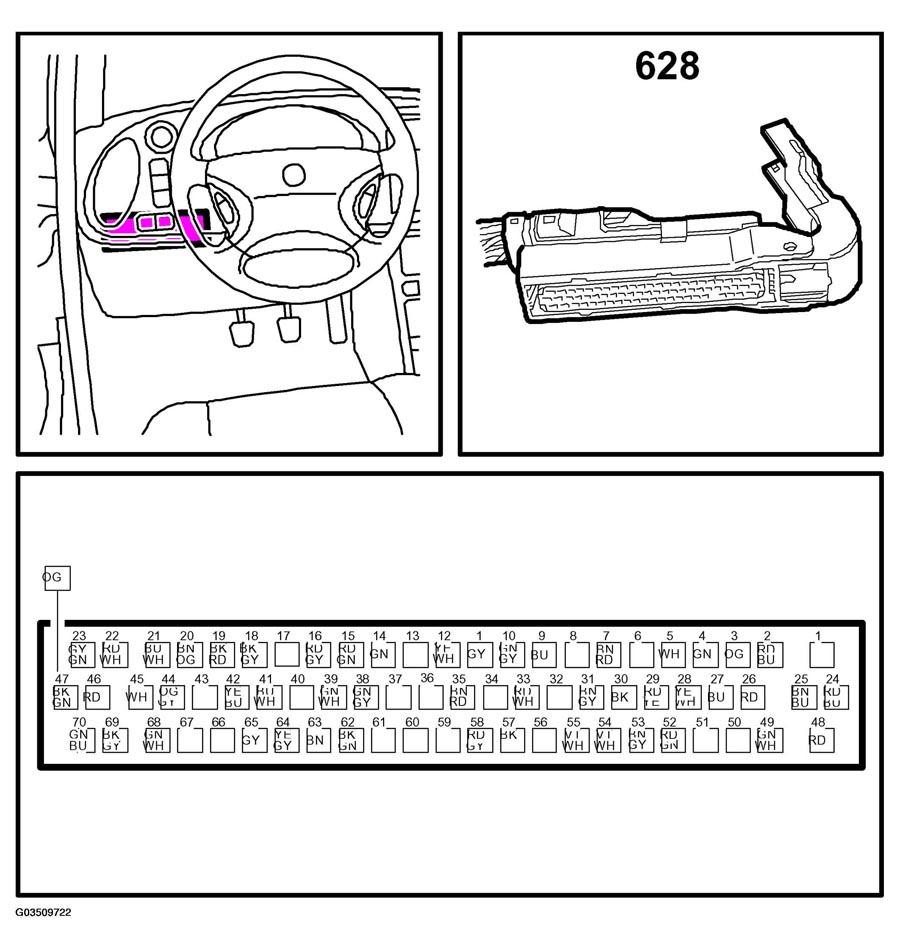

Fig 1: Identifying Control module, DICE (628) LHD
G03509722Courtesy of SAAB-SCANIA OF AMERICA, INC.
