To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

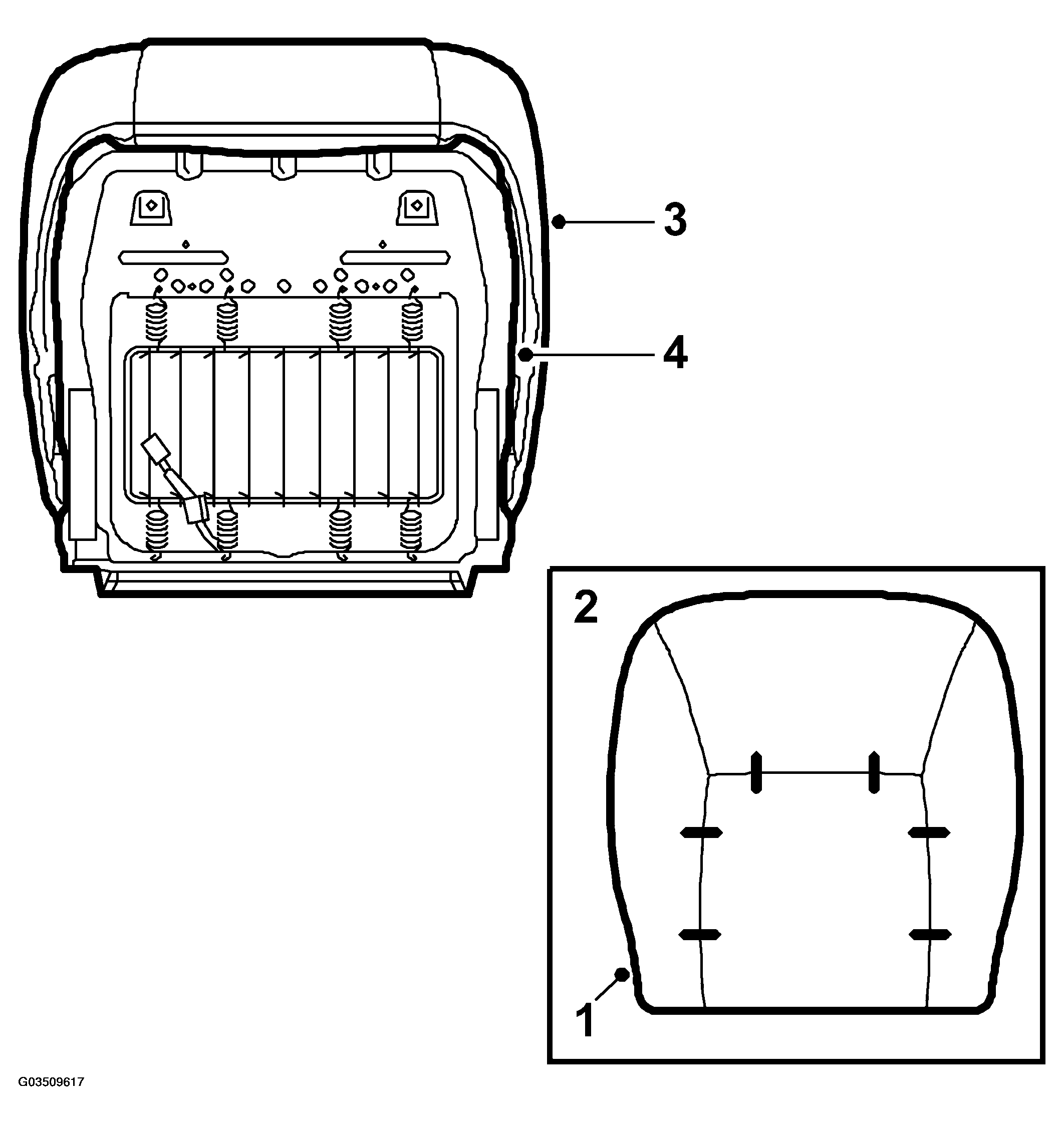

Fig 1: Illustration For Steps 1-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the seat upholstery over the foam cushion.
Fit the staples using the pliers in fitting kit 84 71 062.
Place the seat base on the foam cushion and fit the clamps.
Replace the strip along the edge of the seat base.
Check the fit and that it is secure.
Position the seat and fit the front screws without tightening them.

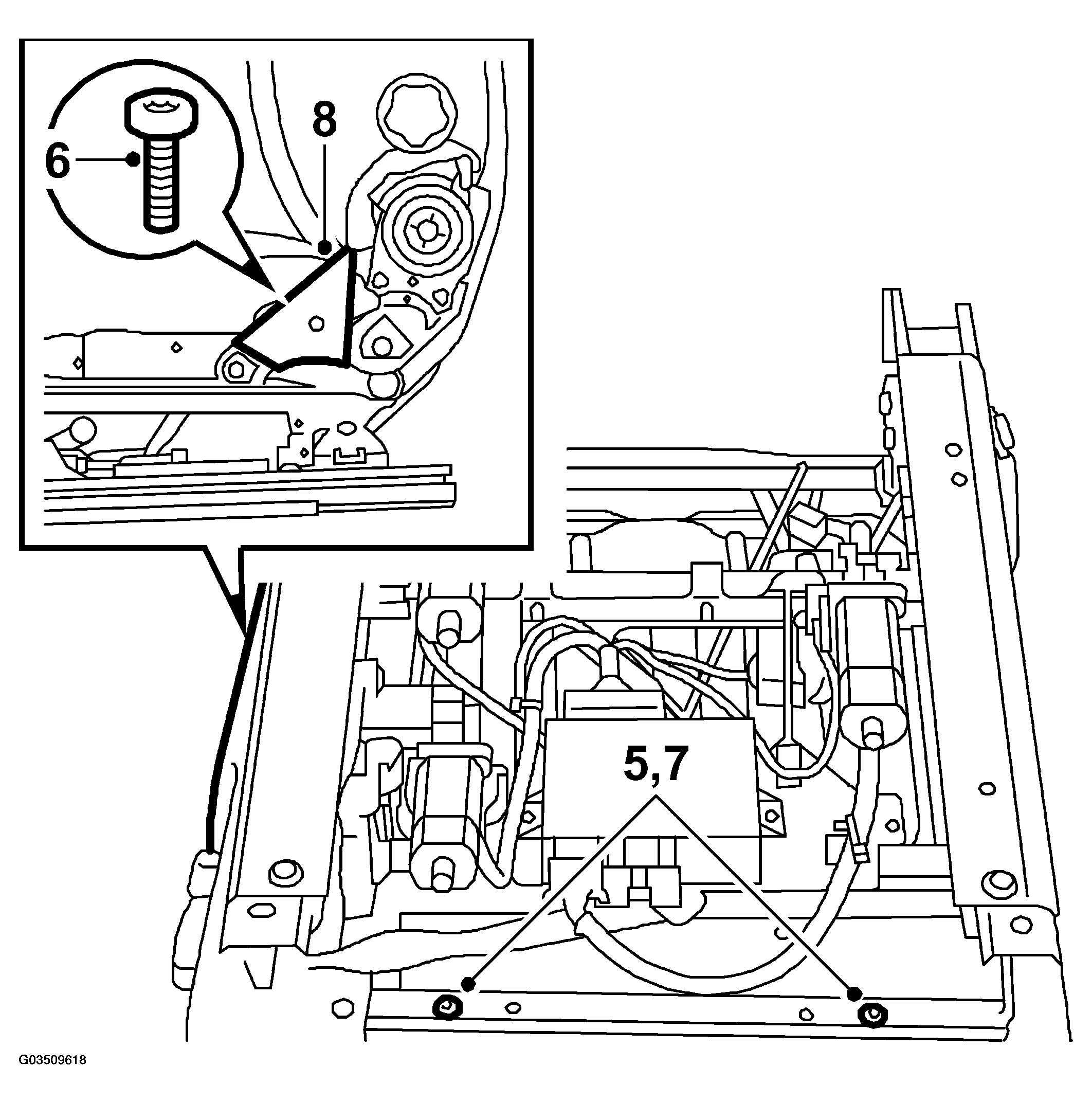

Fig 2: Illustration For Steps 5-8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Place the screws in the back of the seat cushion, 2 screws.
Tighten the screws in the front of the seat cushion.
5D: Fit the plastic covers on each side of the backrest joint.
Plug in the connector and attach a new cable tie.

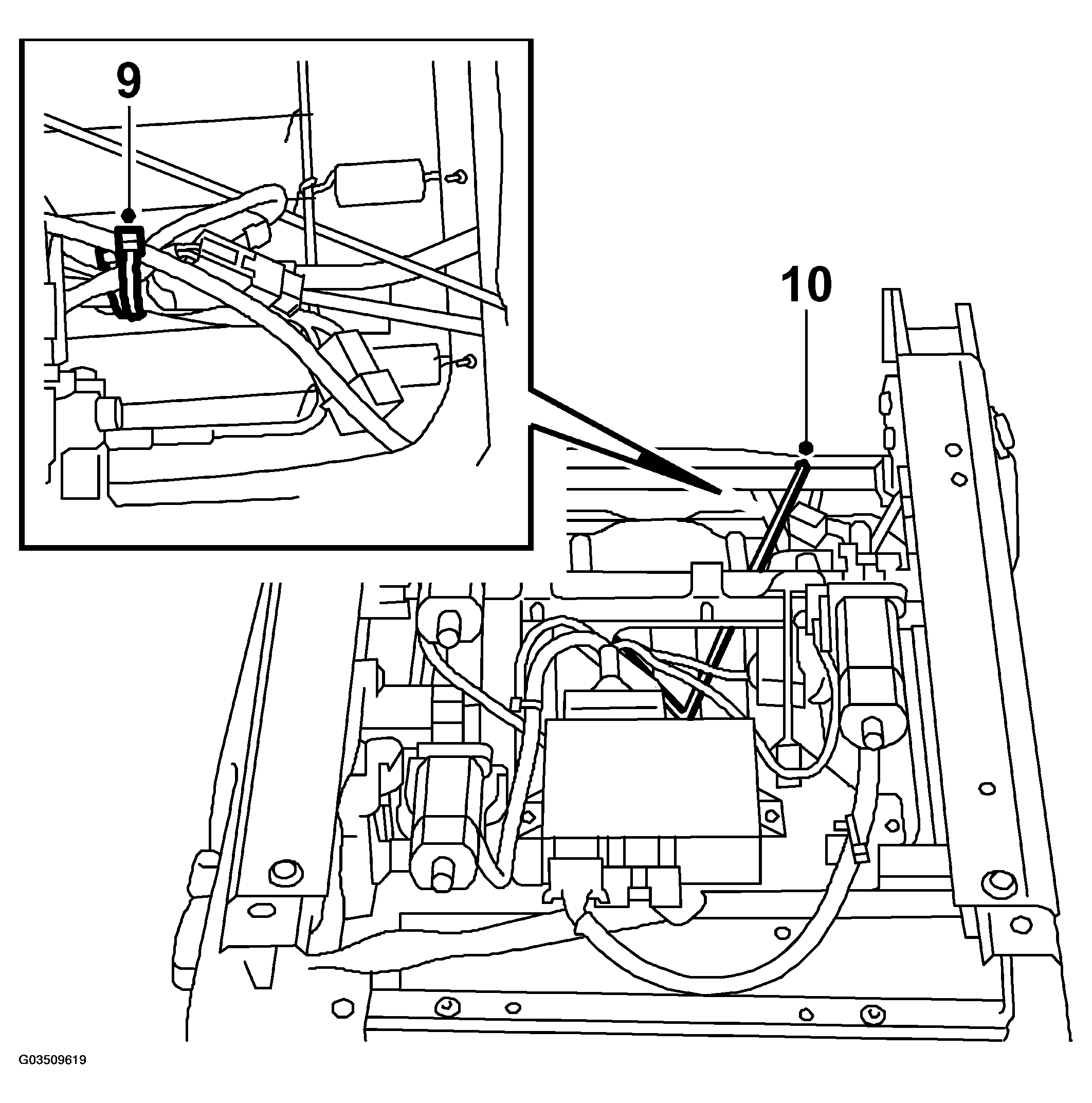

Fig 3: Illustration For Steps 9-10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fasten the straps on the bottom of the backrest upholstery under the seat cushion.
Fit the seat belt mounting where applicable.

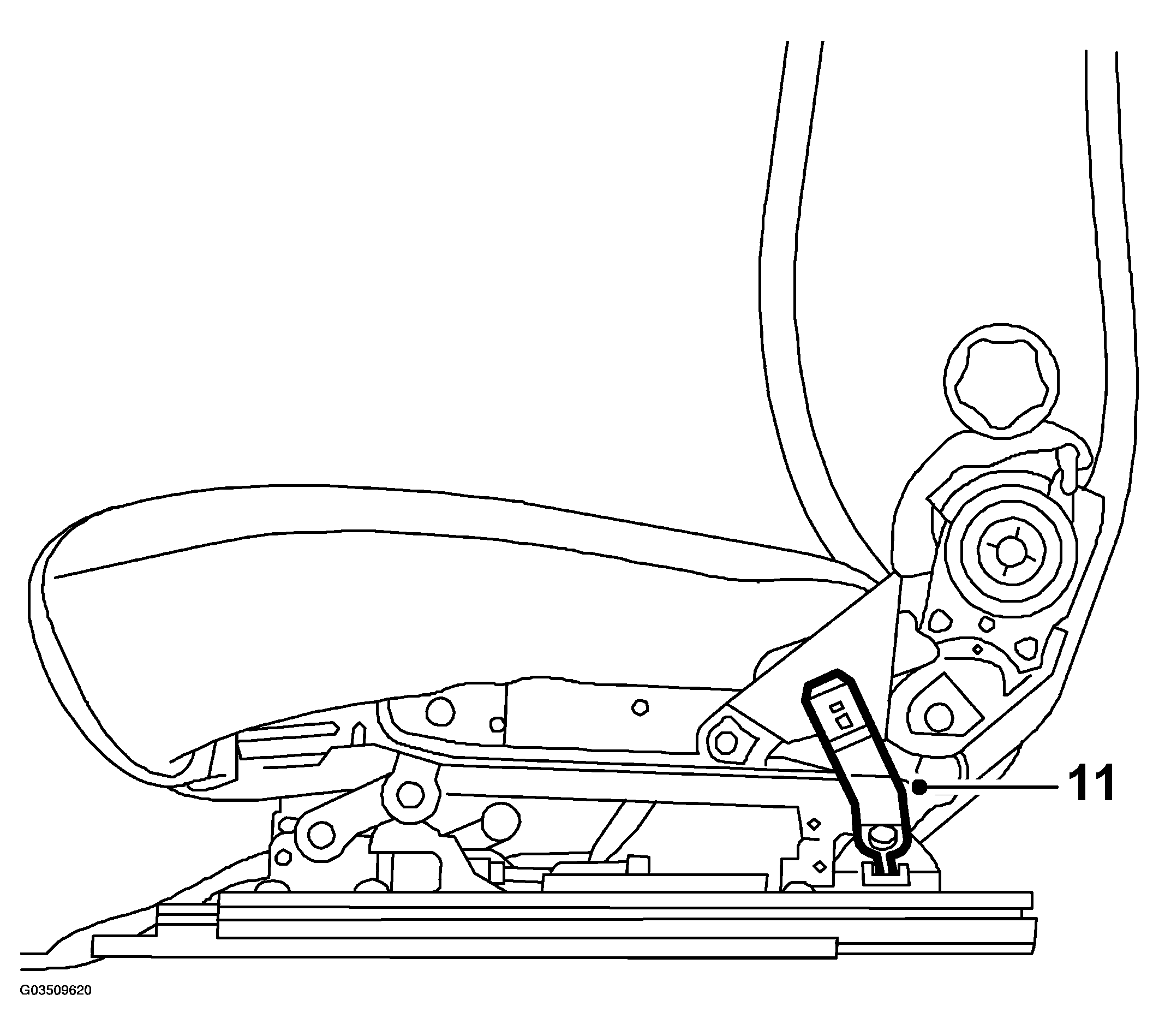

Fig 4: Illustration For Step 11
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 33 N.m

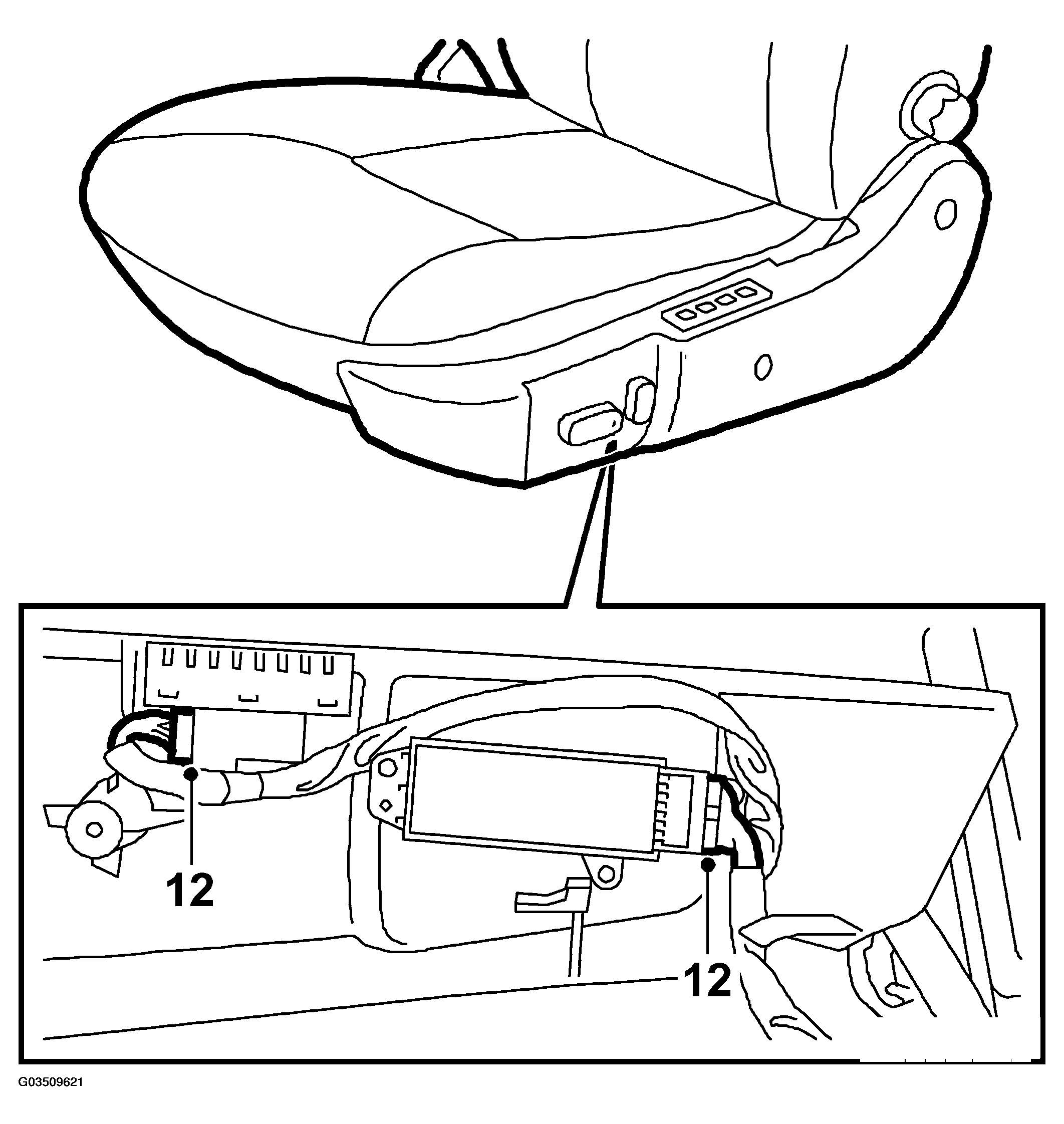

Electrically adjustable seat: First fit the connector to the switch and any memory buttons on the seat panel.

Fig 5: Illustration For Step 12
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the seat panel by sliding it into its groove and pressing over the rear edge.

Fasten the seat side panel, 3 screws and 2 caps.

Electrically operated seat: Fit the protector on the front bolt.
Manual seat: Fit the handle for the height adjustment and the backrest recliner knob.

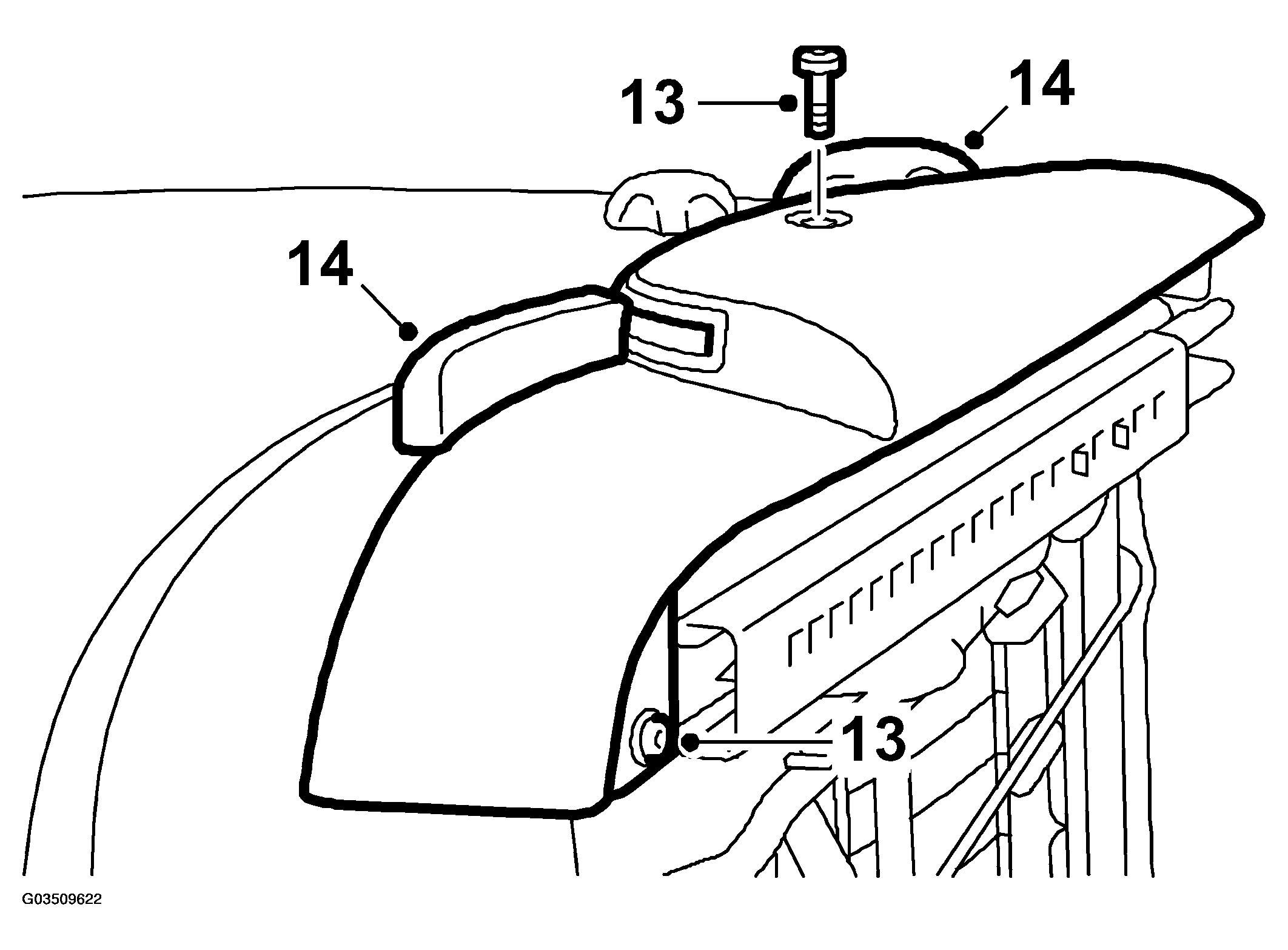

Fig 6: Illustration For Steps 13-14
Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: If necessary, the backrest upholstery can be detached to make it easier to position the backrest recline spindle. Make sure the backrest upholstery does not get stuck between the side panel and the backrest. The upholster must side panel the spindle.
Fit the front seat into the car.
