To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

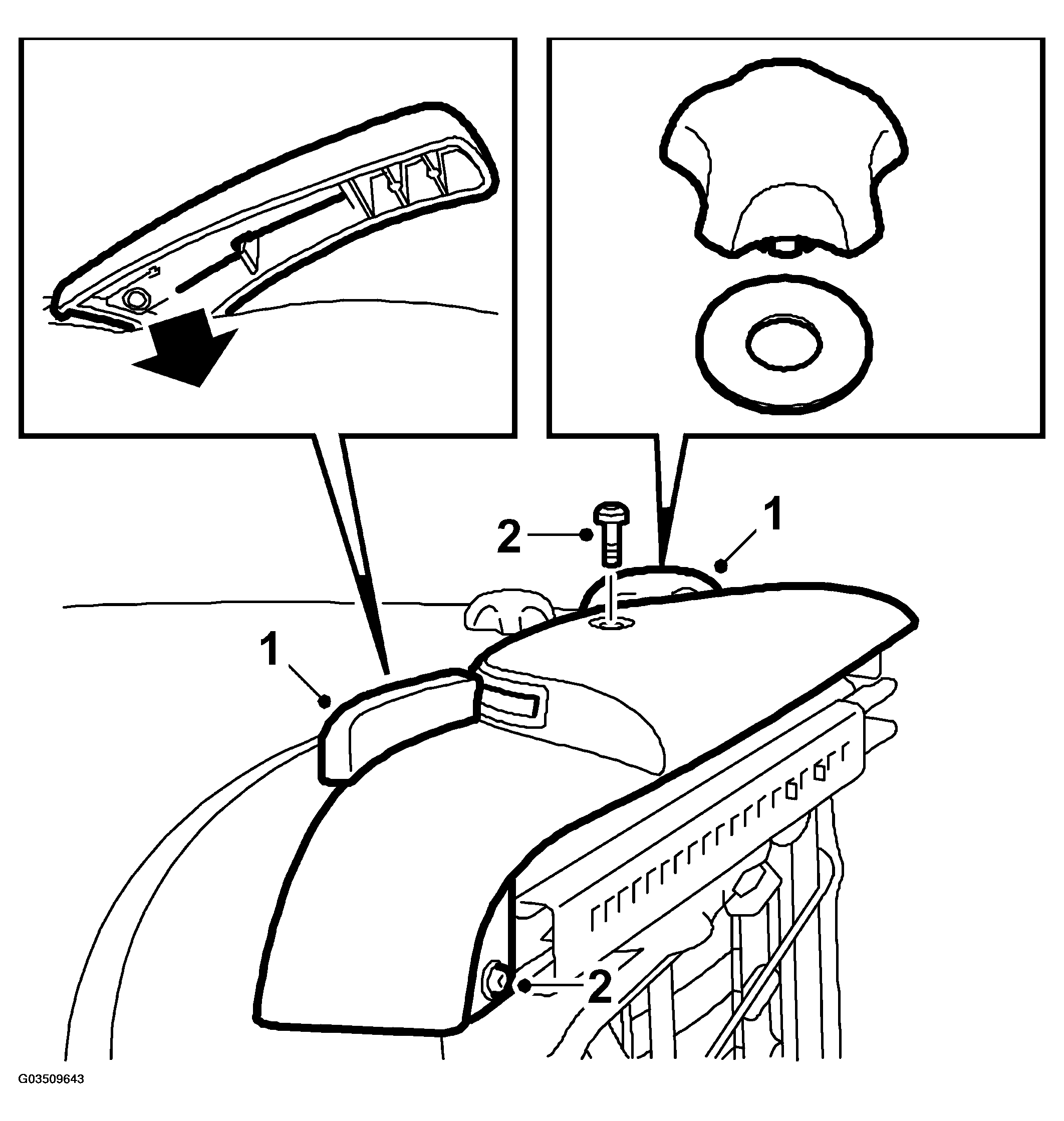

Fig 1: Illustration For Steps 1-2
G03509643Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Manual seat:  Remove the handle for the height adjustment and the backrest recliner knob.
  2. Remove the seat side panel, 2 caps and 3 screws. Lift the back of the side panel and pull it forwards.
    NOTE: Electrically adjustable seat:  The front bolt has a protector on its tip. Retain this protector as it must be fitted to the bolt to prevent it from chafing against electrical wiring.
  3. Electrically adjustable front seat:  Detach the connector for the switch and any memory buttons.

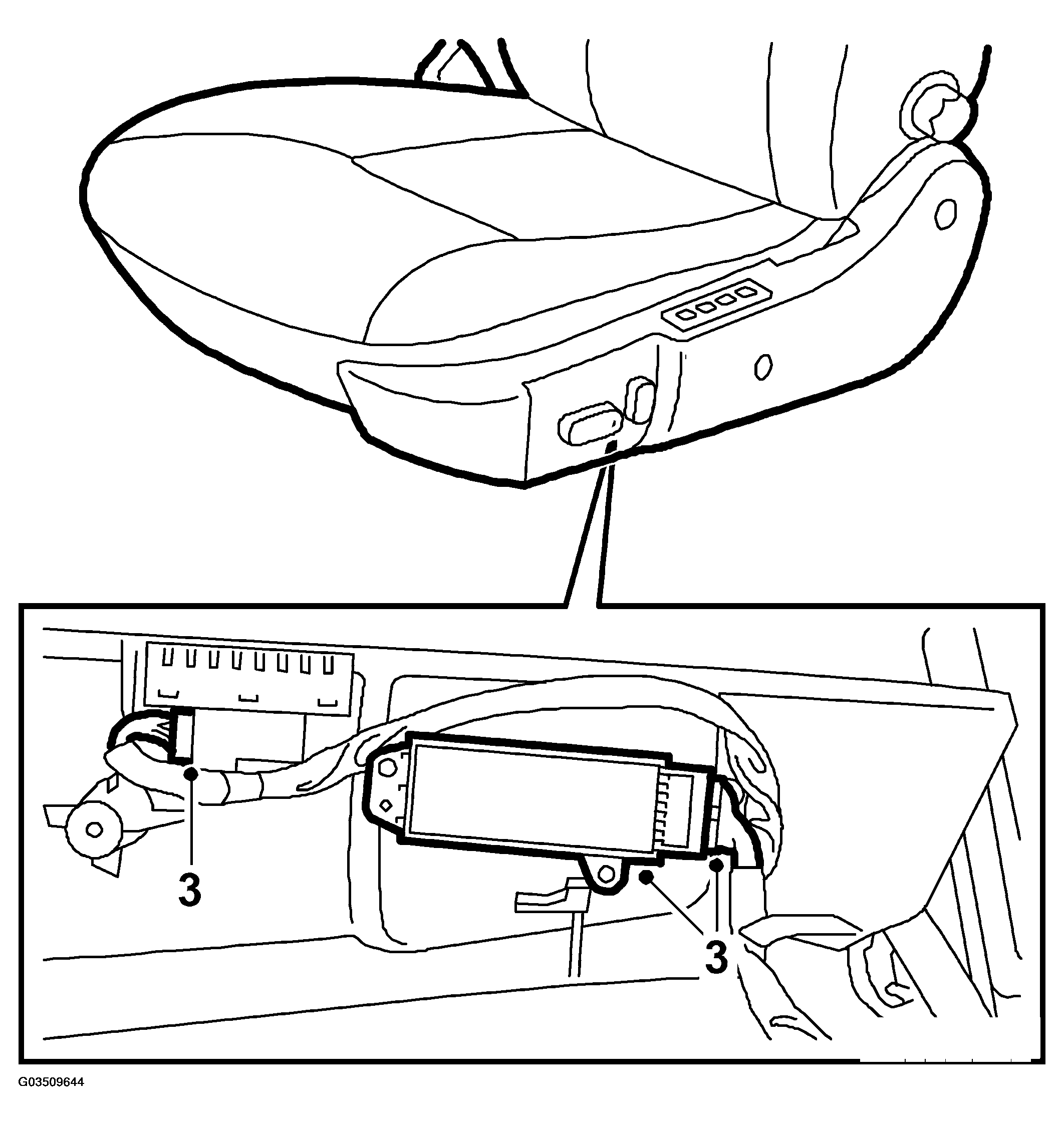

    Fig 2: Illustration For Step 3
    G03509644Courtesy of SAAB-SCANIA OF AMERICA, INC.
