To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

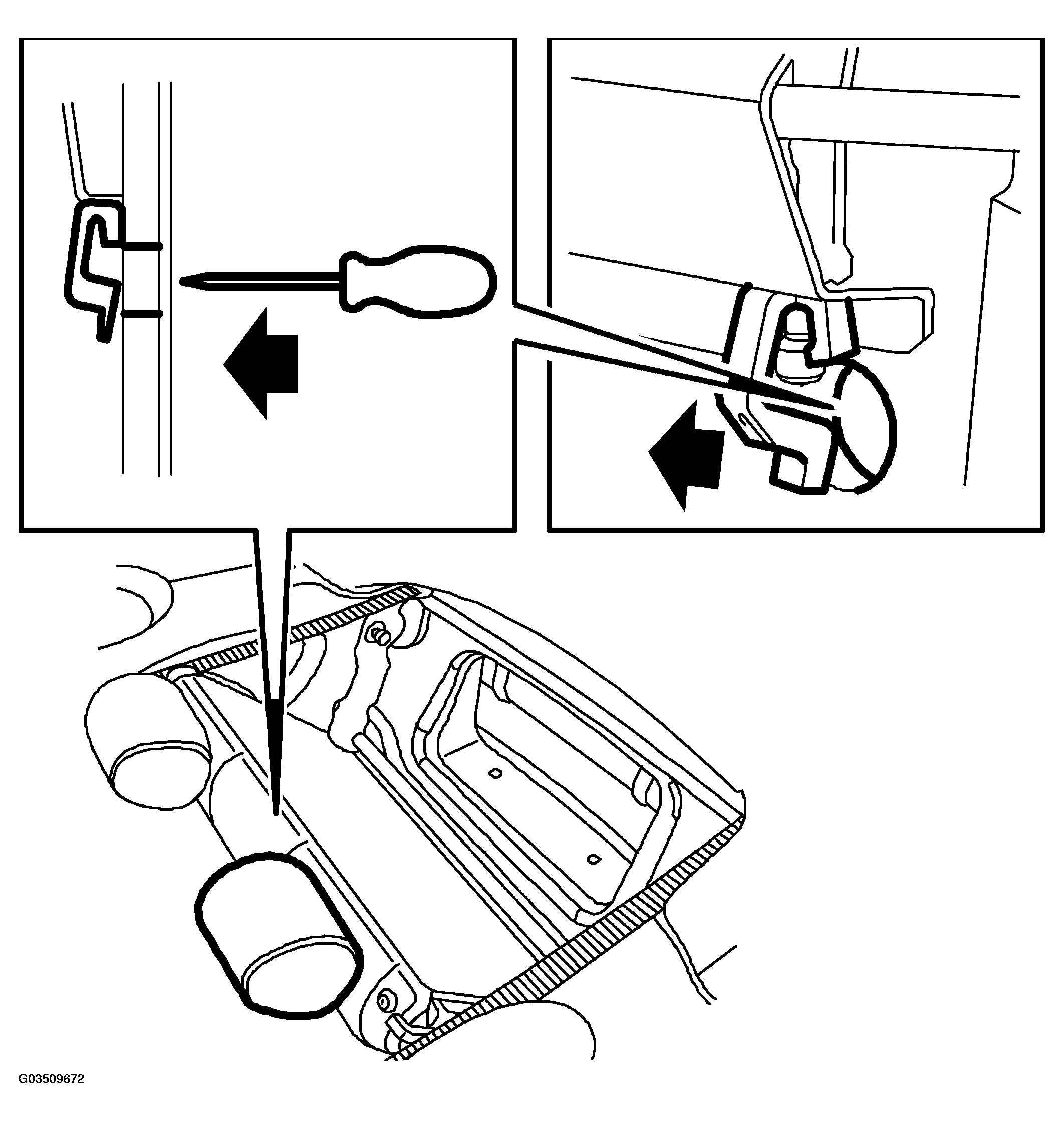

Fig 1: Identifying Rear Head Restraints, CV
G03509672Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Release the head restraint lock by pressing a small screw driver through the upholstery on the cushion, by the round holes inside the upholstery. Use a small and narrow screwdriver so no marks are left on the upholstery.
  2. Pull up the head restraints.
