To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

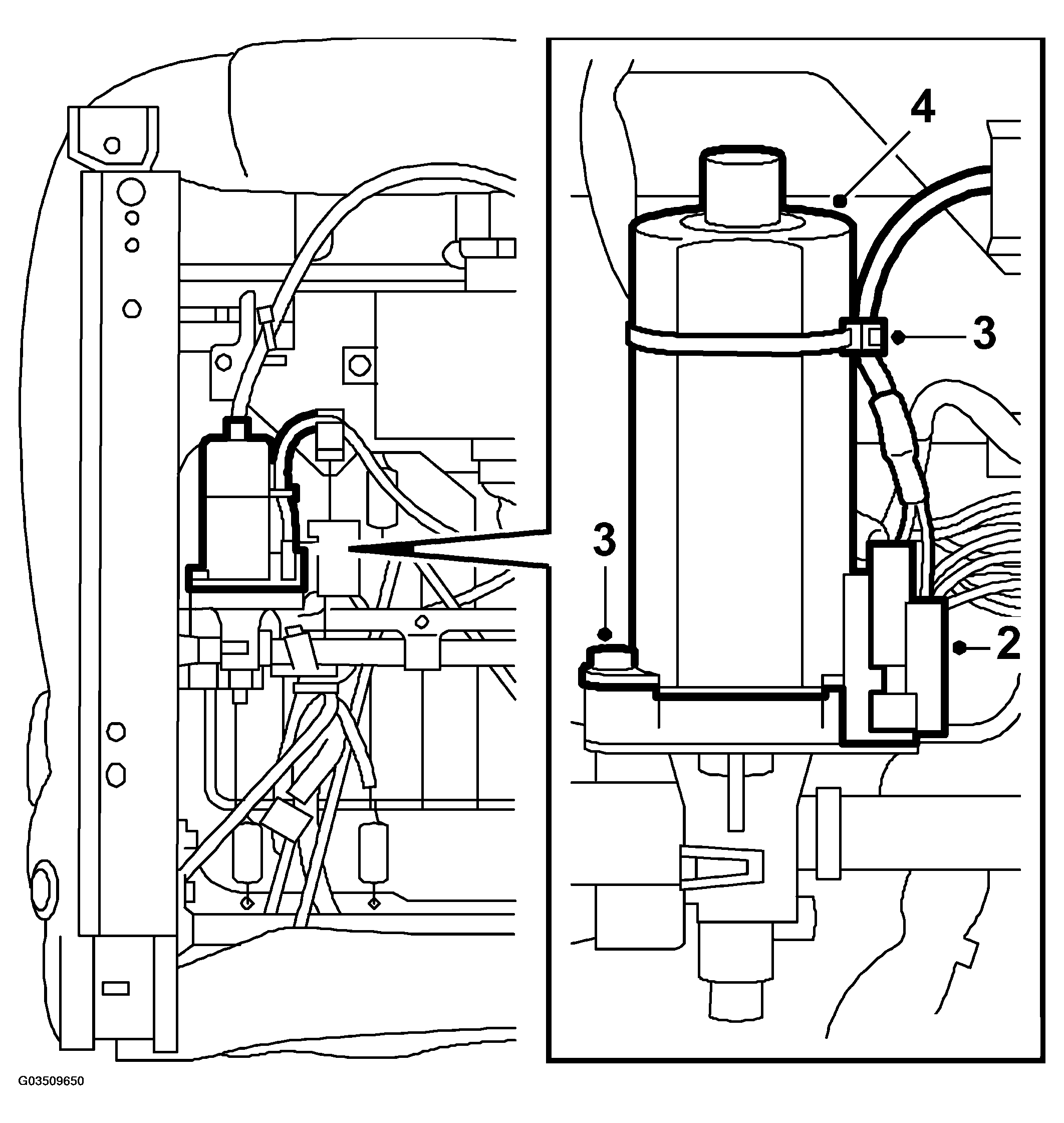

Fig 1: Illustration For Steps 2-4
G03509650Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front seat from the car, see .
  2. Unplug the connector for the legroom adjustment motor.
  3. Remove the motor for the legroom adjustment, 2 screws and cable tie.
  4. Lift the motor off the gear wheel.
