To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

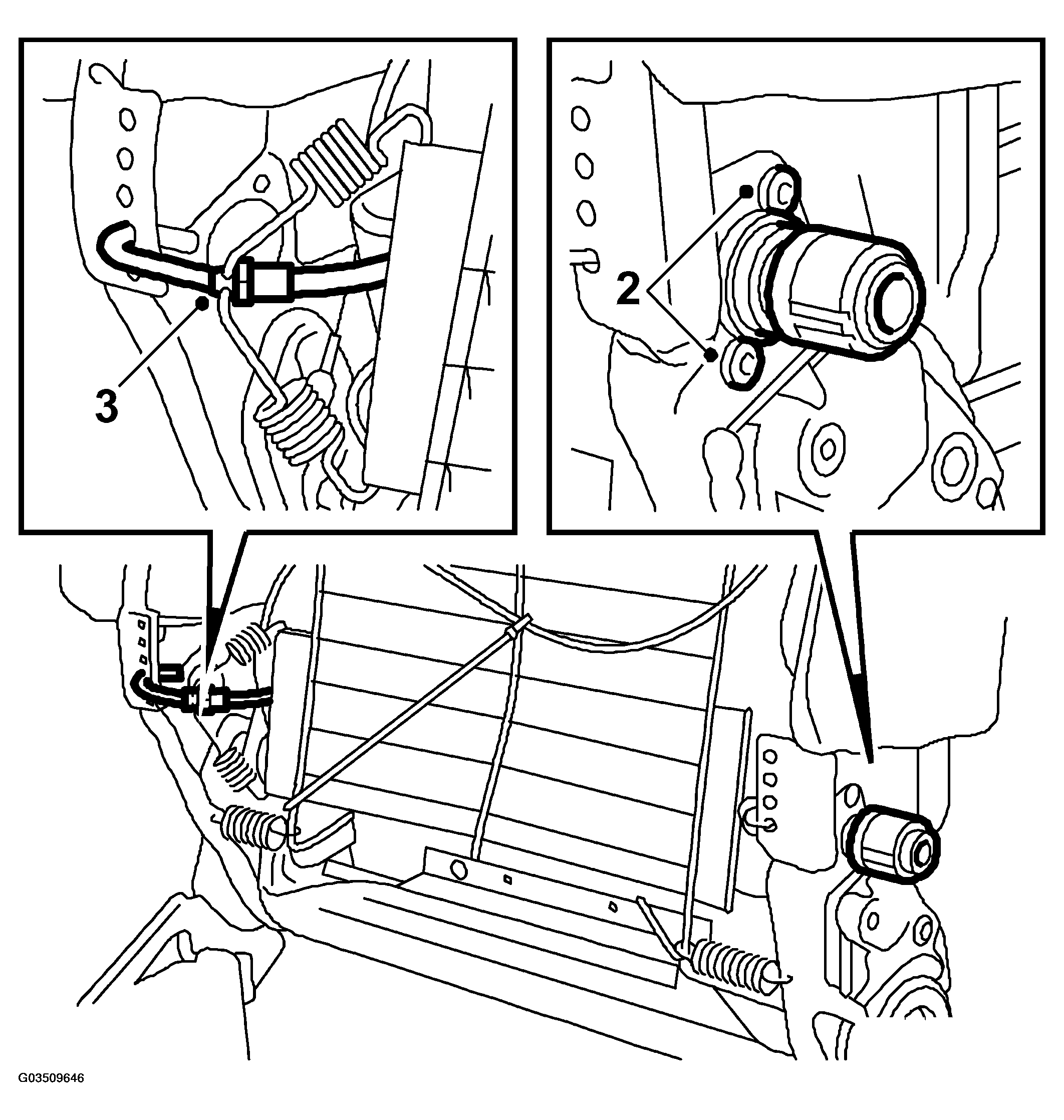

Fig 1: Illustration For Steps 2-3
G03509646Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the backrest upholstery, see .

    There is no need to remove the head restraints, staples or any connectors for the backrest adjustment.

  2. Remove the lumbar support mechanism, 2 screws.
  3. Detach the hook holding the wire on the opposite side.

    Undo the clip holding the wire.

  4. Lift out the lumbar support mechanism.
