To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat  from the car.
  2. Remove the height adjustment lever and backrest adjustment knob under the frame at the front.

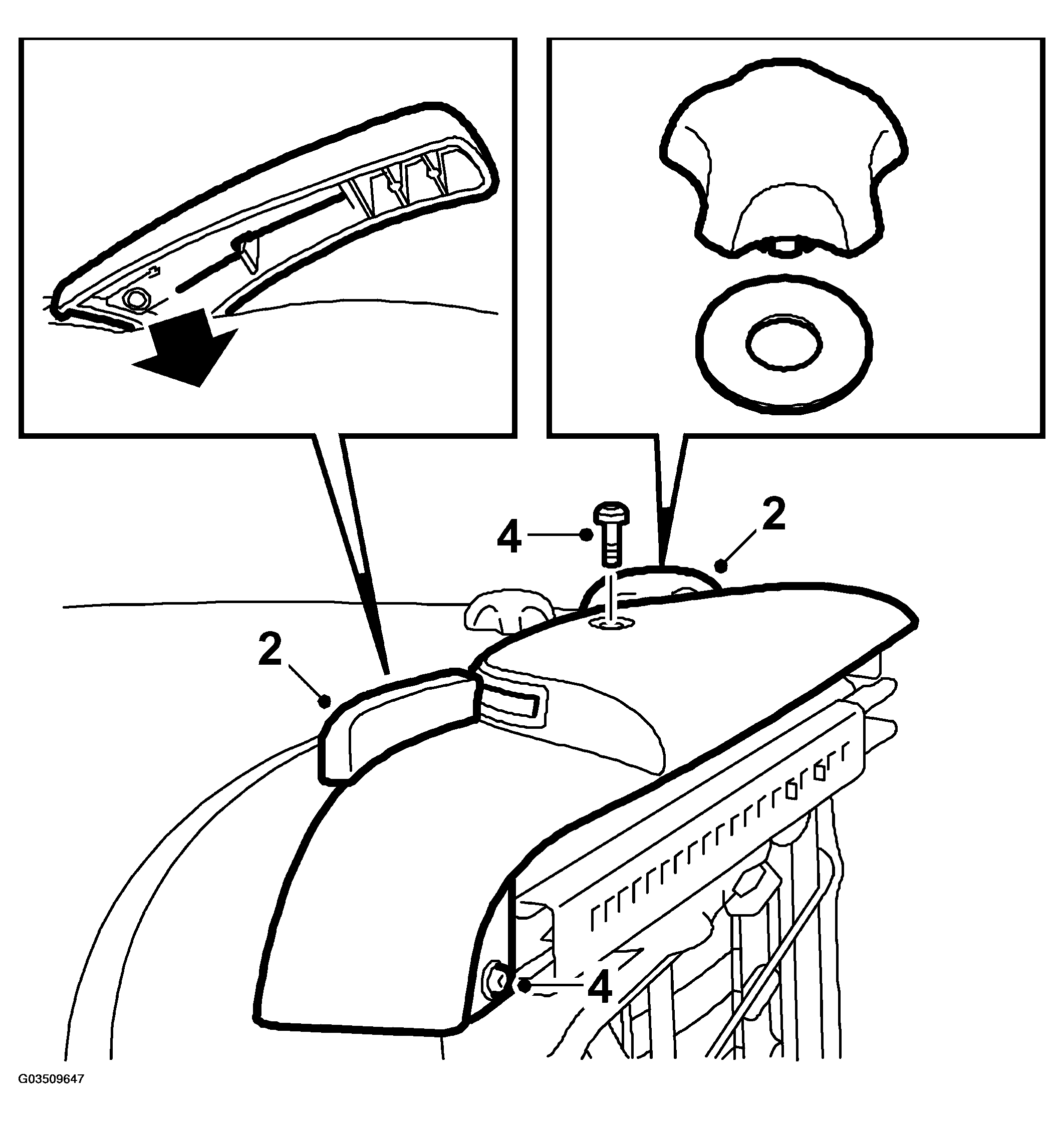

    Fig 1: Illustration For Steps 2 & 4
    G03509647Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Raise the seat to maximum height.
  4. Remove the upper seat side panel, 2 caps and 3 screws.

    Electrically adjustable seat:  The front bolt has a protector on its tip. Retain this protector as it must be fitted to the bolt to prevent it from chafing against electrical wiring.

    Lift the back of the side panel and pull it forwards.

  5. Remove the height adjustment mechanism from the frame, 4 screws.

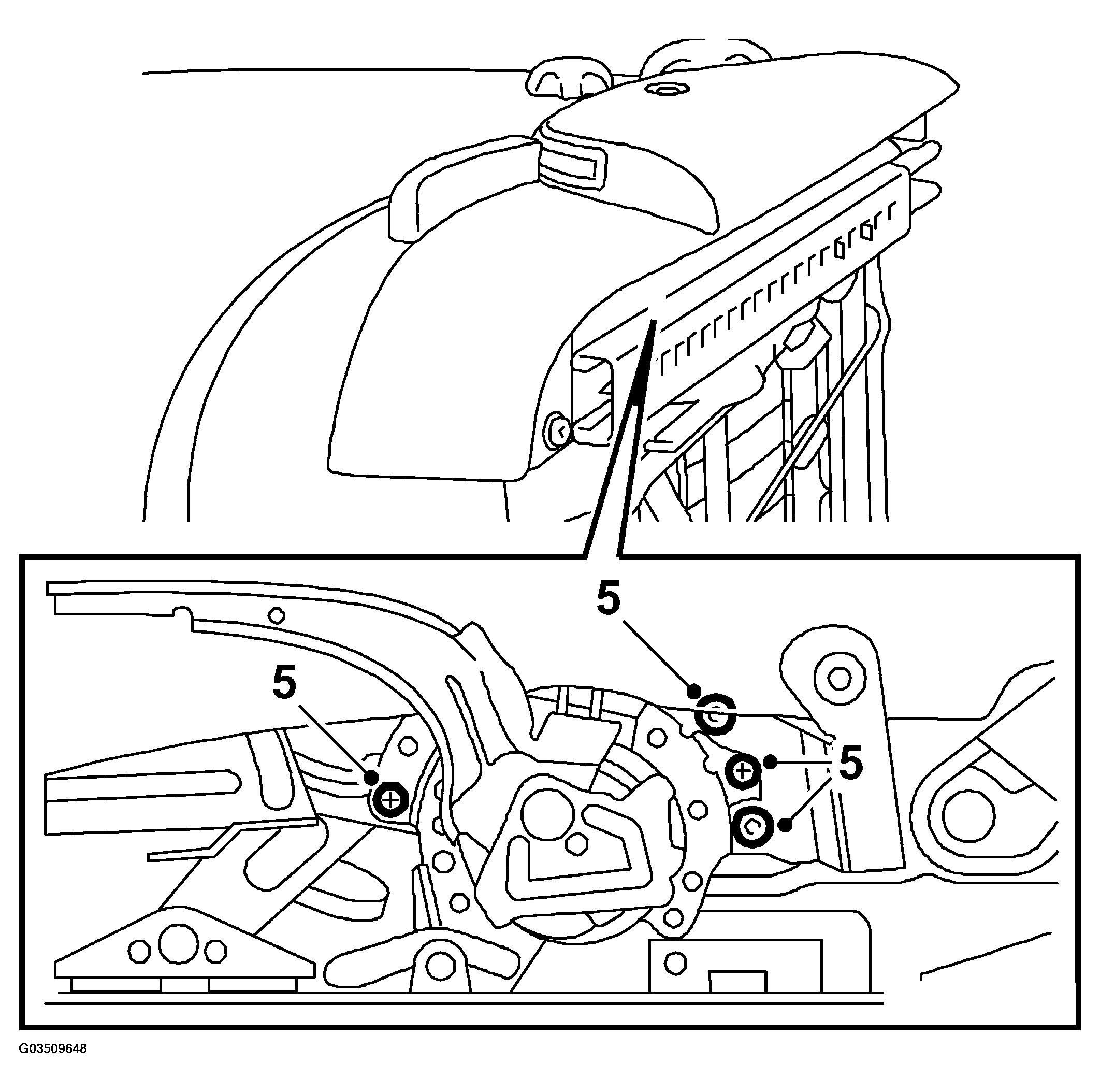

    Fig 2: Illustration For Step 5
    G03509648Courtesy of SAAB-SCANIA OF AMERICA, INC.
