To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

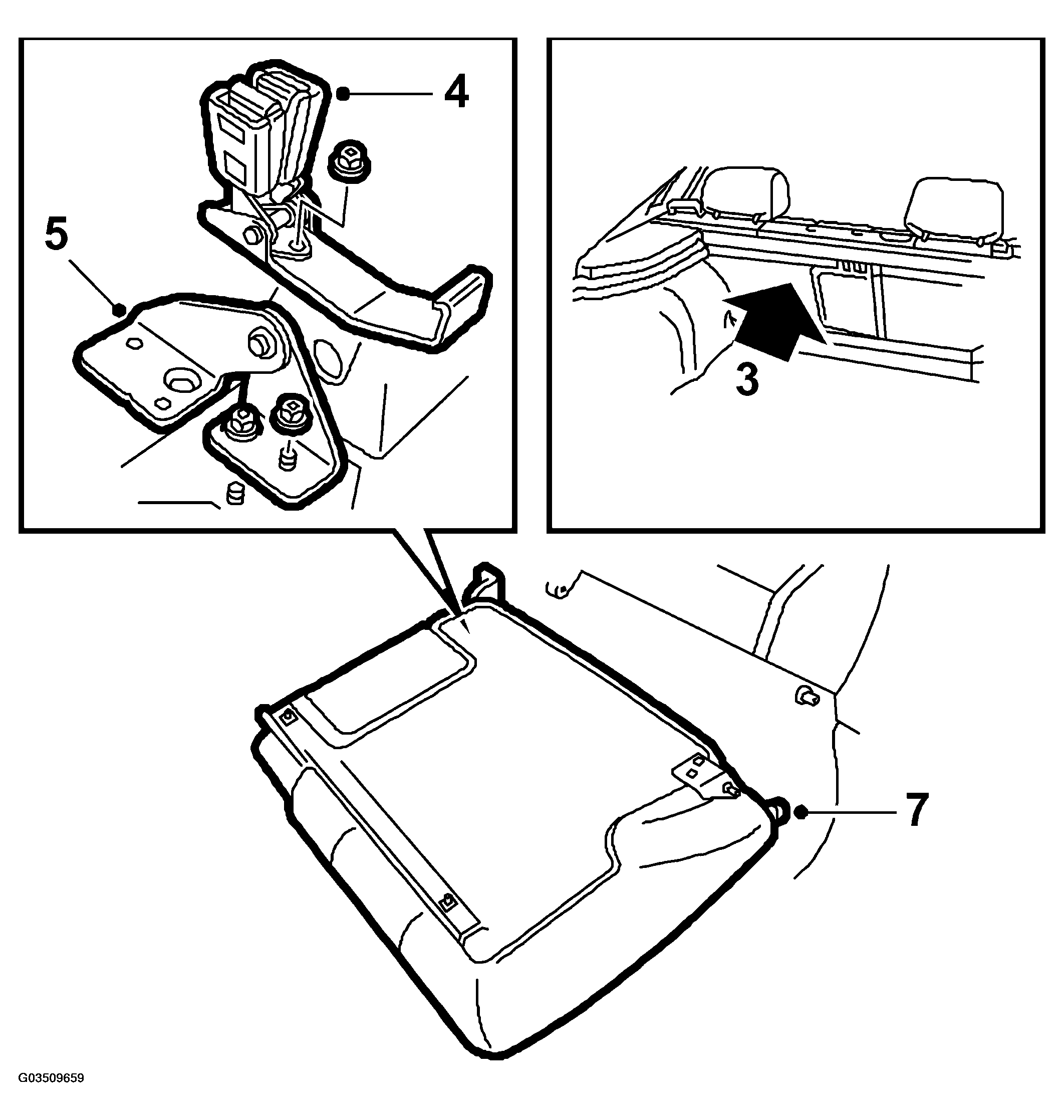

Fig 1: Illustration For Steps 3, 4, 5 & 7
G03509659Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the 40 per cent part, .
  2. Release the backrest from the seat-belt member.
  3. Fold forward the backrest.
  4. Remove the center seat-belt mounting to access the right-hand backrest mounting.
  5. Remove the right-hand backrest mounting.
  6. Pull out the free end of the backrest and remove the joint pin from its mounting by the wheel housing.
  7. Detach the upholstery tensioner and lift out the backrest.
