To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

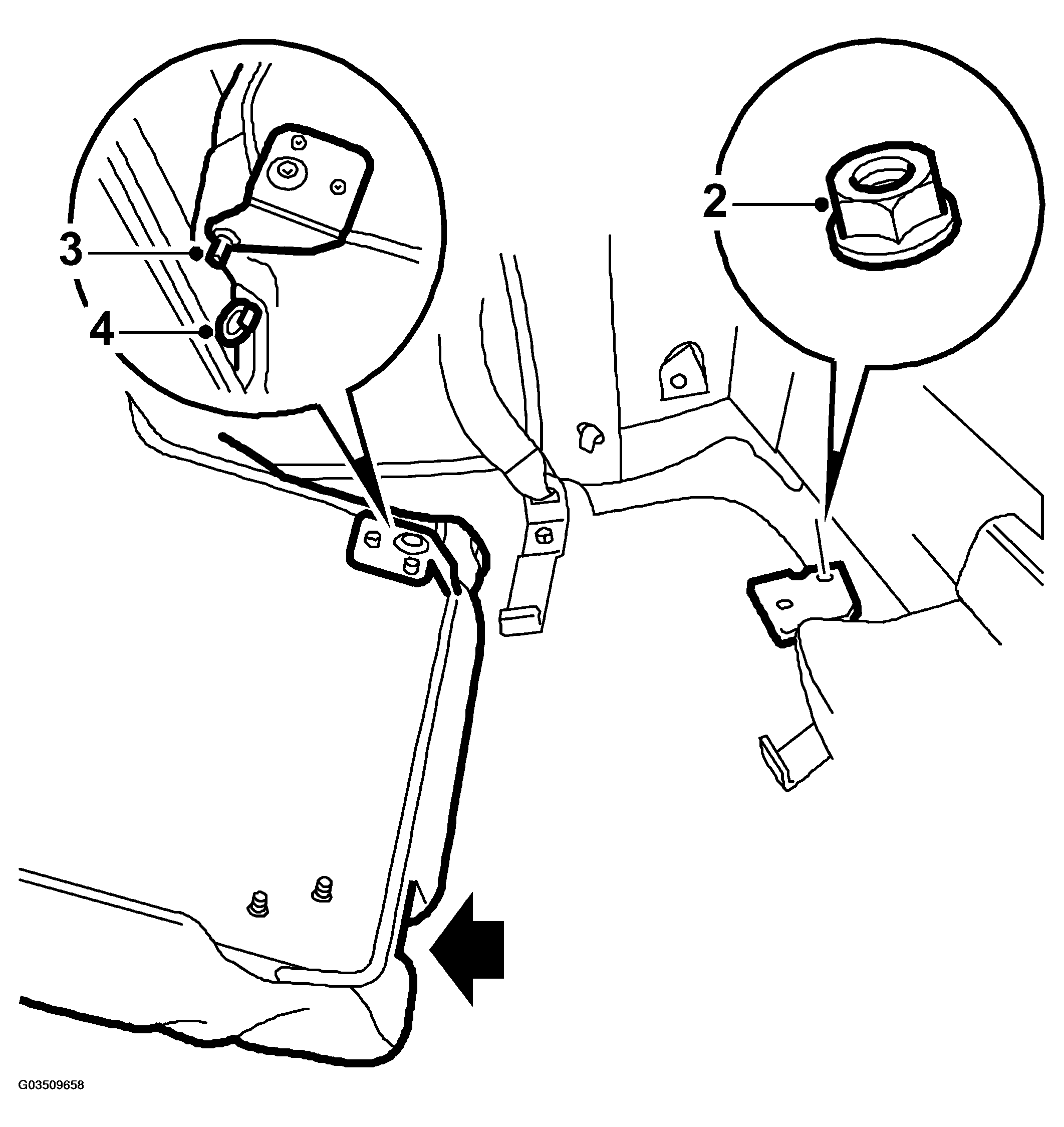

Fig 1: Illustration For Steps 2-4
G03509658Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Release the backrest from the seat-belt member and fold it forwards.
  2. Undo the bracket on the long load opening.
  3. Pull the backrest away from the mounting by the long load opening and pull out the joint pin at the wheel housing.
  4. Detach the upholstery tensioner and lift out the backrest.
