To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

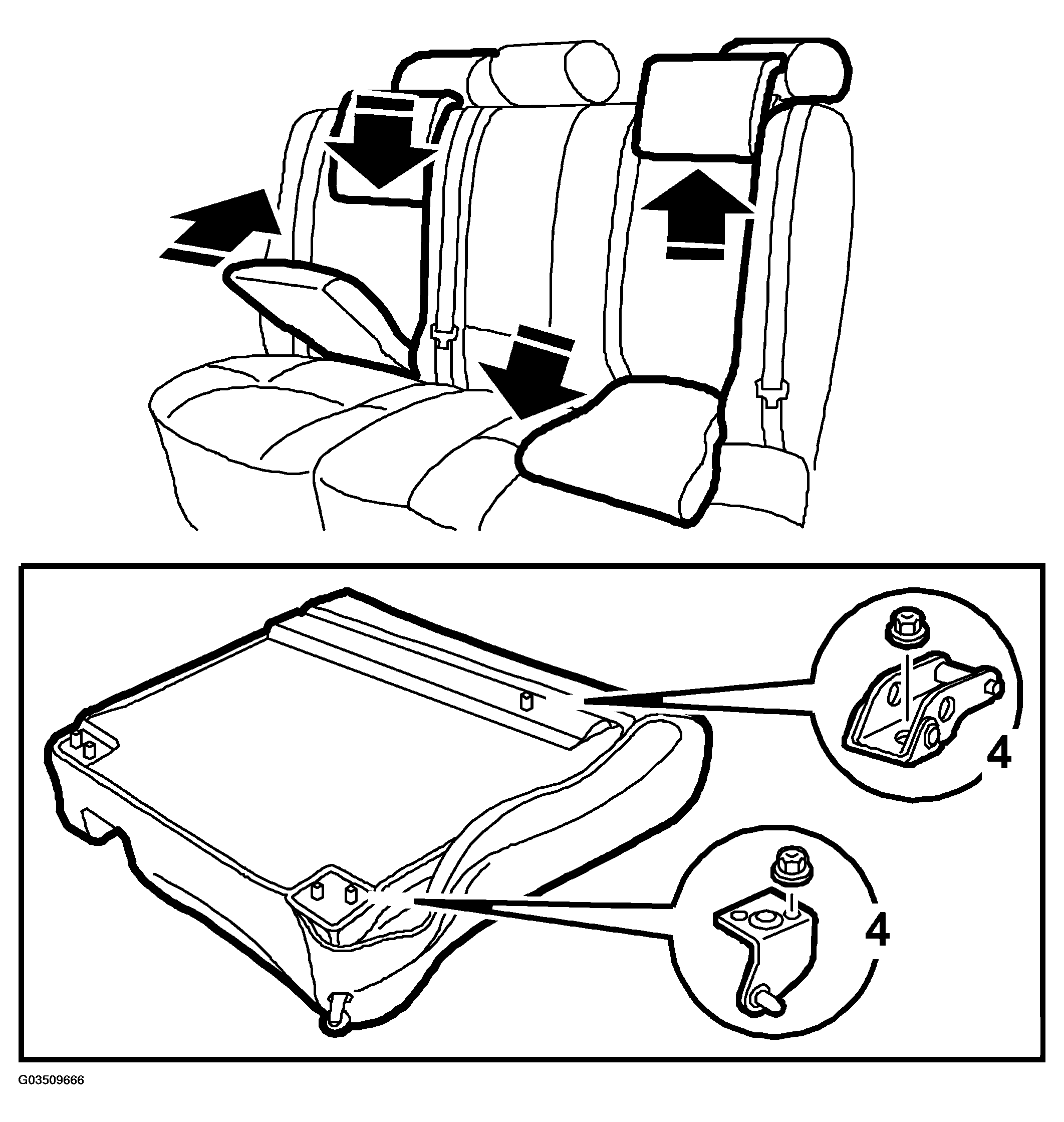

Fig 1: Illustration For Step 4
G03509666Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the 40 per cent backrest, .
  2. Remove the 60 per cent backrest, .
  3. Place the cushions on a workbench with protective covering.
  4. 40-percent backrest:  Remove the lock brace and the right-hand joint from the backrest.

    60-percent backrest:  Remove the left-hand joint.

  5. Detach the strip securing the upholstery to the rear section.

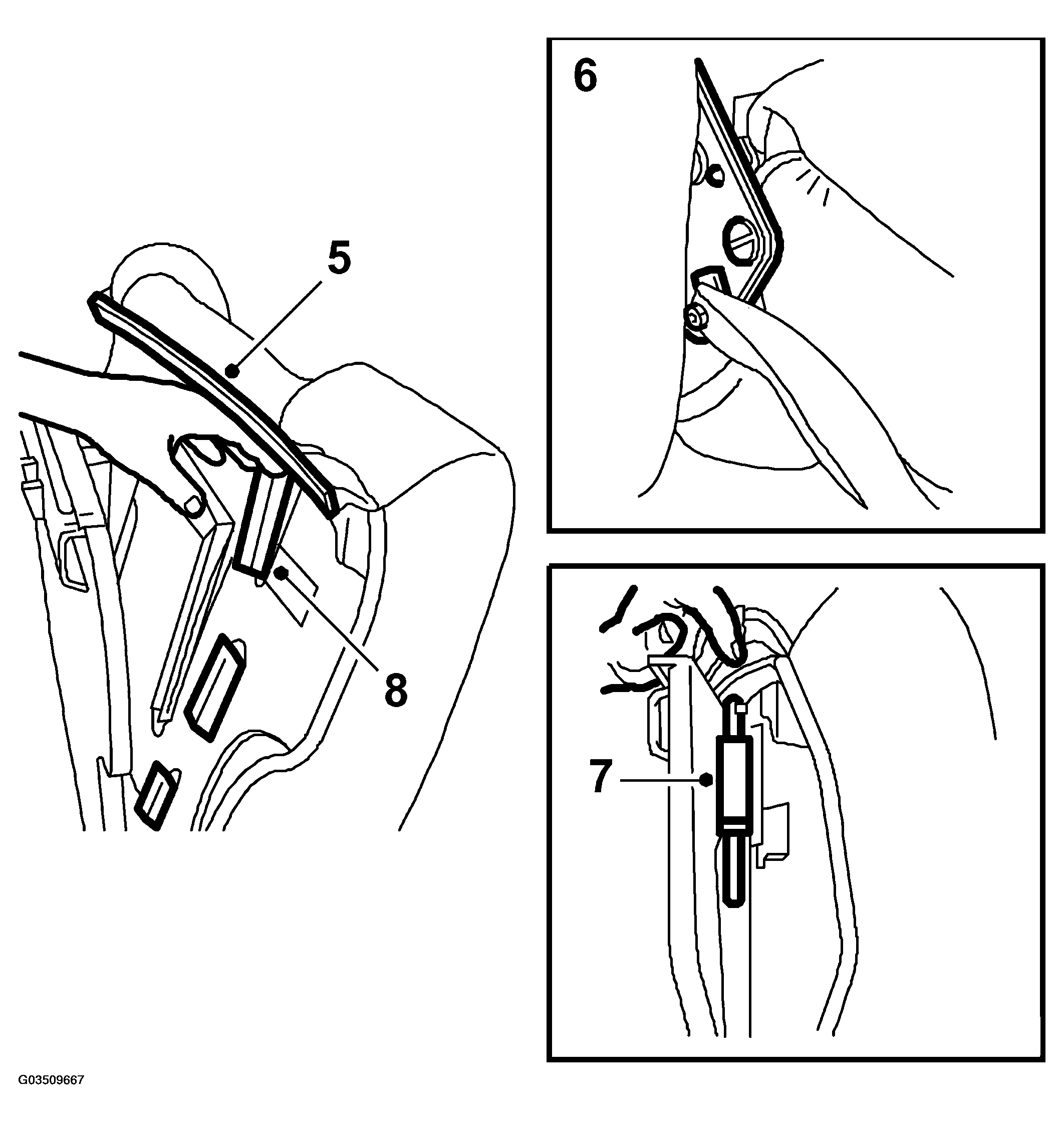

    Fig 2: Illustration For Steps 5-8
    G03509667Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the bottom of the child seat by unscrewing the seat joint.
  7. Remove the head restraint by carefully lifting the upholstery with foam padding and pulling out the lock clips (one on each side).
  8. Detach the T-strips securing the upholstery.
