To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

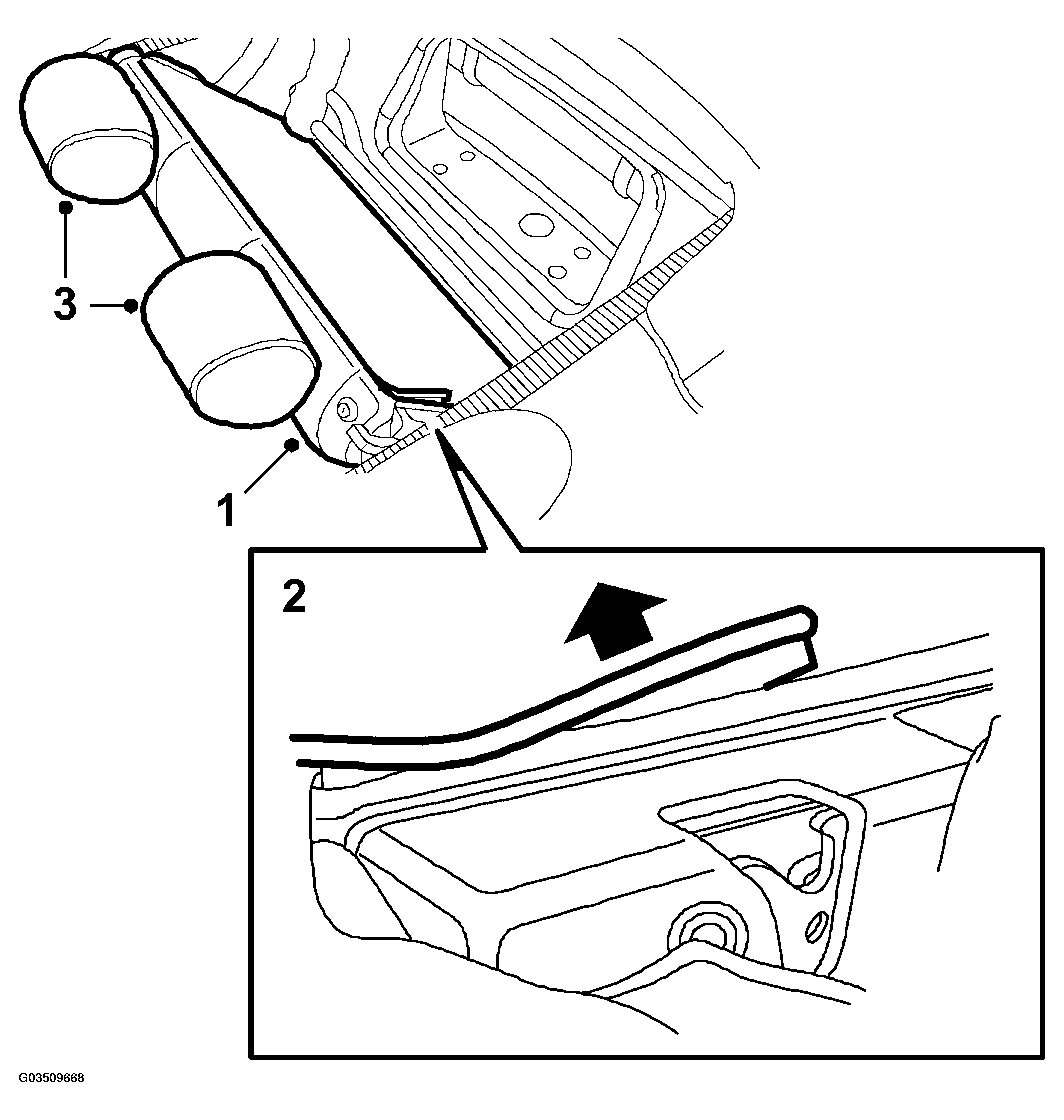

Fig 1: Illustration For Steps 1-3
G03509668Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift out the backrest cushion from the car. See BACKREST CUSHION, CV .
  2. Remove the upholstery from the rear of the backrest cushion.
  3. Remove the head restraints. See REAR HEAD RESTRAINTS, CV .
  4. Loosen the upholstery by the lock.

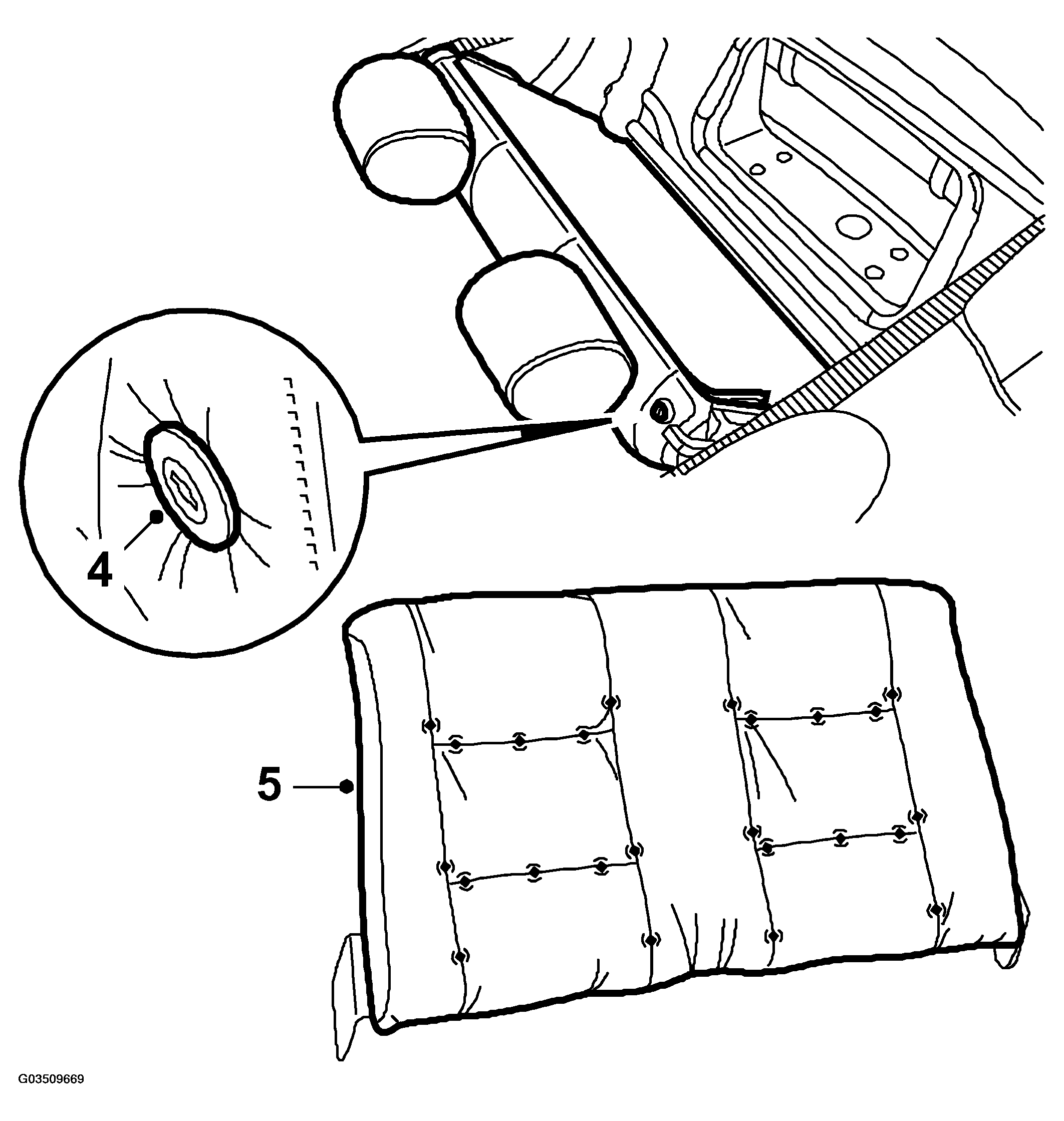

    Fig 2: Illustration For Steps 4-5
    G03509669Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Loosen the upholstery from the staples and lift away the upholstery.
