To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

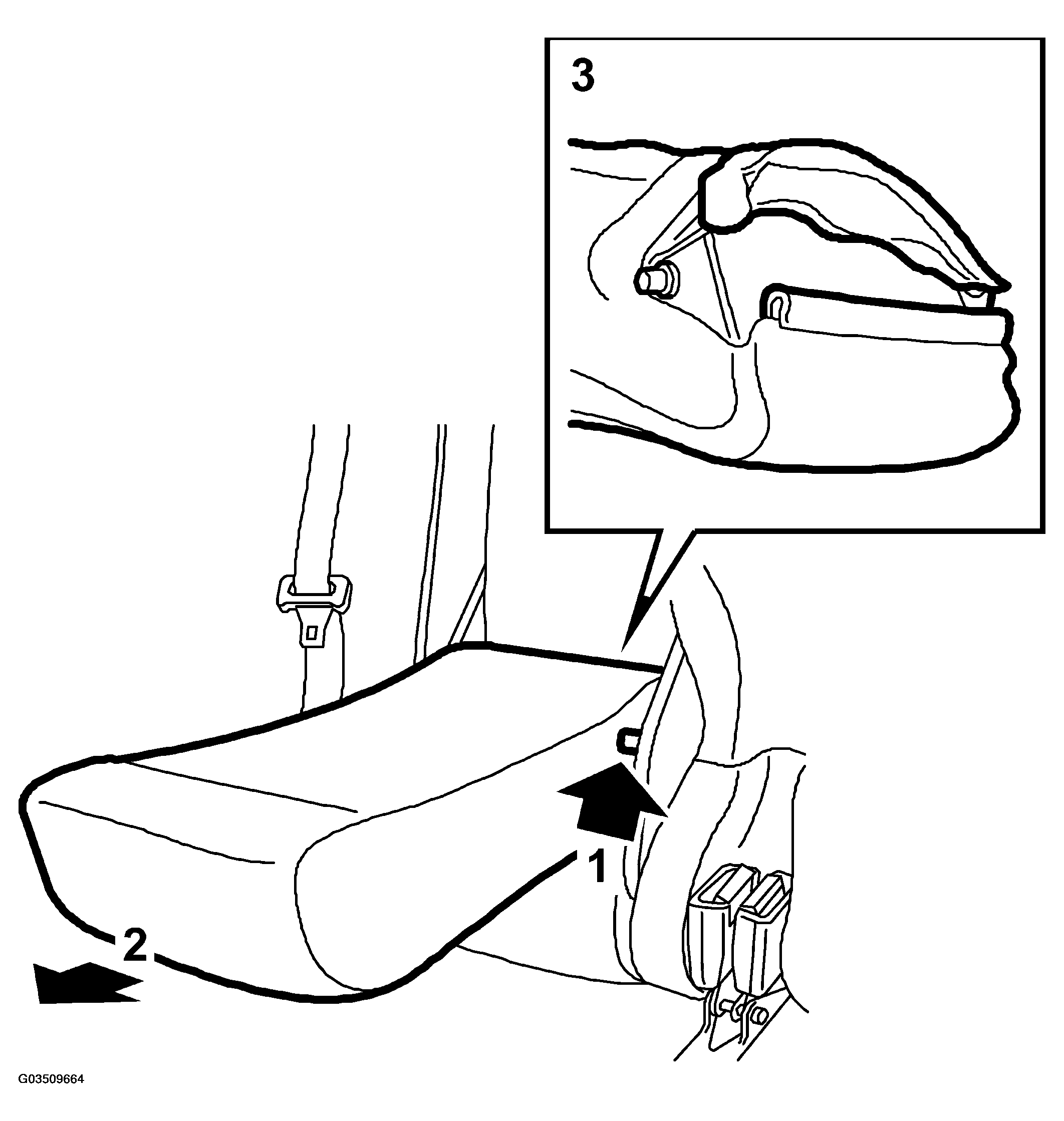

Fig 1: Illustration For Steps 1-3
G03509664Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press out the sides of the long load opening to free the pins securing the armrest. Loosen one side at a time.
  2. Put the armrest on a workbench.
  3. Remove the upholstery by undoing the fastening at the back and pulling the upholstery from the armrest.
  4. Remove the backrest completely.

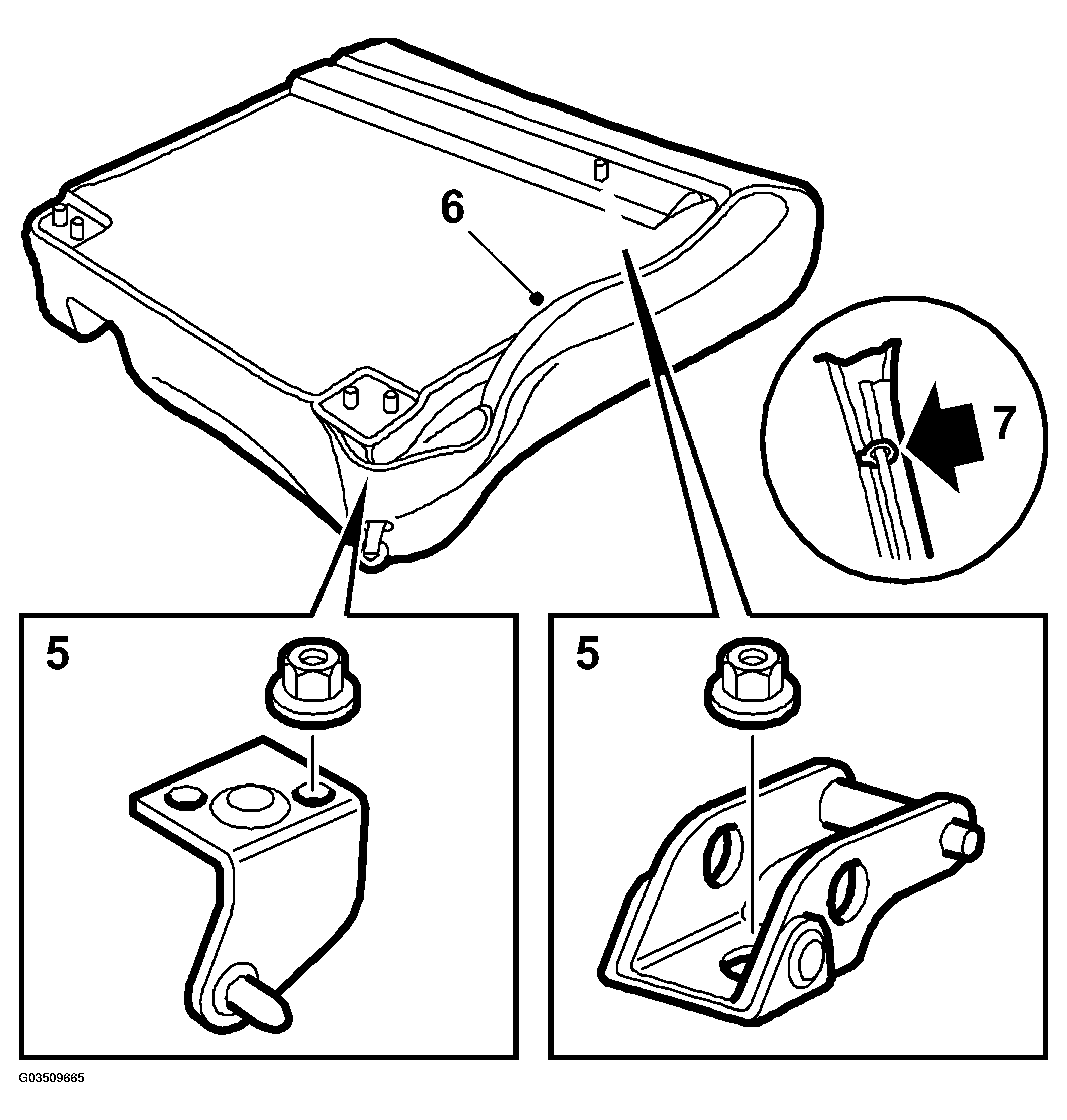

    Fig 2: Illustration For Steps 5-6
    G03509665Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Place the backrest face down on a workbench.

    40-percent part:  Remove the lock brace and joint.

    60-percent part:  Remove the joint.

  6. Detach the upholstery and padding from the bottom by lifting the fastening strip and removing the upholstery and padding.
  7. Detach the upholstery by cutting the staples.
