To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold forward the backrest.

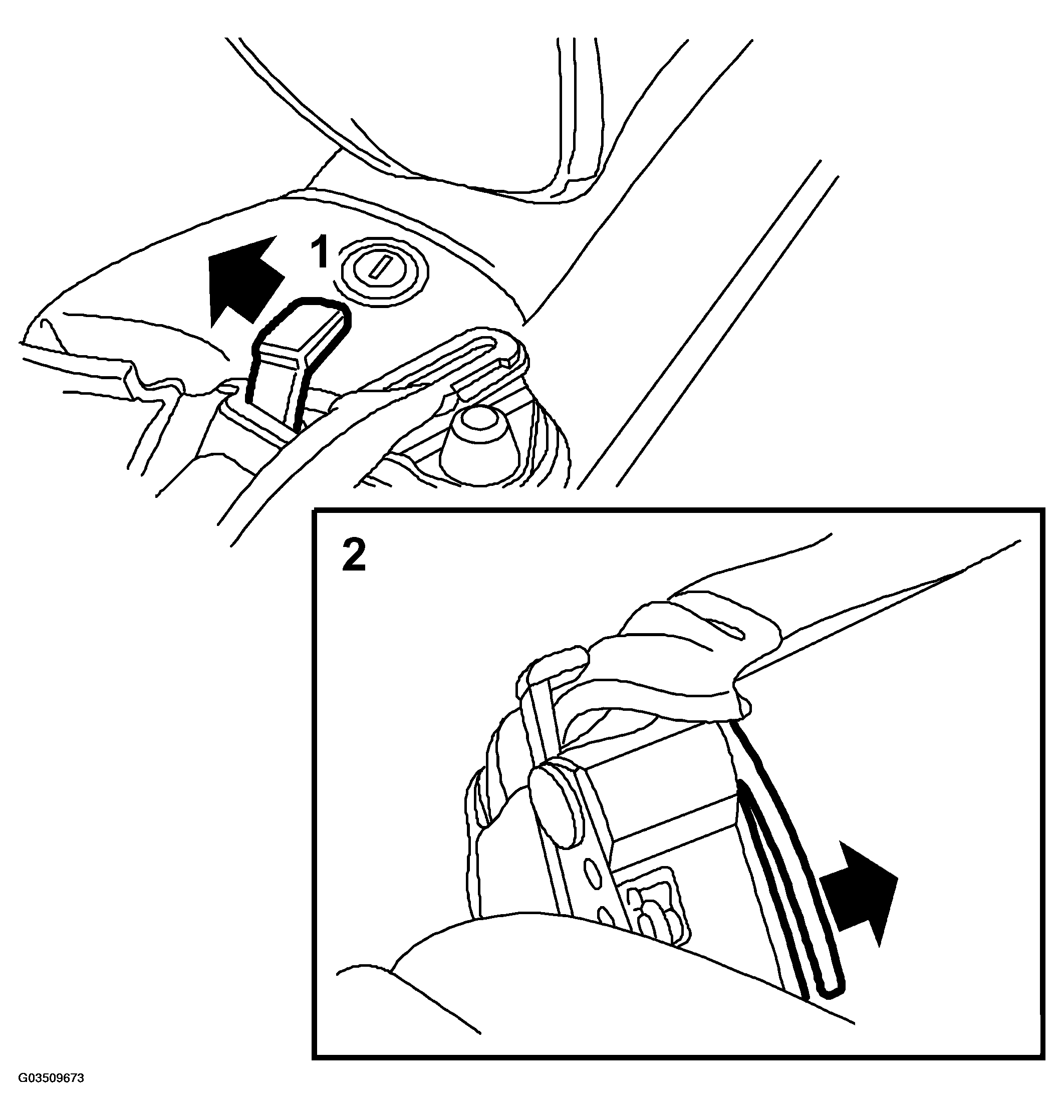

    Fig 1: Illustration For Steps 1-2
    G03509673Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Loosen the upholstery retaining strip by the lock cylinder.
  3. Remove the head restraint. See REAR HEAD RESTRAINTS, CV .
  4. Move aside the upholstery to access the lock cylinder.

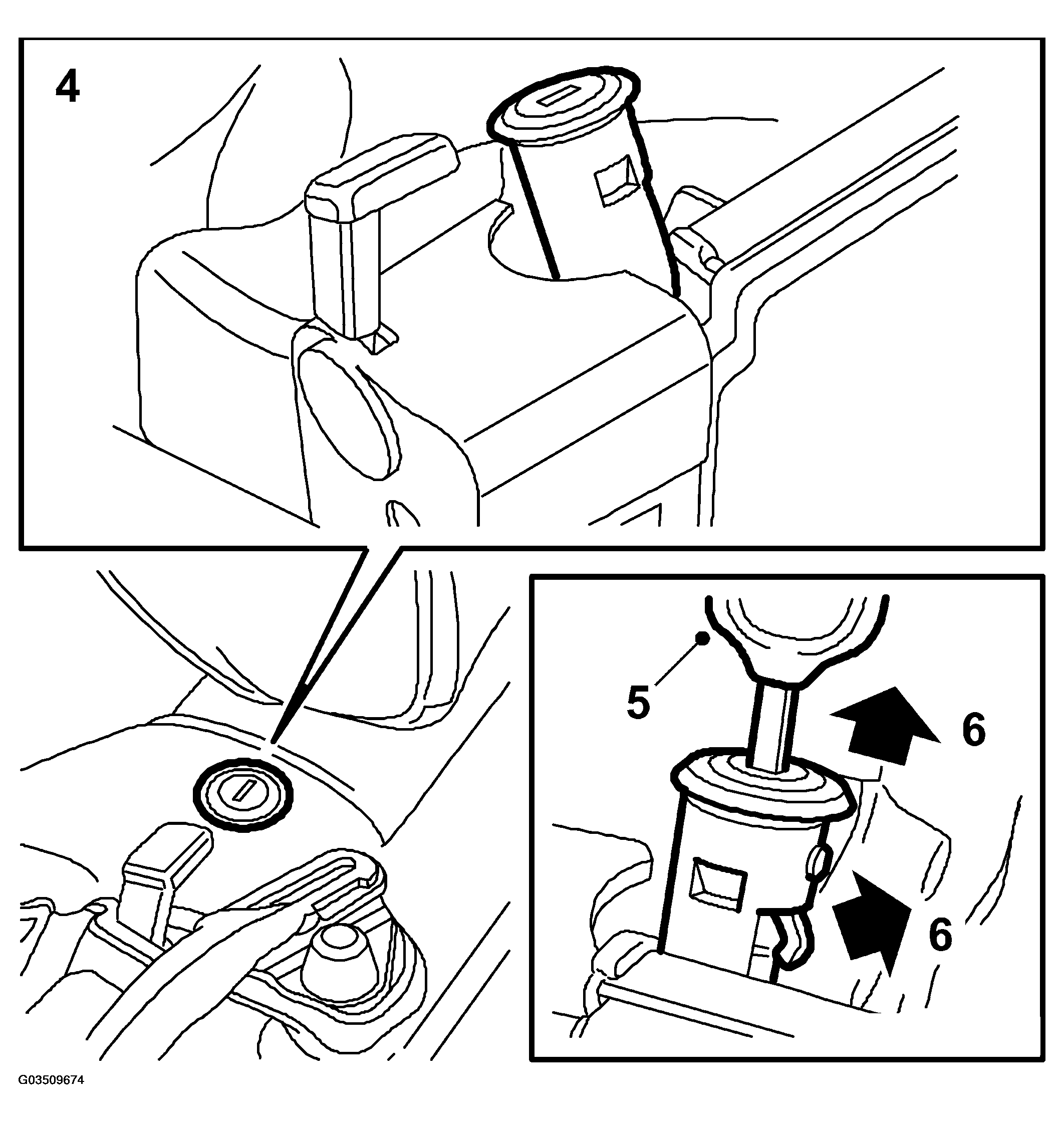

    Fig 2: Illustration For Steps 5-6
    G03509674Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the key tool in the lock cylinder.
  6. Press out the plastic sleeve catches and press out the lock cylinder using a screwdriver.
