To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

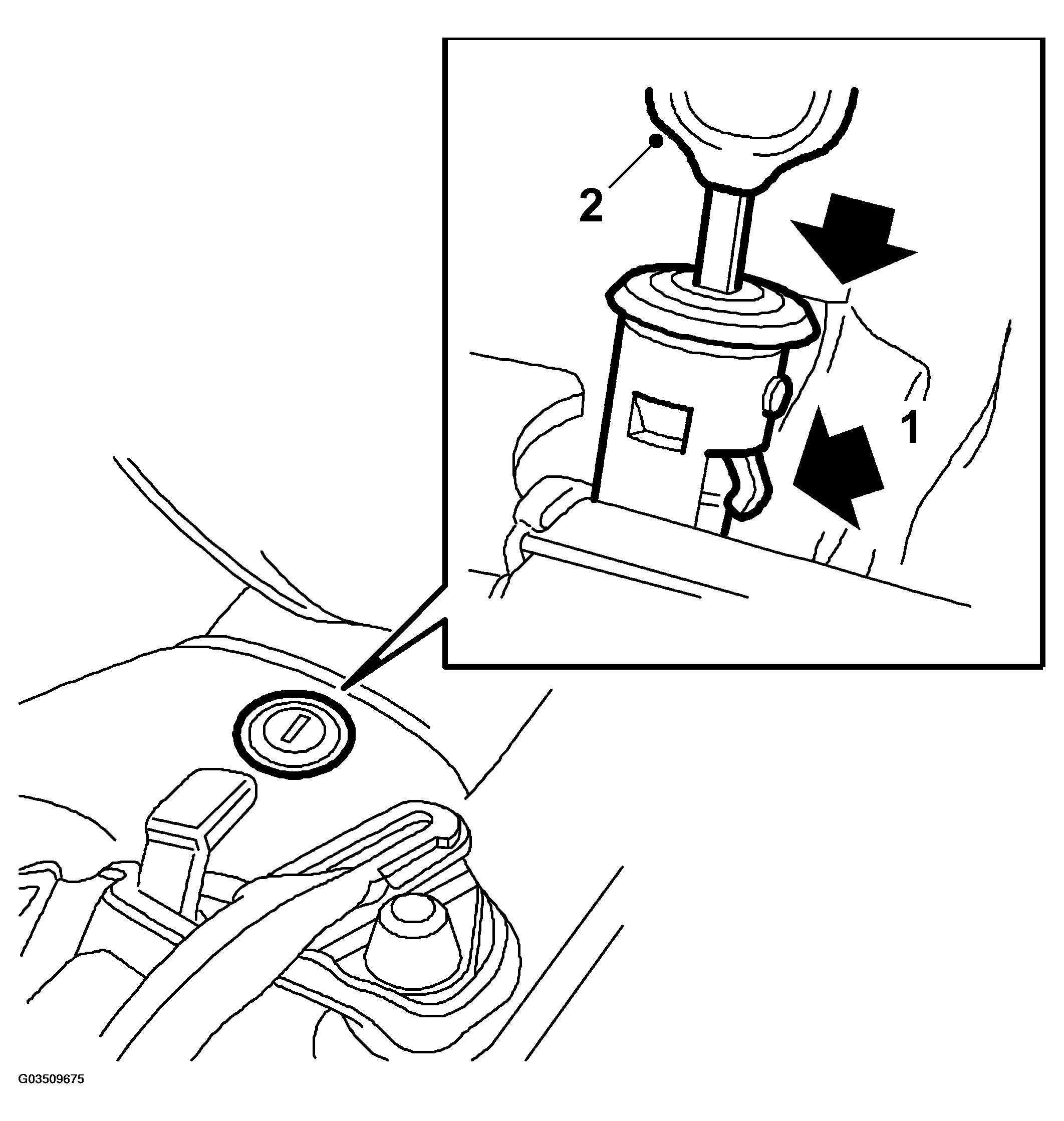

Fig 1: Illustration For Steps 1-2
G03509675Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the plastic sleeve by pressing.
  2. Press in the lock cylinder with the key tool inserted.
  3. Refit the upholstery and fit the upholstery retaining strip.

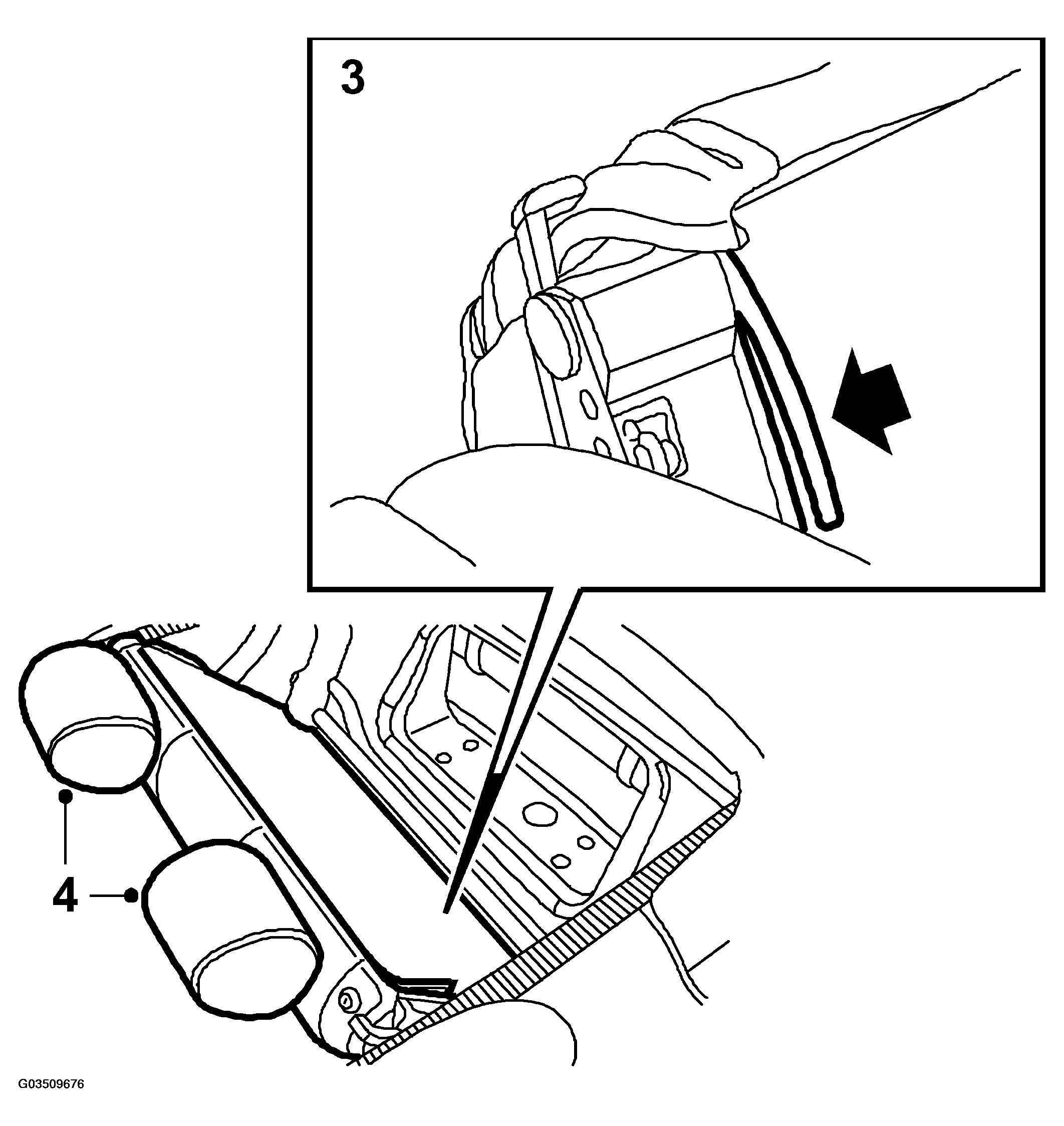

    Fig 2: Illustration For Steps 3-4
    G03509676Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Refit the head restraint and refit the backrest.
