To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

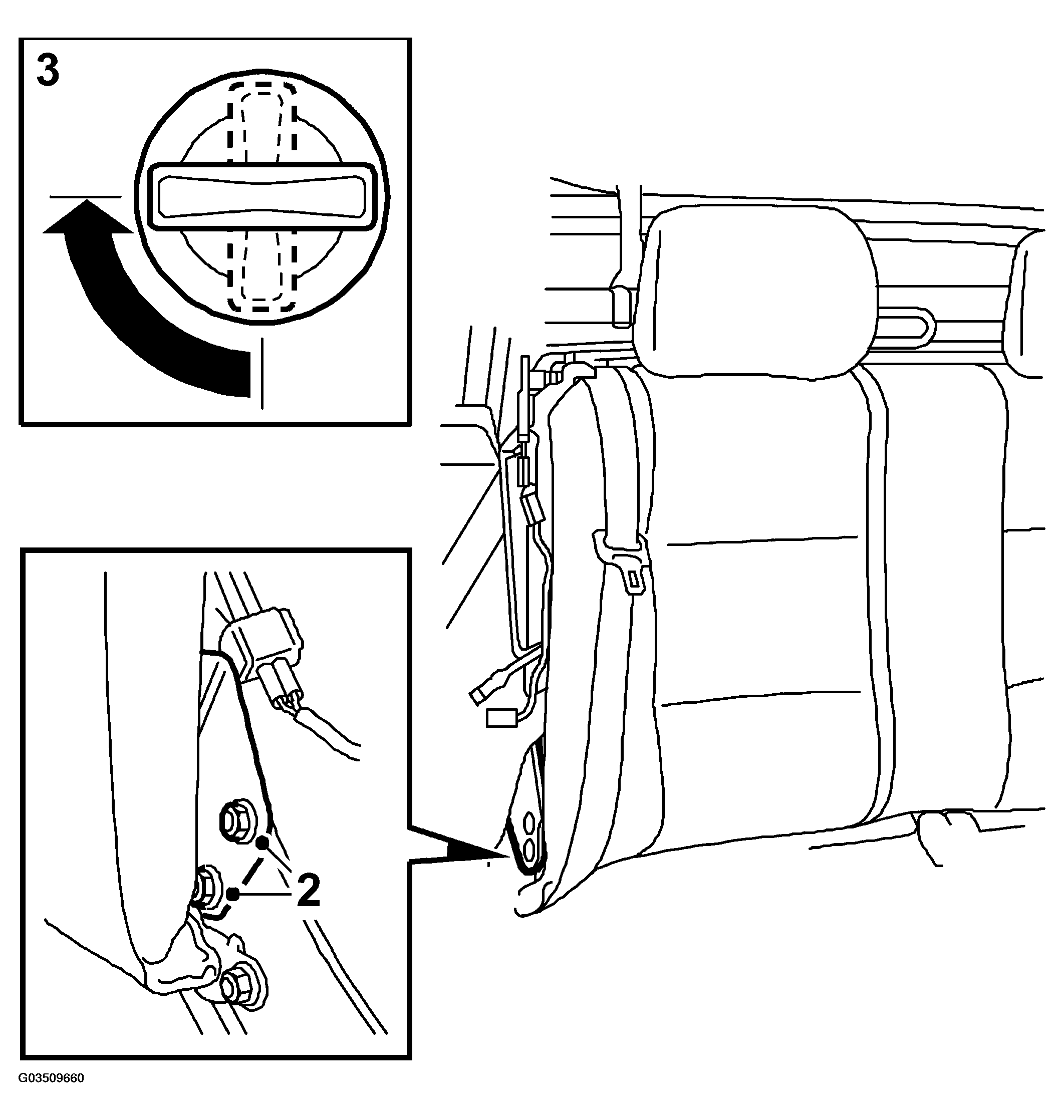

Fig 1: Illustration For Steps 2-3
G03509660Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the rear side trim. see REAR SIDE TRIM, CV .
  2. Remove the bolts securing the backrest cushion.
  3. Unlock the backrest cushion and remove it.
