Attachment eyes, ISOFIX (LATCH)

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The attachment eyes for the child seat must be changed if the attachments have been distorted in a collision or have been damaged in any other way.

Grind away the welds securing the attachment eyes and remove the old attachments.

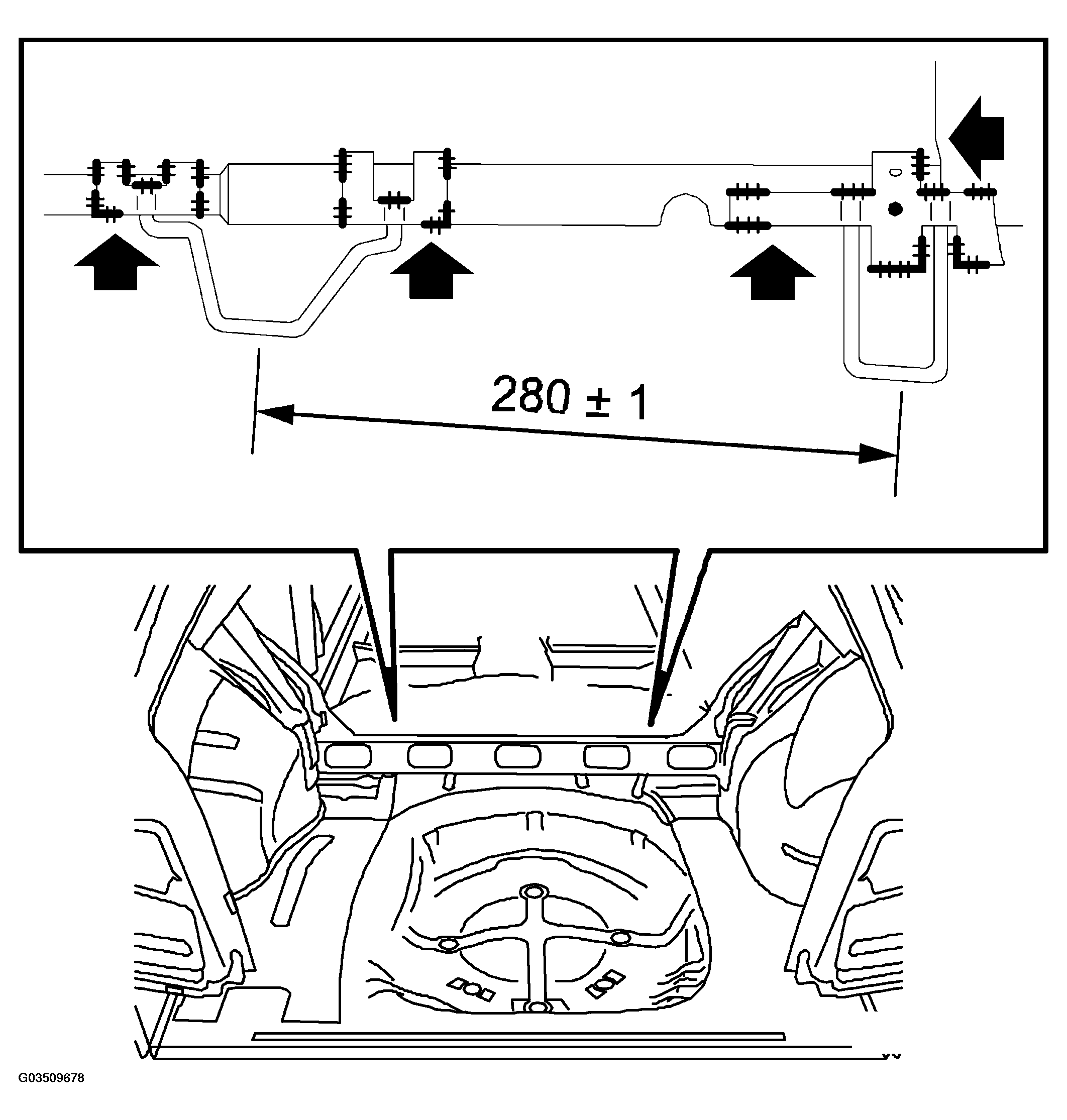

Fig 1: Identifying Attachment Eyes, ISOFIX (LATCH)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Grind and smooth off the old welds.
Put in place the new attachment eyes.
Measure the precise position for the attachments. The eye on the outer attachment (center of round rod) must be flush with the crossmember as illustrated. The eyes must be 280 +/- 1 mm C-C.

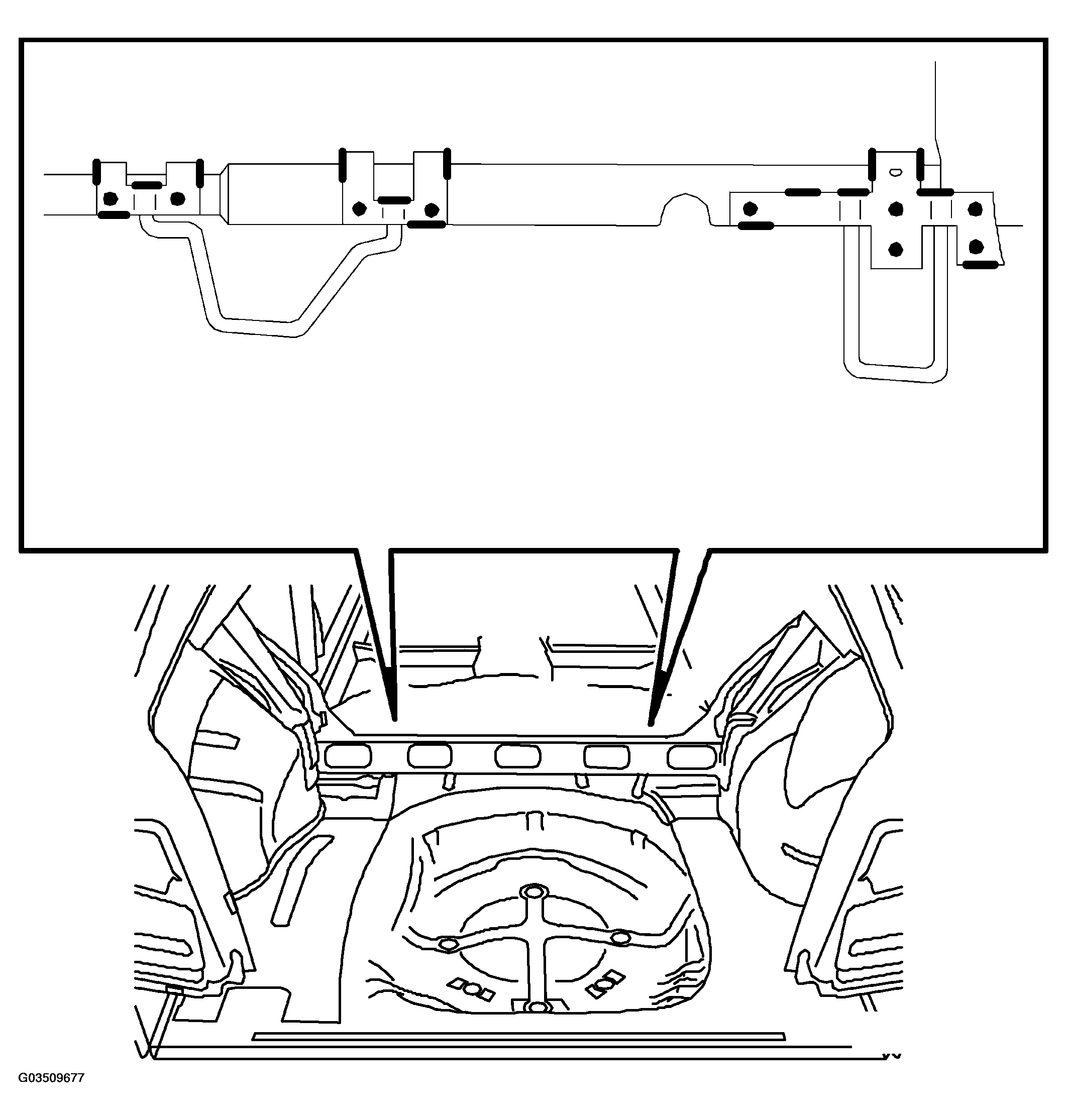

Fig 2: [Applying Thin Layer Of Anticorrosion Agent]
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Seam weld the attachment eyes as illustrated, welding length is 10 -- 15 mm. Do not forget to plug weld in the middle of the outer attachment.
Apply primer to all bare surfaces. Use Standox 1K F"UUML"llprimer. After painting, apply a thin layer of anticorrosion agent and allow it to enter behind the attachments.
