Electrically adjustable door mirrors, RHD: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

See POWER MIRRORS .

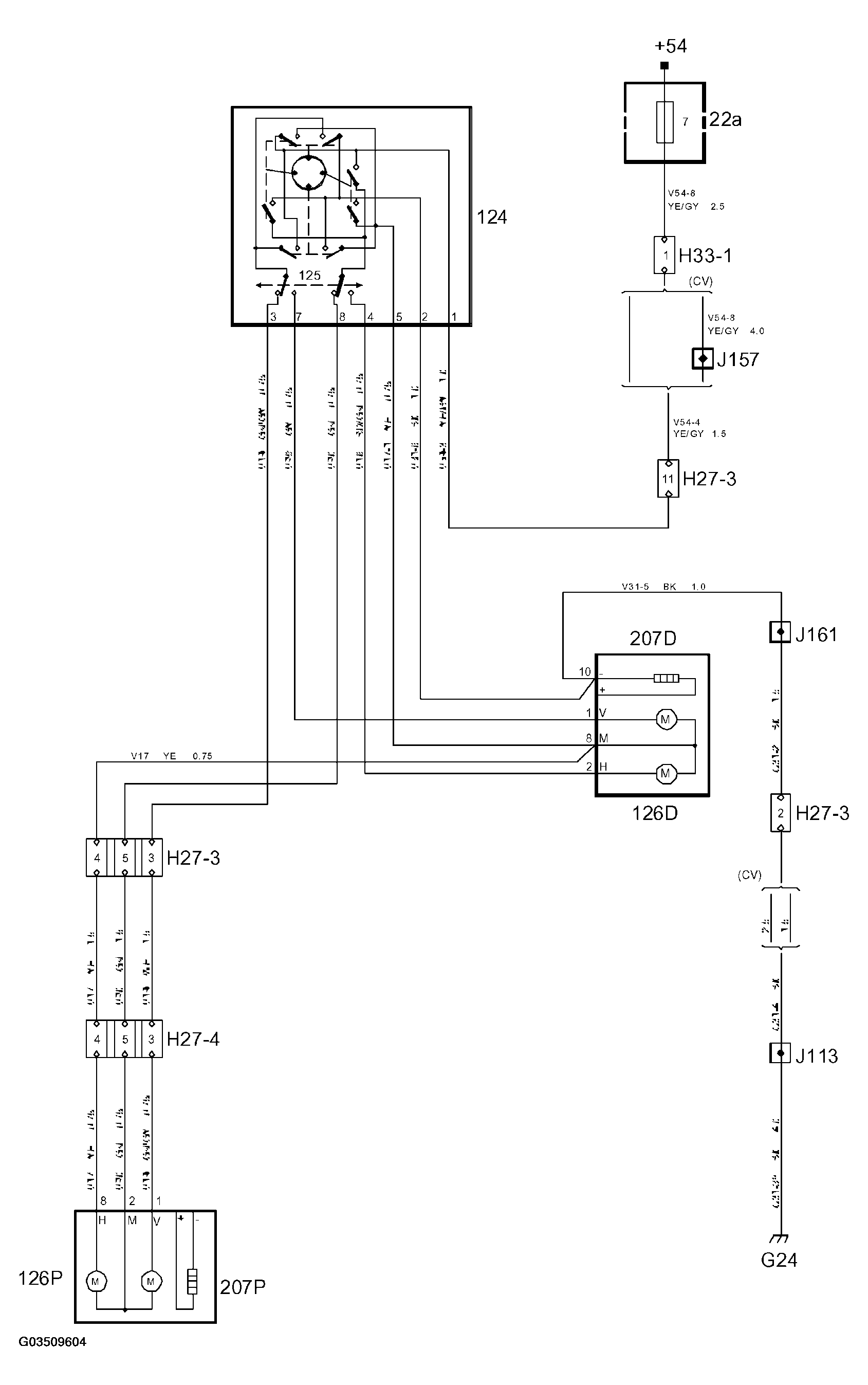

Fig 1: Electrically Adjustable Door Mirrors, RHD - Circuit Diagram
G03509604Courtesy of SAAB-SCANIA OF AMERICA, INC.
