Electrically adjustable door mirrors, LHD: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

See POWER MIRRORS .

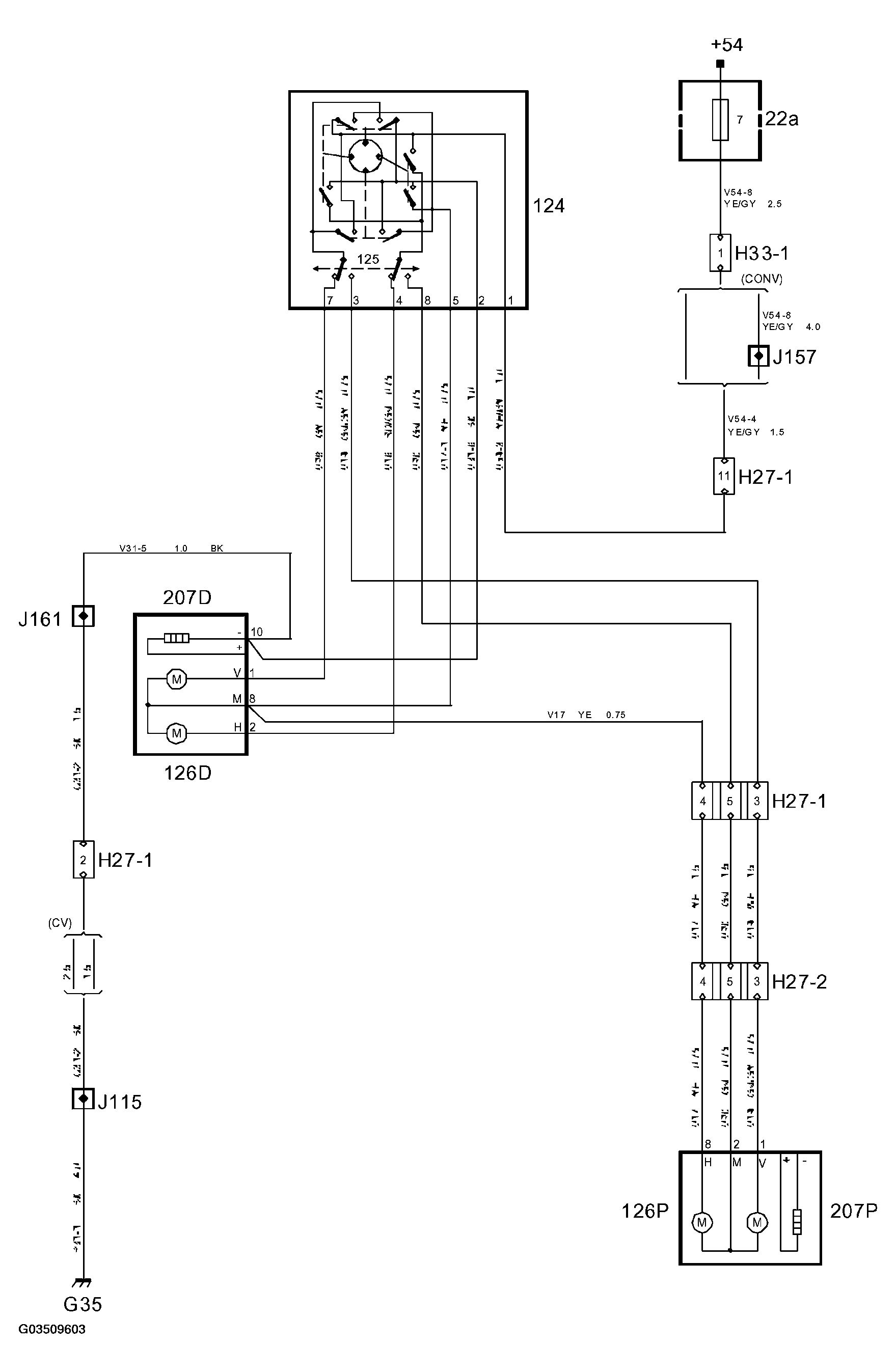

Fig 1: Electrically Adjustable Door Mirrors, LHD - Circuit Diagram
G03509603Courtesy of SAAB-SCANIA OF AMERICA, INC.
