Window lifts

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

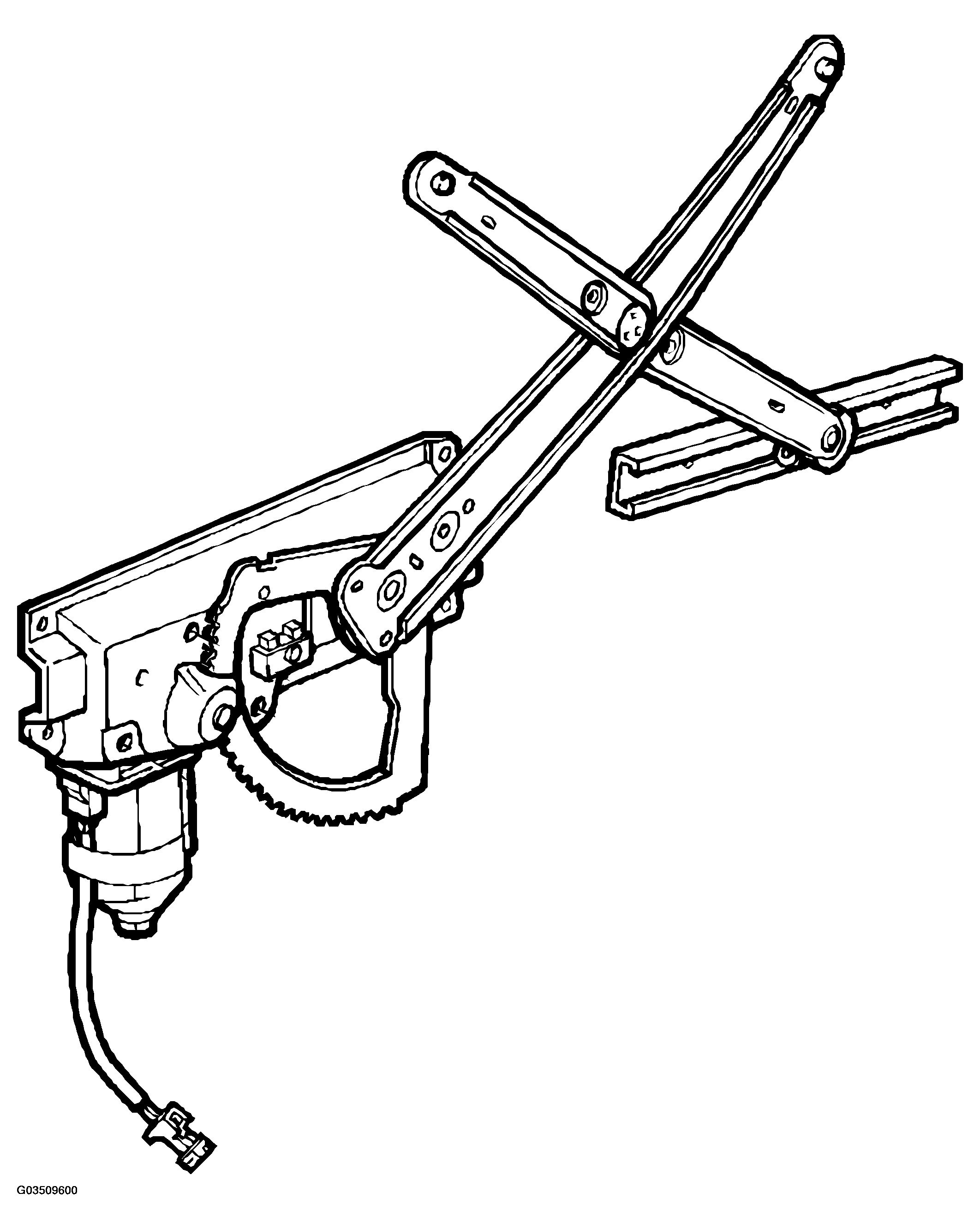

Fig 1: Identifying Window Lifts
G03509600Courtesy of SAAB-SCANIA OF AMERICA, INC.

Only electric window lifts of the scissor-type are available for the front doors and wire type for the rear doors (5D). The rear door window lift is integrated with the electric lift motor. The window lifts can be completely raised or lowered with a push of the button, or in stages by several presses of the button, duration time less than 0.4 seconds.
