Door mirrors

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

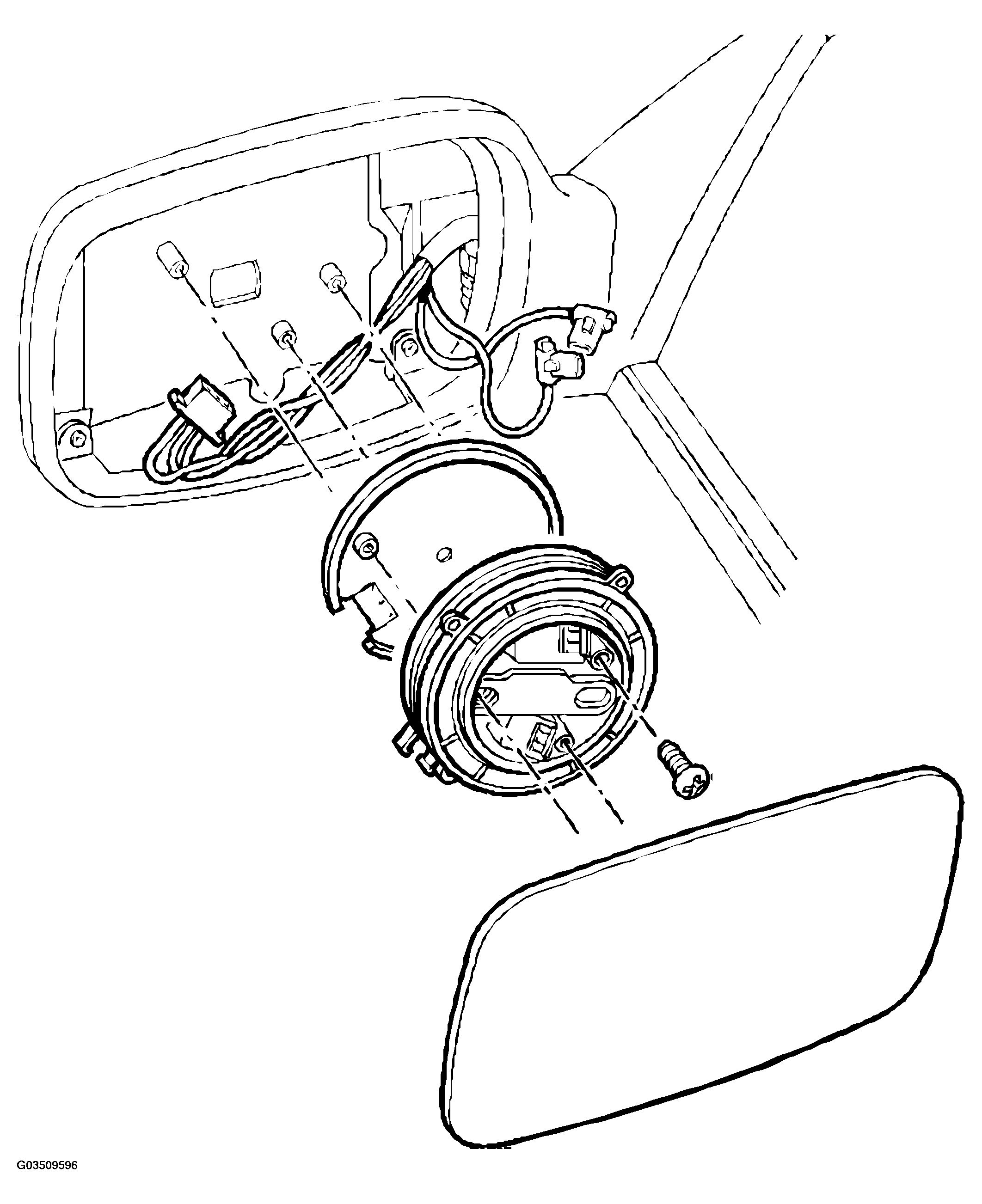

Fig 1: Identifying Door Mirrors
G03509596Courtesy of SAAB-SCANIA OF AMERICA, INC.

The door mirrors are controlled electrically and are operated by a four-way switch as well as a switch by the driver's door. The switch is located at the bottom of the inner door mirror.

The door mirrors are provided with electrical heating that is switched on together with the switch for the electrically heated rear window.

The interior rear-view mirror is mounted in the roof. The glare can be eliminated by pressing a button on the underside of the mirror.
