Diagnostic help

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check fuses 14 and 7 as well as if there is power supplied to the same.
  2. Check that power reaches pin 10 and 11 on switch 386.
  3. Check that there is power to pins 18, 6, 1 and 13 when the windows are lowered.
  4. Check that there is power to pins 19, 7, 14 and 2 when the windows are raised. The voltage should have reversed polarity compared to when the windows are lowered.
  5. If the electric window lifts in the rear doors cannot be operated from the switches in respective rear door, check that the voltage is being fed out via pin 9 ON/OFF  on the switch.
  6. Check the rear door switch function by measuring on their connections.
  7. Check connector, wiring and ground connections.

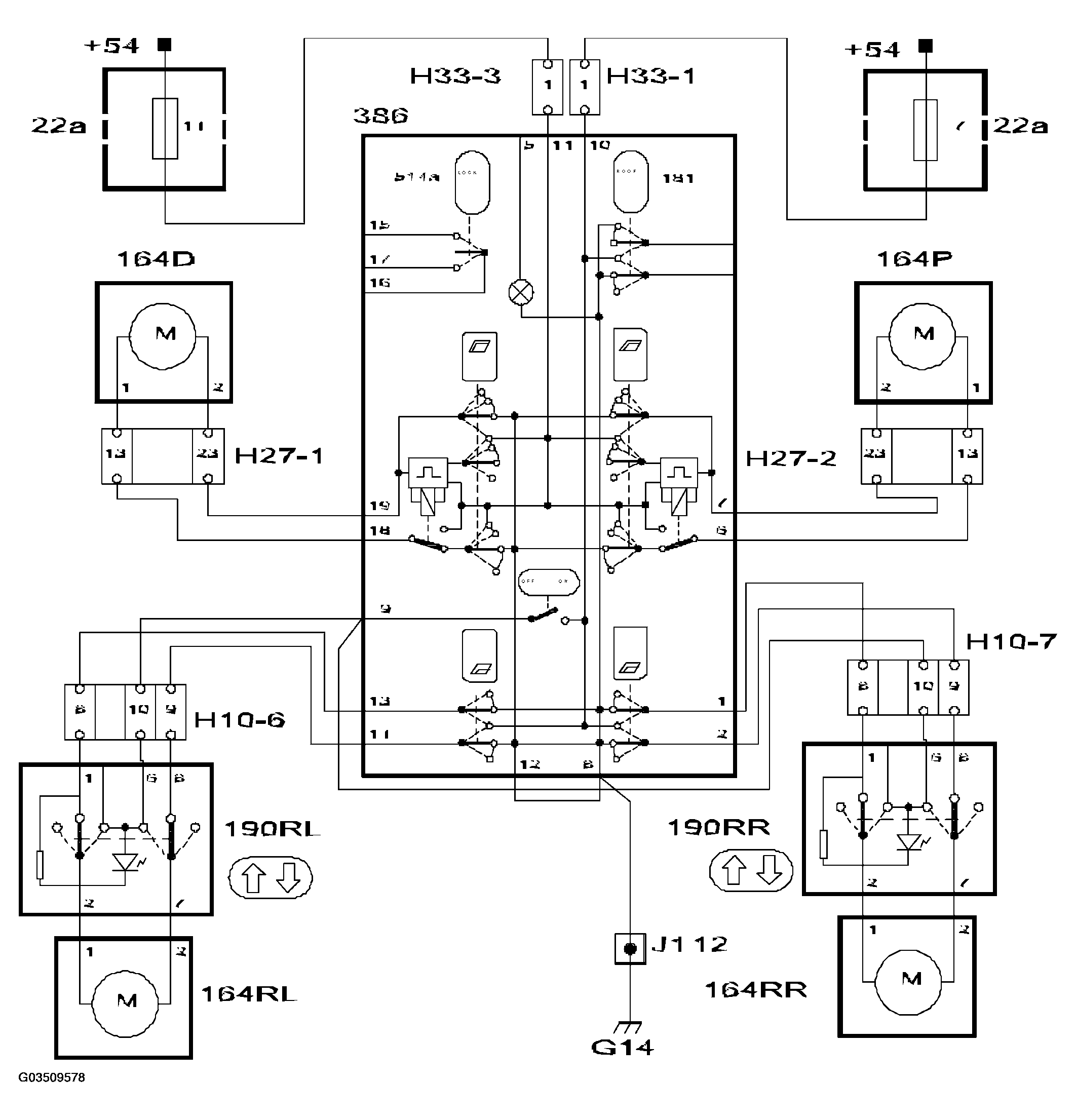

    Fig 1: Electric Window Lifts Not Functioning - Circuit Diagram
    G03509578Courtesy of SAAB-SCANIA OF AMERICA, INC.
