Diagnostic help

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check fuse 7 as well as if there is power to the fuses.
  2. Check the voltage in pin 5 on switch 124.
  3. Check that the power goes out to the motors 126D and 126P by activating the switch.
  4. Check connector, wiring and ground connection.

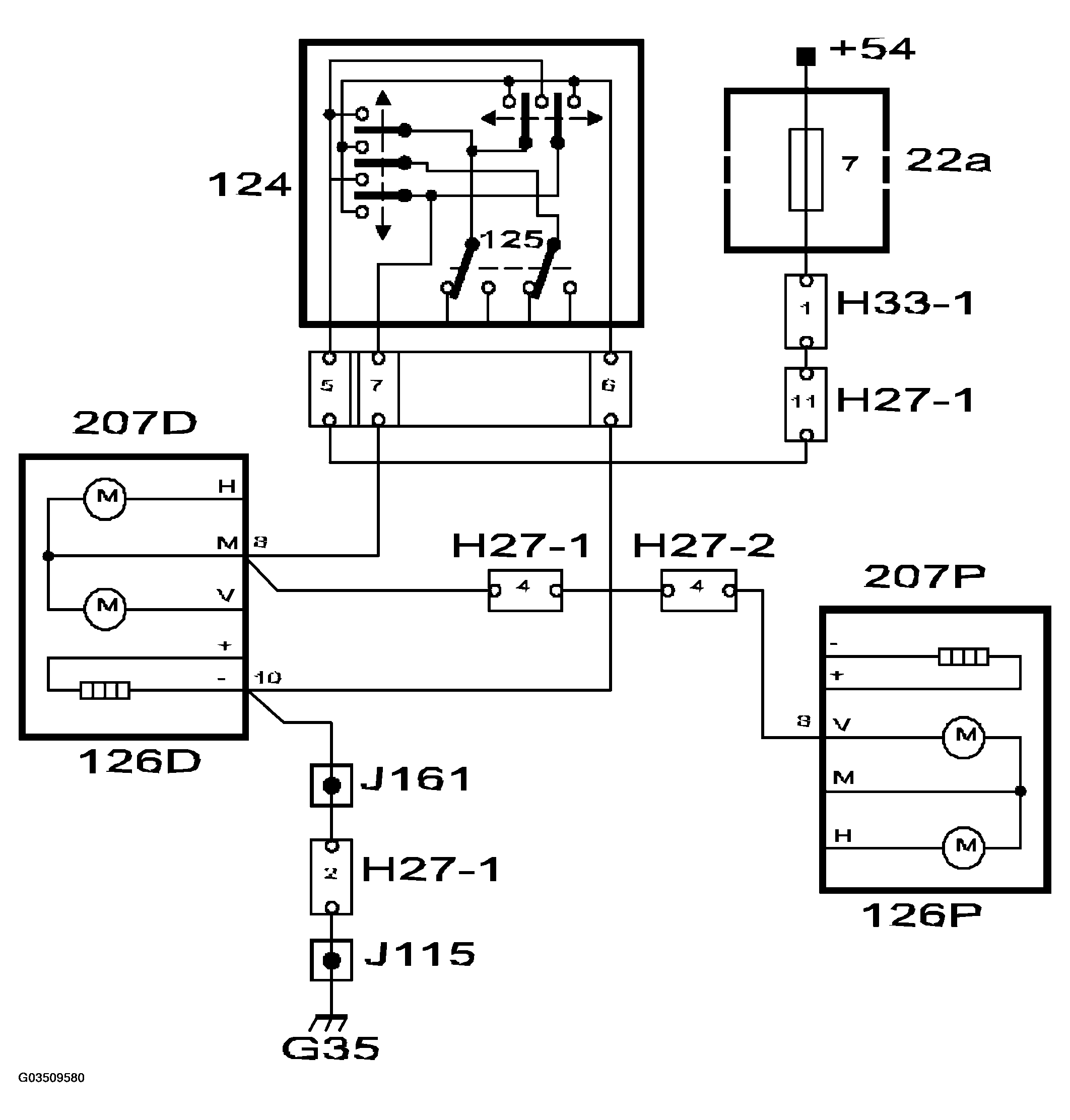

    Fig 1: Electric Door Mirrors - Circuit Diagram
    G03509580Courtesy of SAAB-SCANIA OF AMERICA, INC.
