To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start to fit in both corners.
  2. Tighten down the seal.
  3. Fit the plugs.

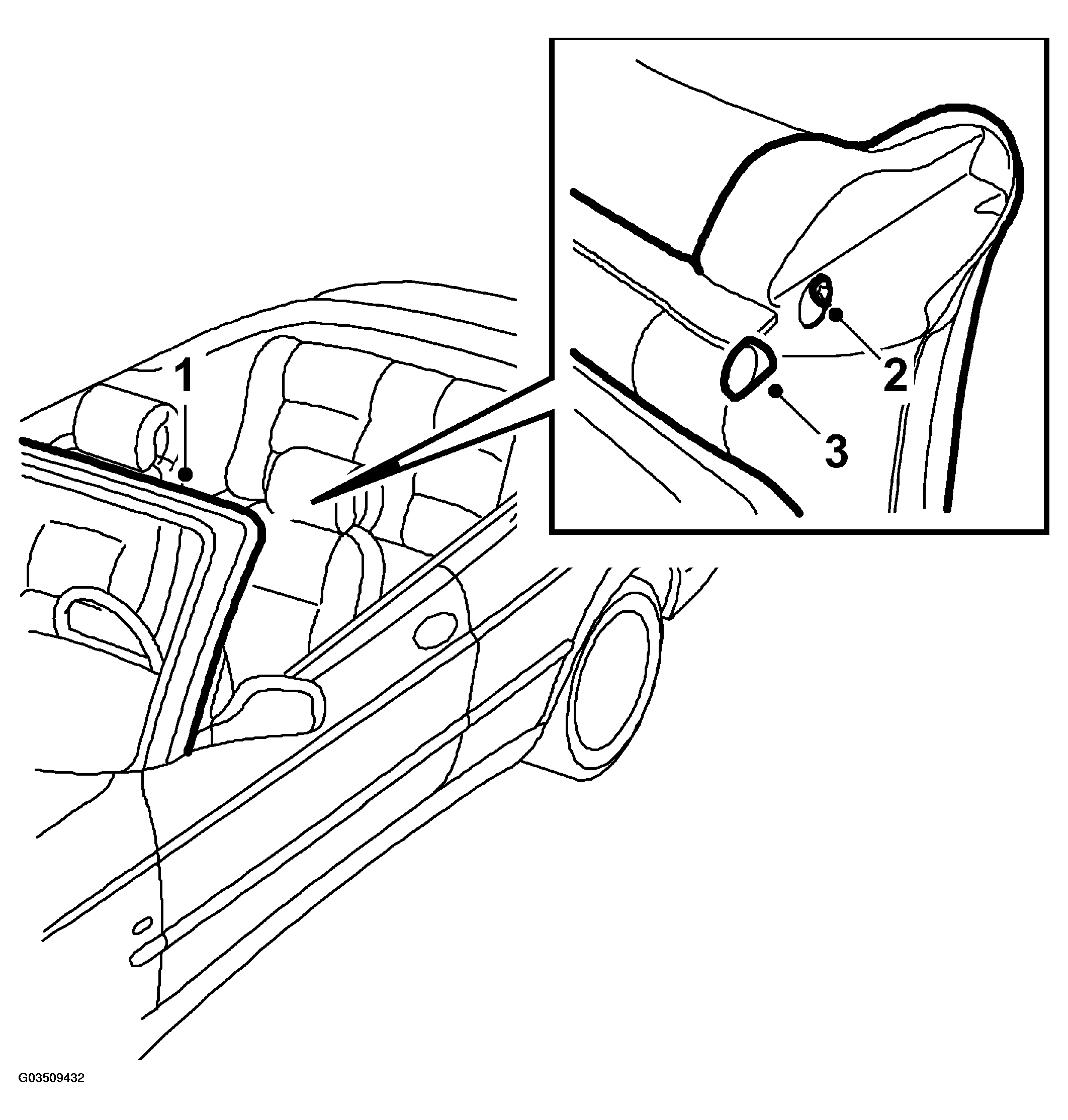

    4. Fig 1: Illustration For Step 1-3
    G03509432Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Pull off the protective backing from the double-sided adhesive tape and start to fit the seal at the bottom of the A-pillar and continue upwards to the corner.
  5. Continue fitting from the middle of the windscreen top edge and out towards the edges. Use soapy water to facilitate fitting.
  6. Check the fit against the front seal. Adjust the front seal if needed. See ADJUSTMENT REPLACEMENT .
