To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window completely.
  2. Remove the door trim. See ADJUSTMENT - REPLACEMENT in INTERIOR EQUIPMENT.
  3. Remove the plastic water deflector.
  4. Remove the cover (secured in guides in the guide channel and clips).
  5. Remove the internal window seal by prying up the rear edge of the seal with a large flat screwdriver and pull up the seal by hand.
  6. Remove the external window seal.
  7. Loosen the window frame seal from the rear guide channel and lift it out of the door.

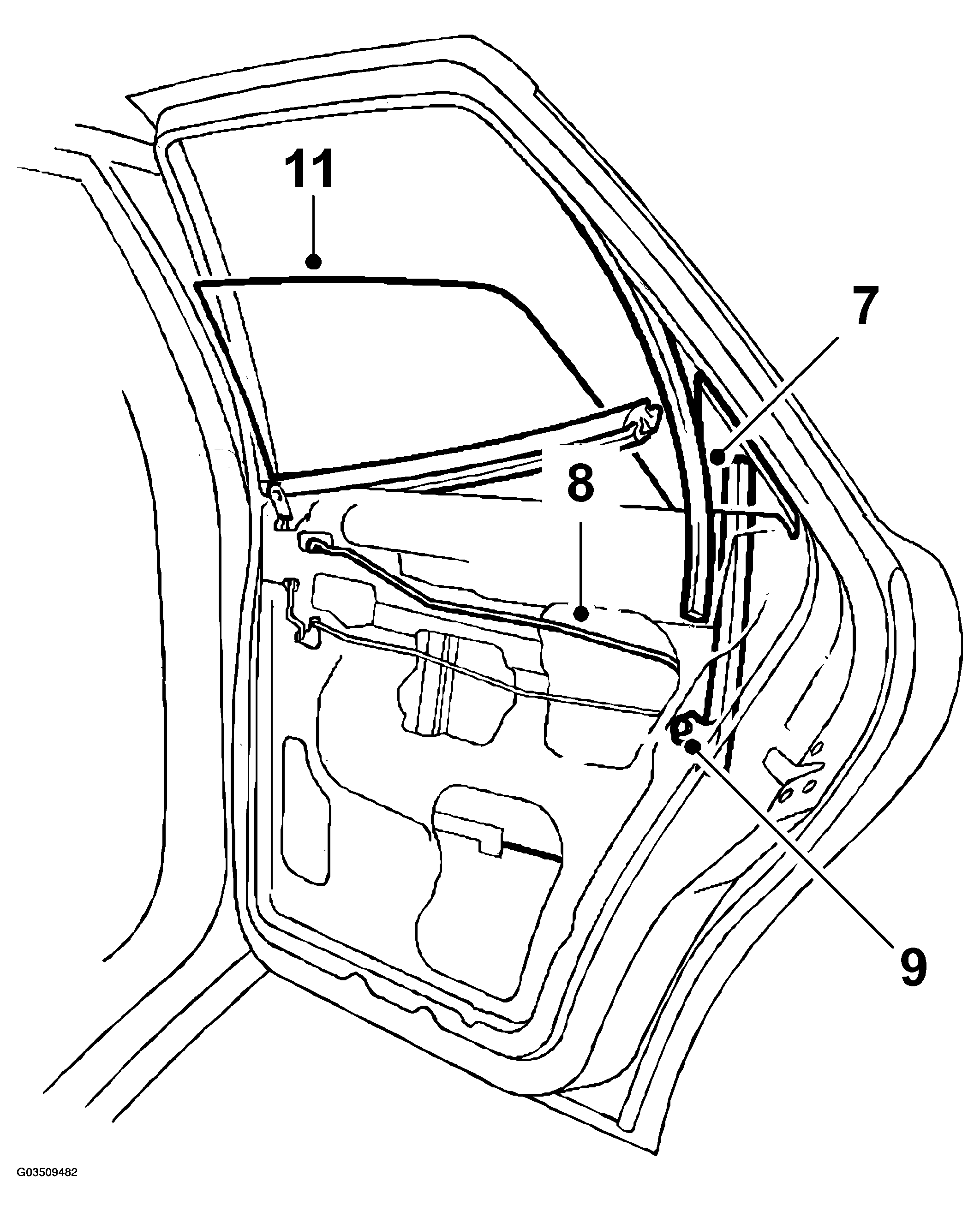

    Fig 1: Illustration For Step 7-11
    G03509482Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Loosen the pull bar, located between the door handle and door lock, from the door side and leave it suspended.
  9. Remove the rear guide channel by loosening the retaining screw and angle it out upwards.
  10. Remove the window glass by lifting at the rear edge and guide it away from the window lift.
  11. Lift out the glass by moving it inwards from the window frame.
