To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the weatherstrip from the C-pillar.
  2. Remove the upholstery around the rear quarter light.

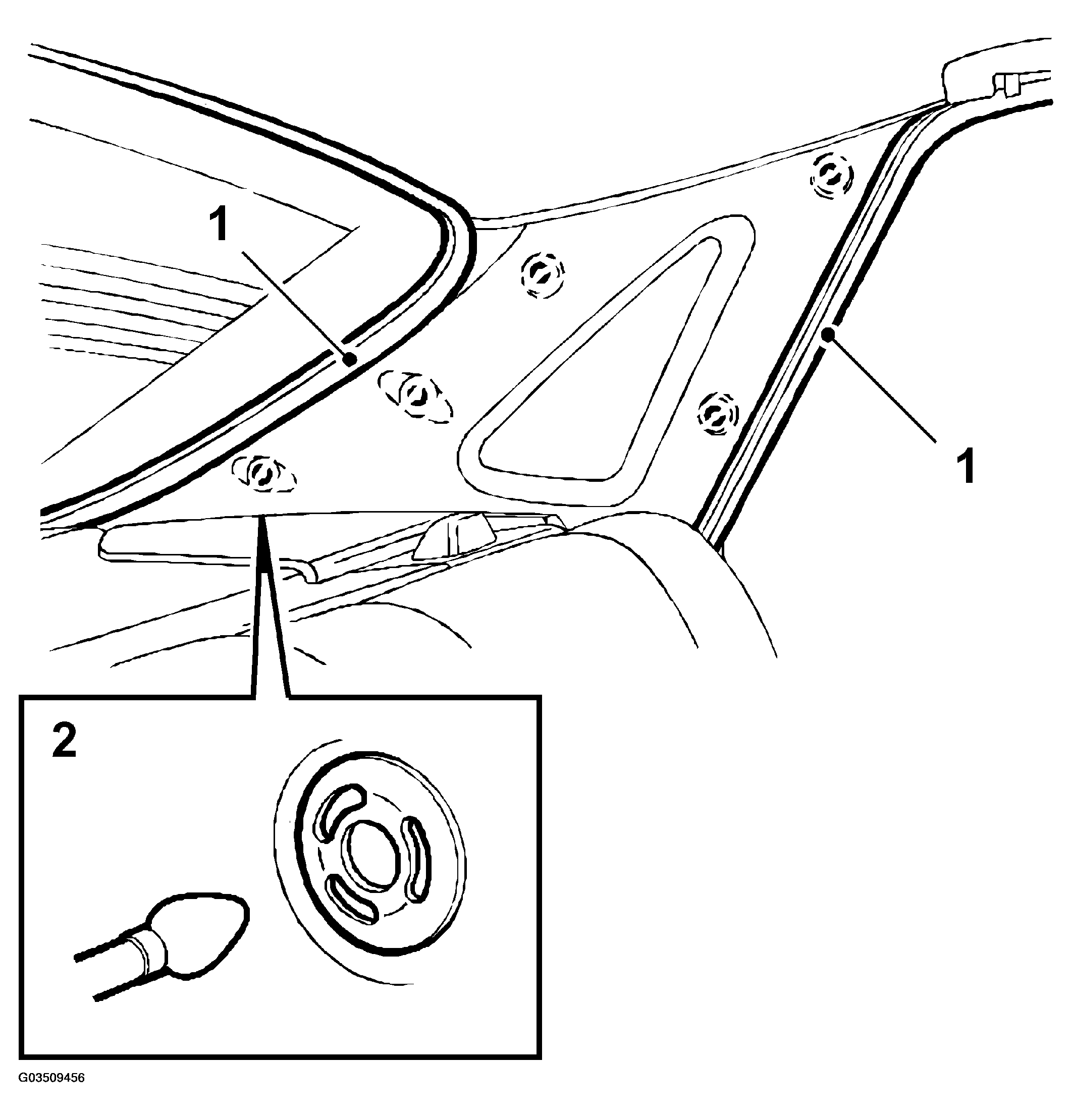

    3. Fig 1: Illustration For Step 1-2
    G03509456Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the nuts that secure the window.

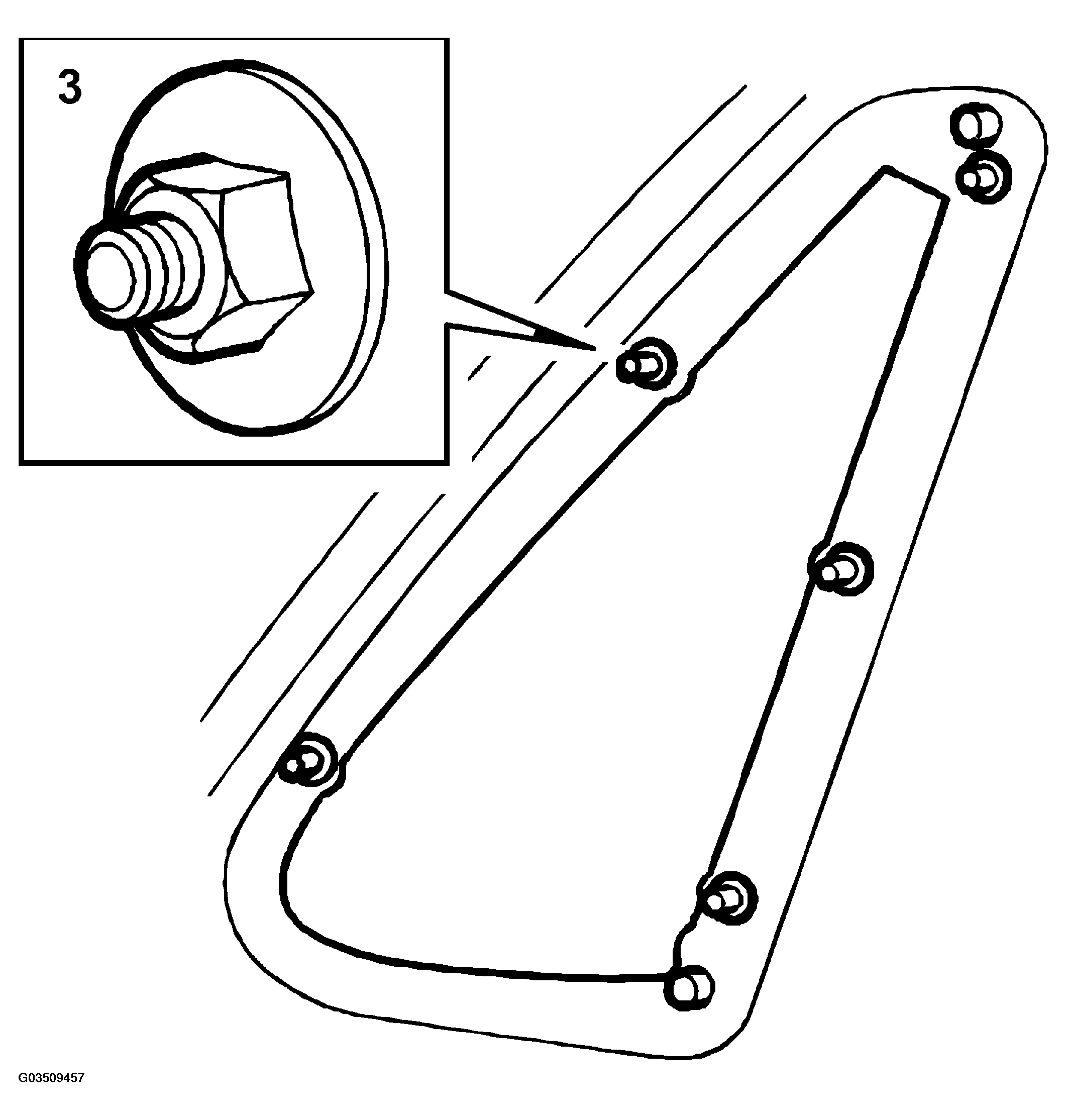

    Fig 2: Illustration For Step 3
    G03509457Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Attach a lifting handle to the outside of the window.
  5. Get assistance from a co-worker. Press and pull out the side window. Cut the butyl tape sealing the side window with a knife as the window loosens. Be careful not to damage the paint work or side window plastic embedment. Use safety glasses and work gloves.

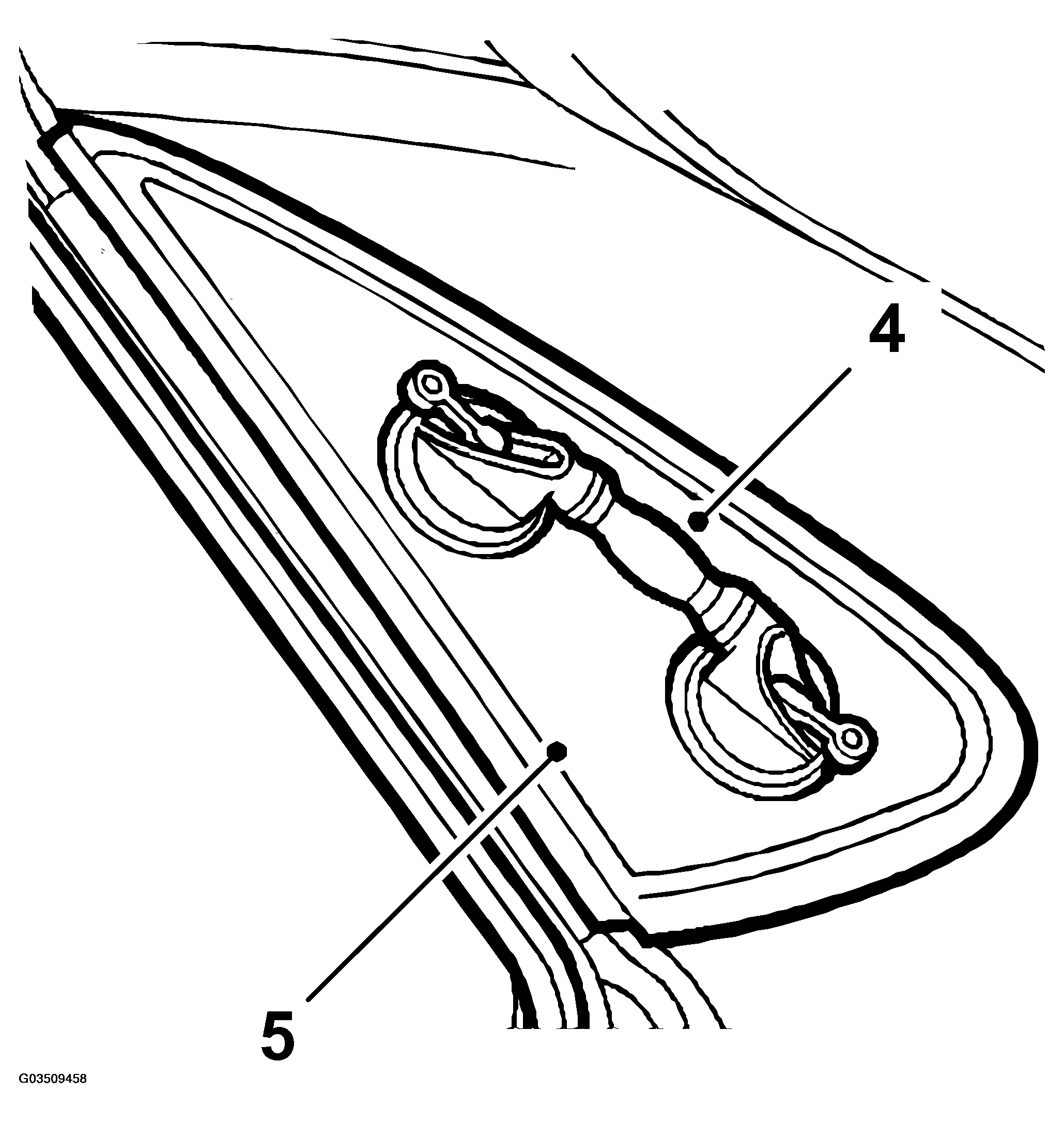

    6. Fig 3: Illustration For Step 4-5
    G03509458Courtesy of SAAB-SCANIA OF AMERICA, INC.
