To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the butyl tape from the body. If the old window is to be refitted, the butyl tape on the window must also be removed.
  2. Apply new butyl tape to the side window as shown in the illustration. Use butyl tape part no. (45) 30 16 755.

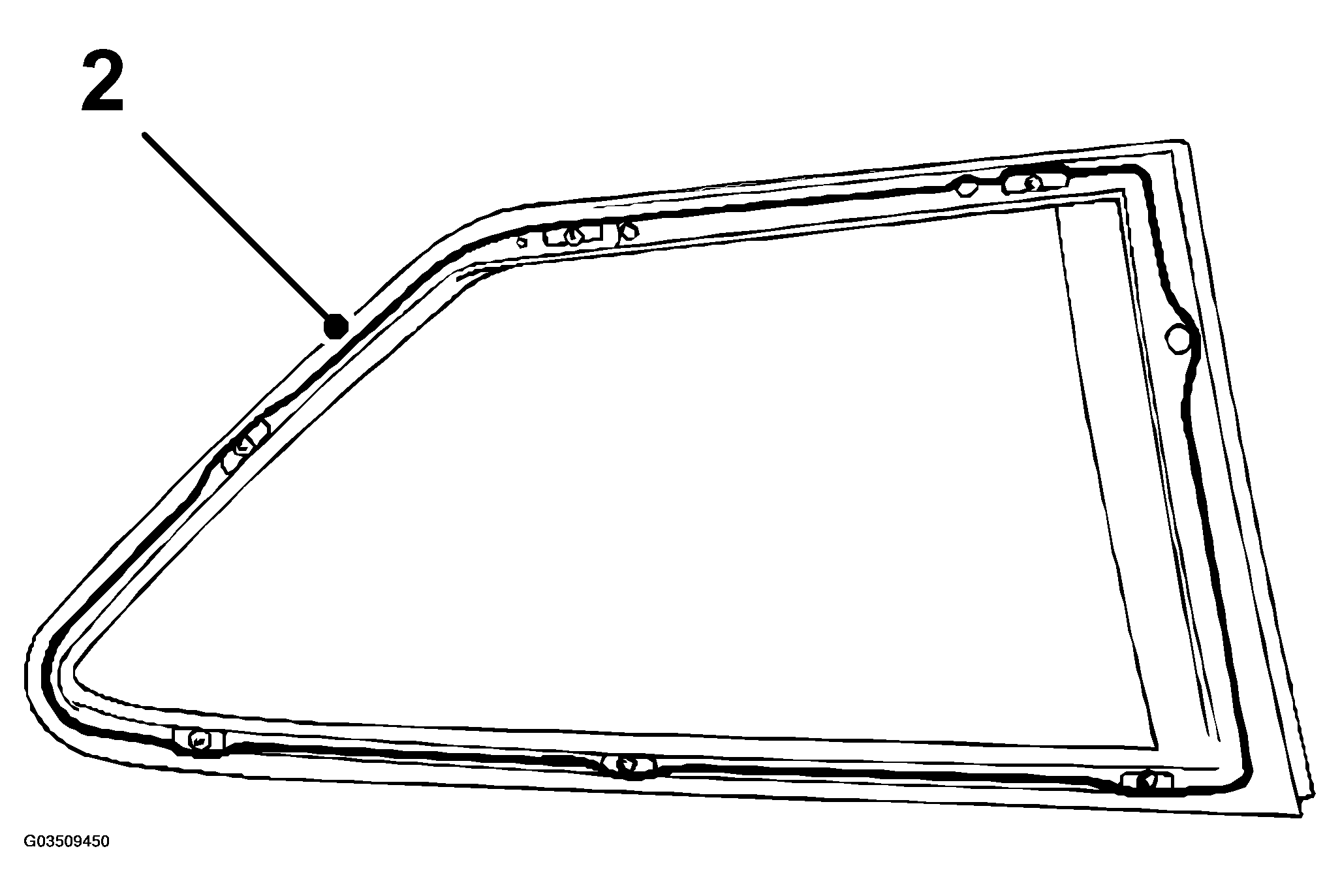

    Fig 1: Illustration For Step 2
    G03509450Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the window and tighten the nuts.

    Tightening torque: 3 N.m (2.2 lbf ft)

  4. Refit the headlining.
  5. Refit the C-pillar trim.
  6. Fit the seal around the tailgate opening.

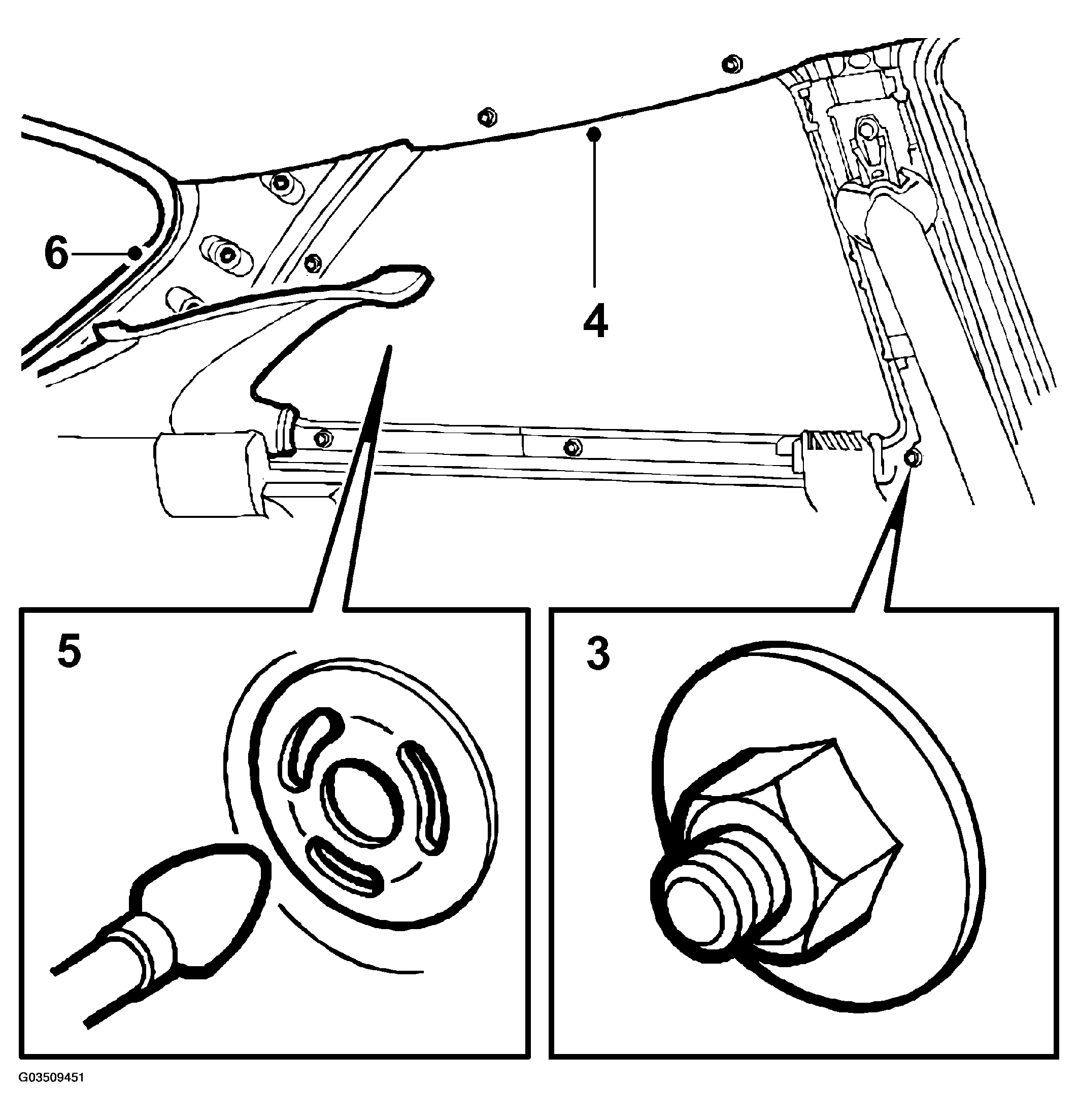

    7. Fig 2: Illustration For Step 3-6
    G03509451Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Refit the side trim and press on the clips.
  8. Fold the backrest cushion forwards and fit the rear clip.

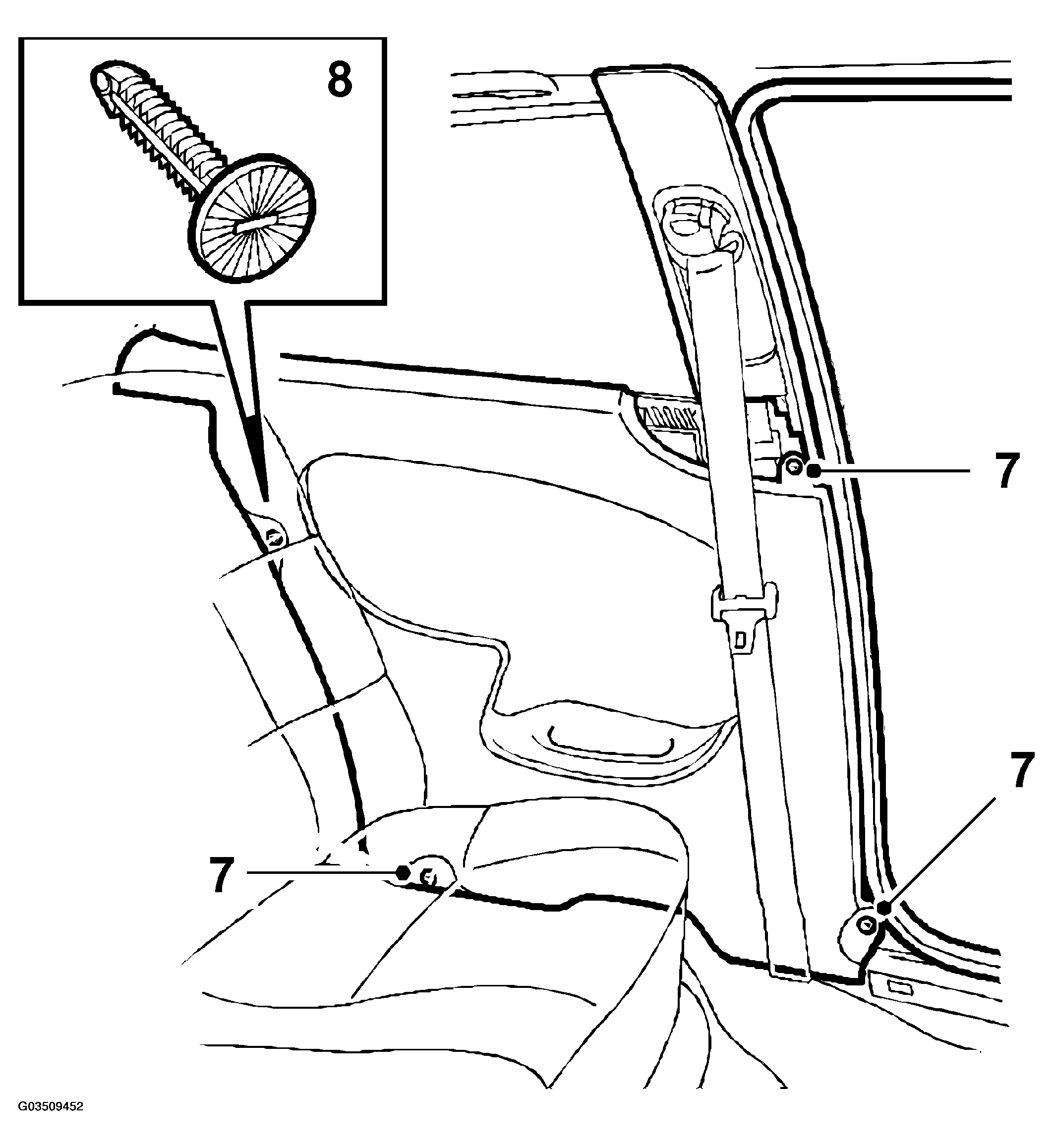

    9. Fig 3: Illustration For Step 7-8
    G03509452Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Fold up the backrest cushion.
  10. Refit the sill scuff plate.

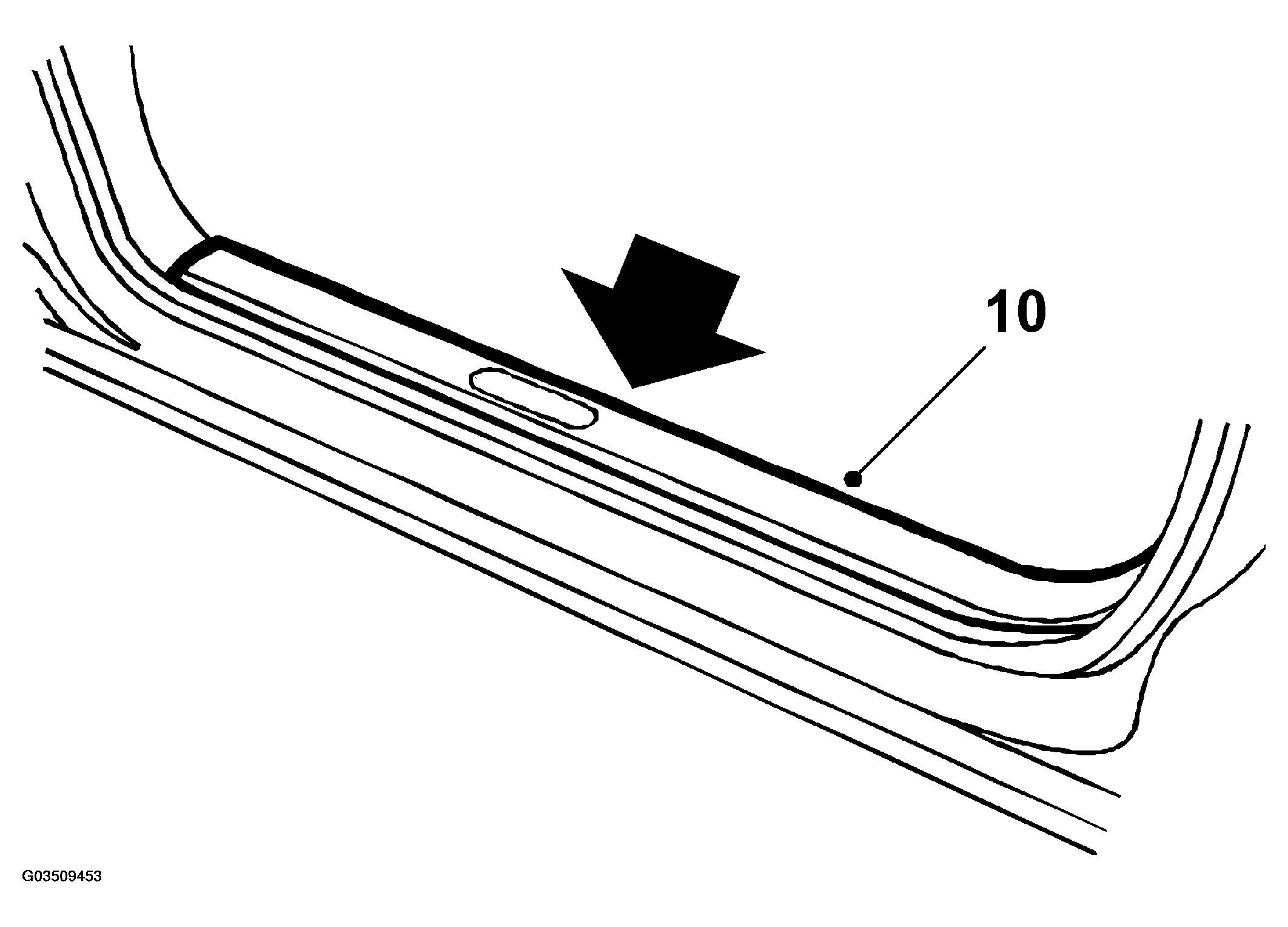

    Fig 4: Illustration For Step 10
    G03509453Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Refit the B-pillar trim.
  12. Fit the door seal on the B-pillar.

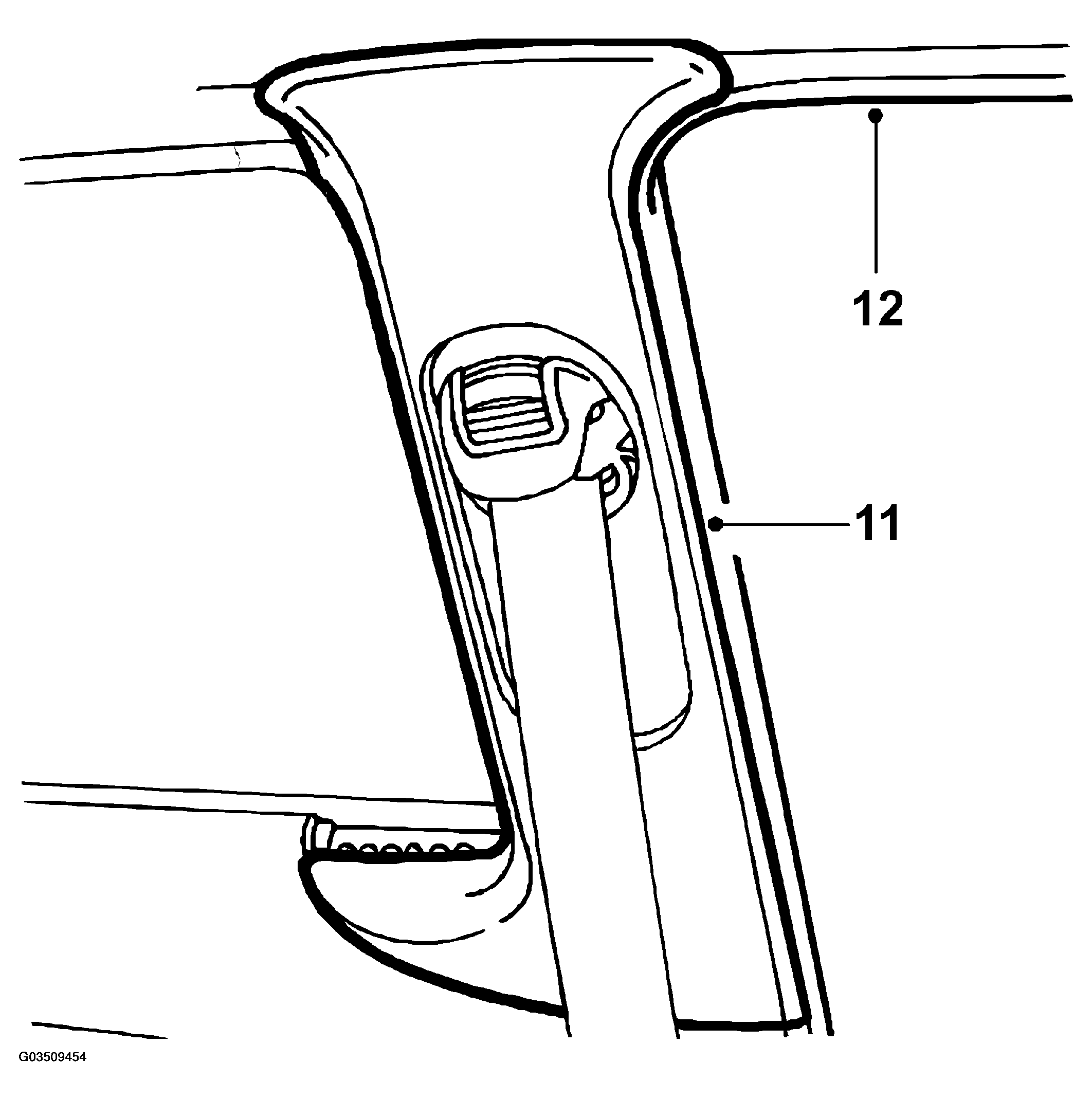

    13. Fig 5: Illustration For Step 11-12
    G03509454Courtesy of SAAB-SCANIA OF AMERICA, INC.
