To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim. See ADJUSTMENT - REPLACEMENT in INTERIOR EQUIPMENT.
  2. Lower the window.
  3. Remove the cover at the upper rear corner of the door.
  4. Remove the outer window well seal. The seal is secured by a clip at the rear end.
  5. Remove the inner window well seal.
  6. Fold down the water barrier.

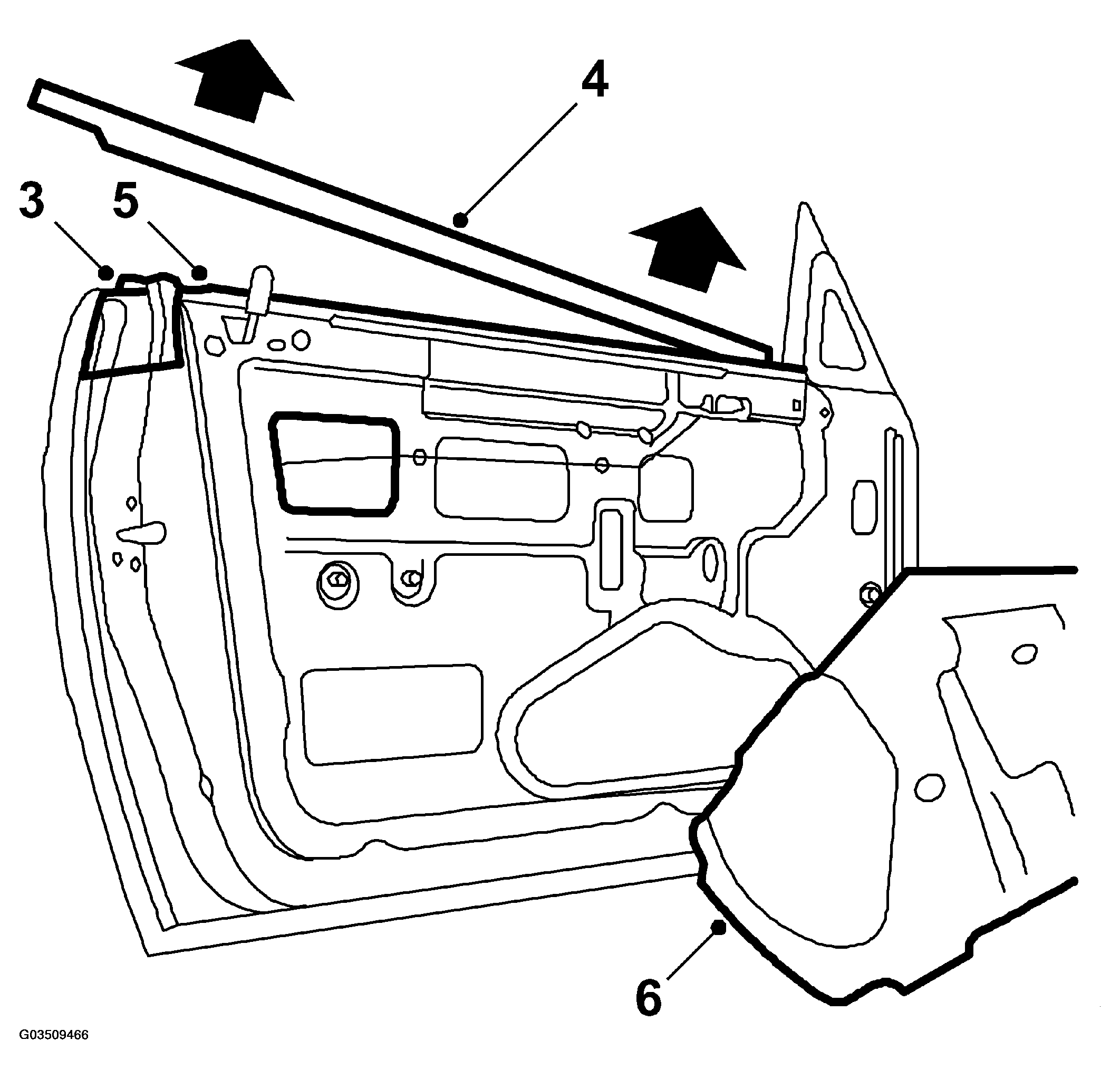

    7. Fig 1: Illustration For Step 4-6
    G03509466Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the clip and remove the window lift lever from the runner in the aluminum rail on the window.
  8. Remove the bolts securing the window to the lift mechanism.

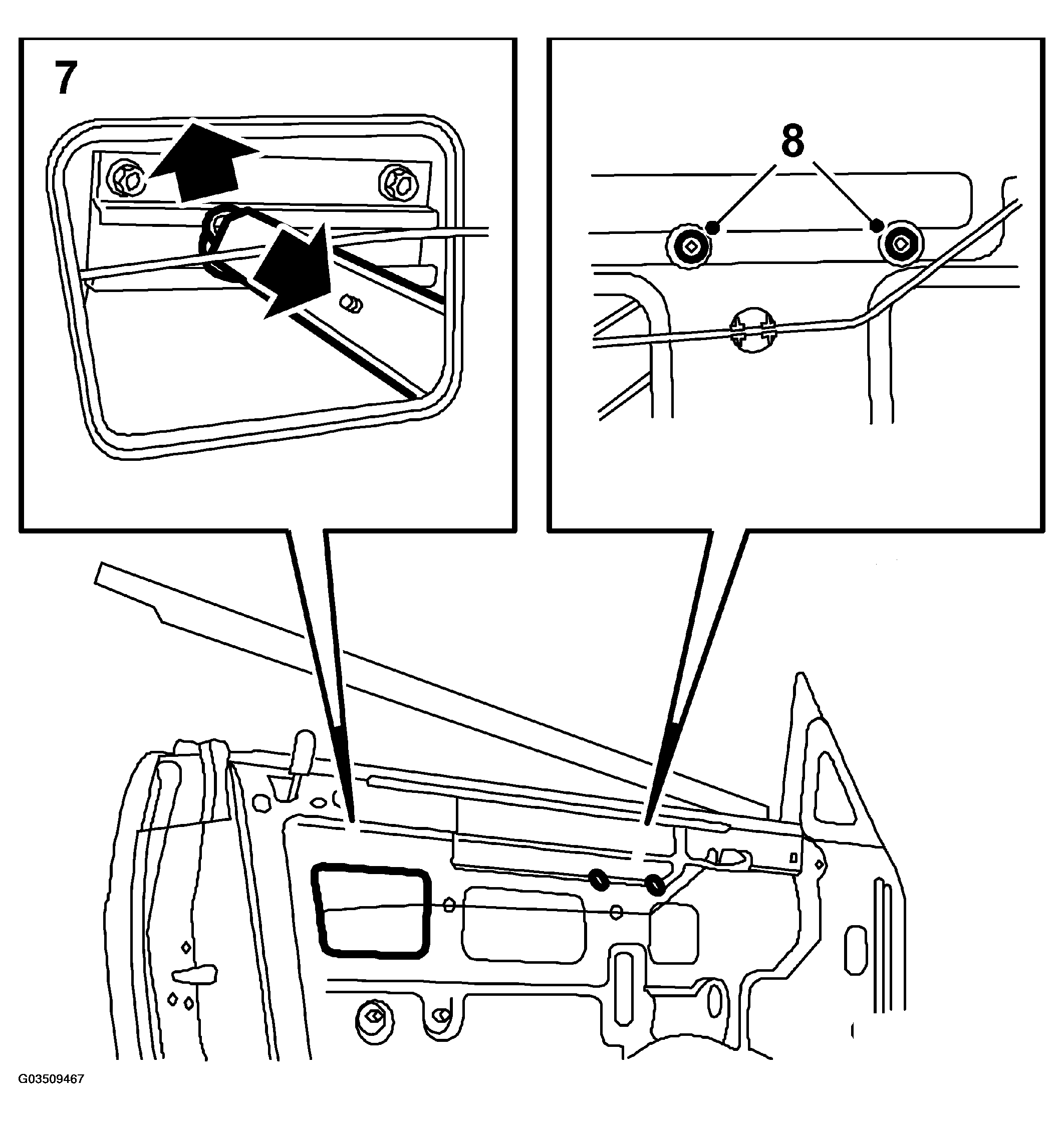

    9. Fig 2: Illustration For Step 7-8
    G03509467Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Lift the window out of the door. Hold the window lift mechanism away from the window to facilitate lifting.
