To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window lift mechanism.
  2. Guide in the plastic bushings on the window in the rear window guide rail. Lower the window slightly and tighten the bolts that secure the window to the lift mechanism.
  3. Fit the lift mechanism lever to the runner in the aluminum rail.
  4. Fit the clip.

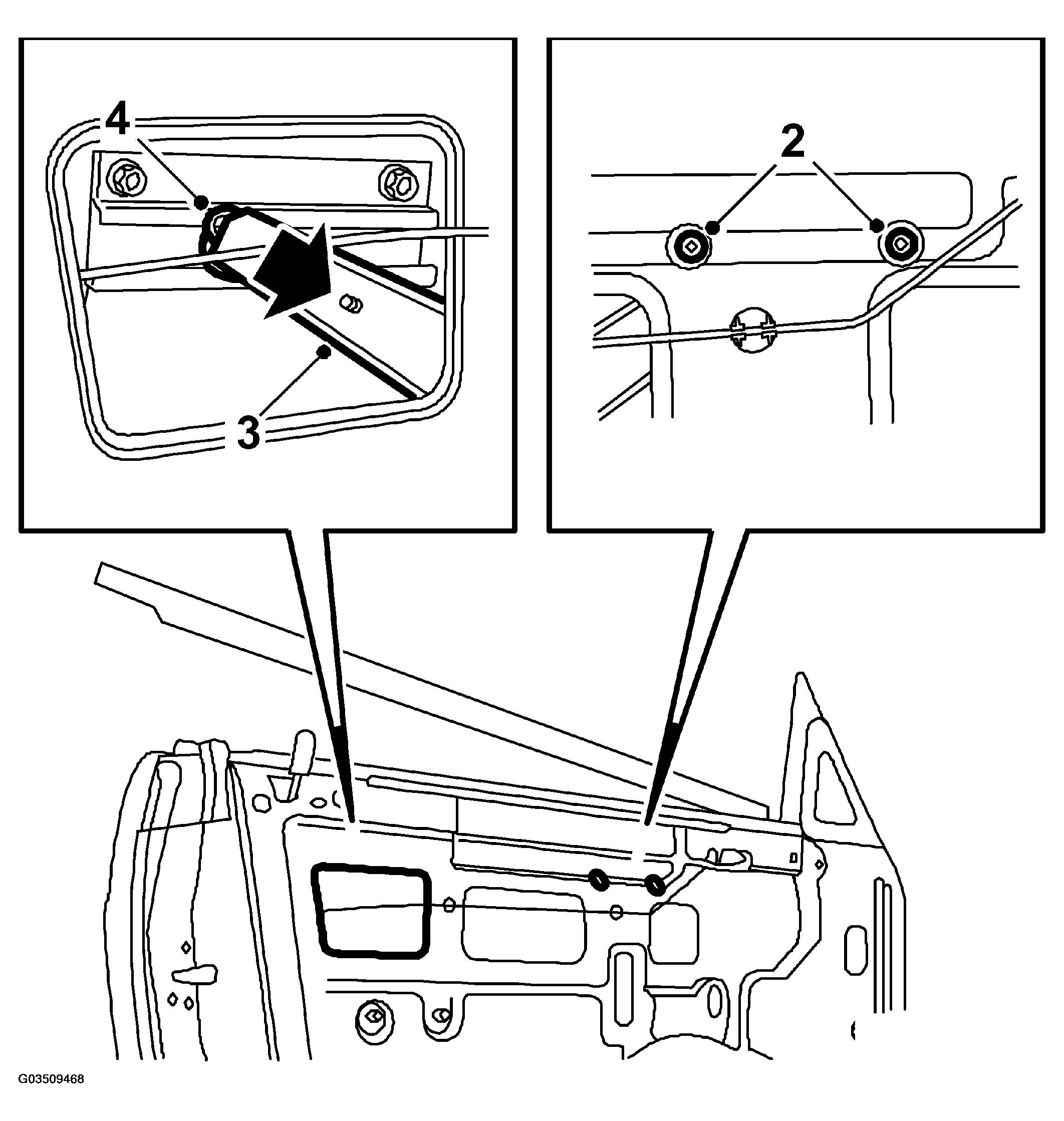

    5. Fig 1: Illustration For Step 2-4
    G03509468Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Adjust the position of the door window.
  6. Fit the water barrier.
  7. Fit the inner window well seal.
  8. Fit the outer window well seal. Fit the clip at the rear end.
  9. Refit the cover at the upper rear corner of the door.

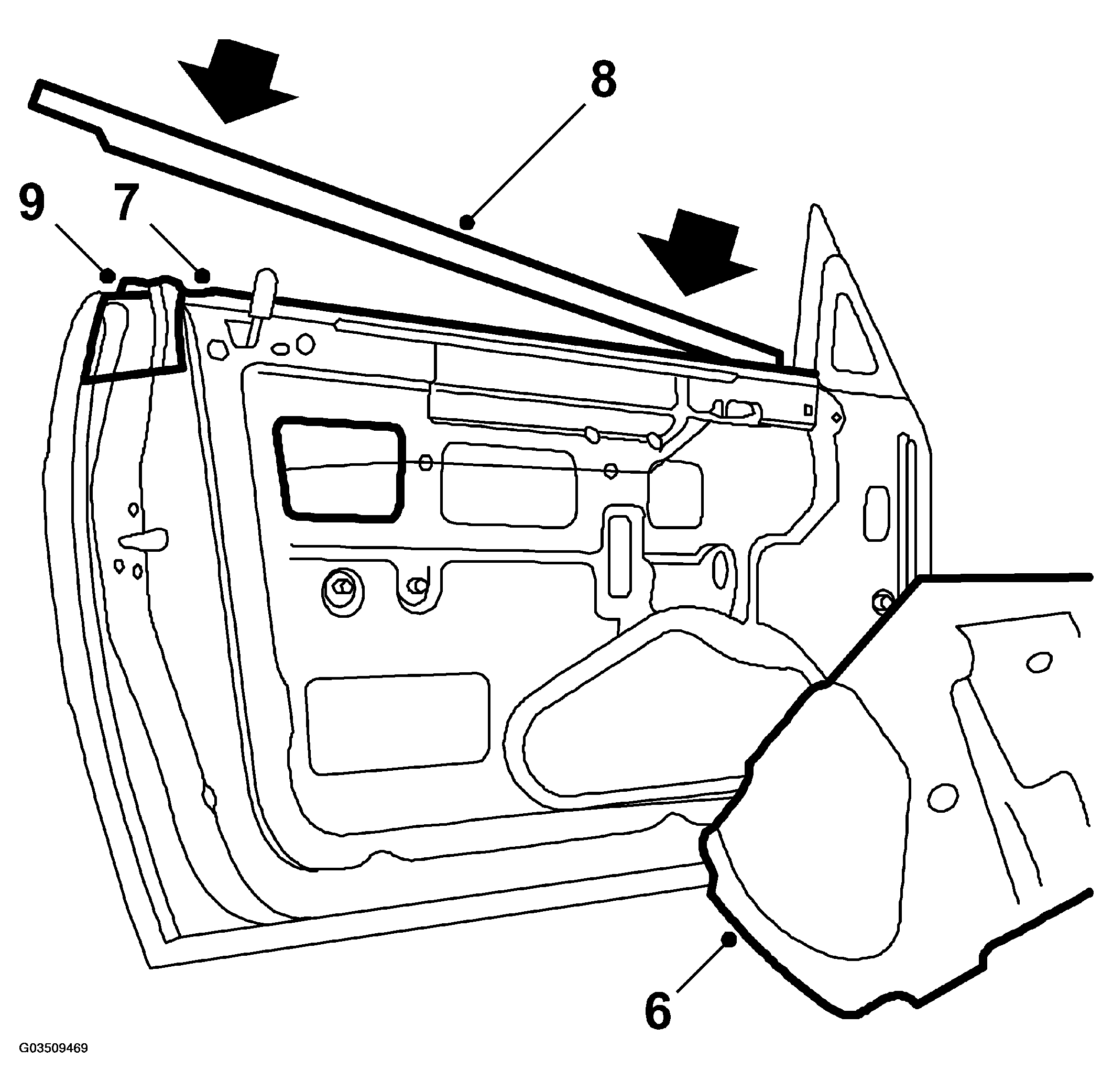

    10. Fig 2: Illustration For Step 6-9
    G03509469Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Refit the door trim. See ADJUSTMENT - REPLACEMENT in INTERIOR EQUIPMENT.
