To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door window rear guide rail. See Fig 1 .
    2. Fig 1: Removing Door Window Rear Guide Rail
    G03509475Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lower the window so that the rollers are accessible.

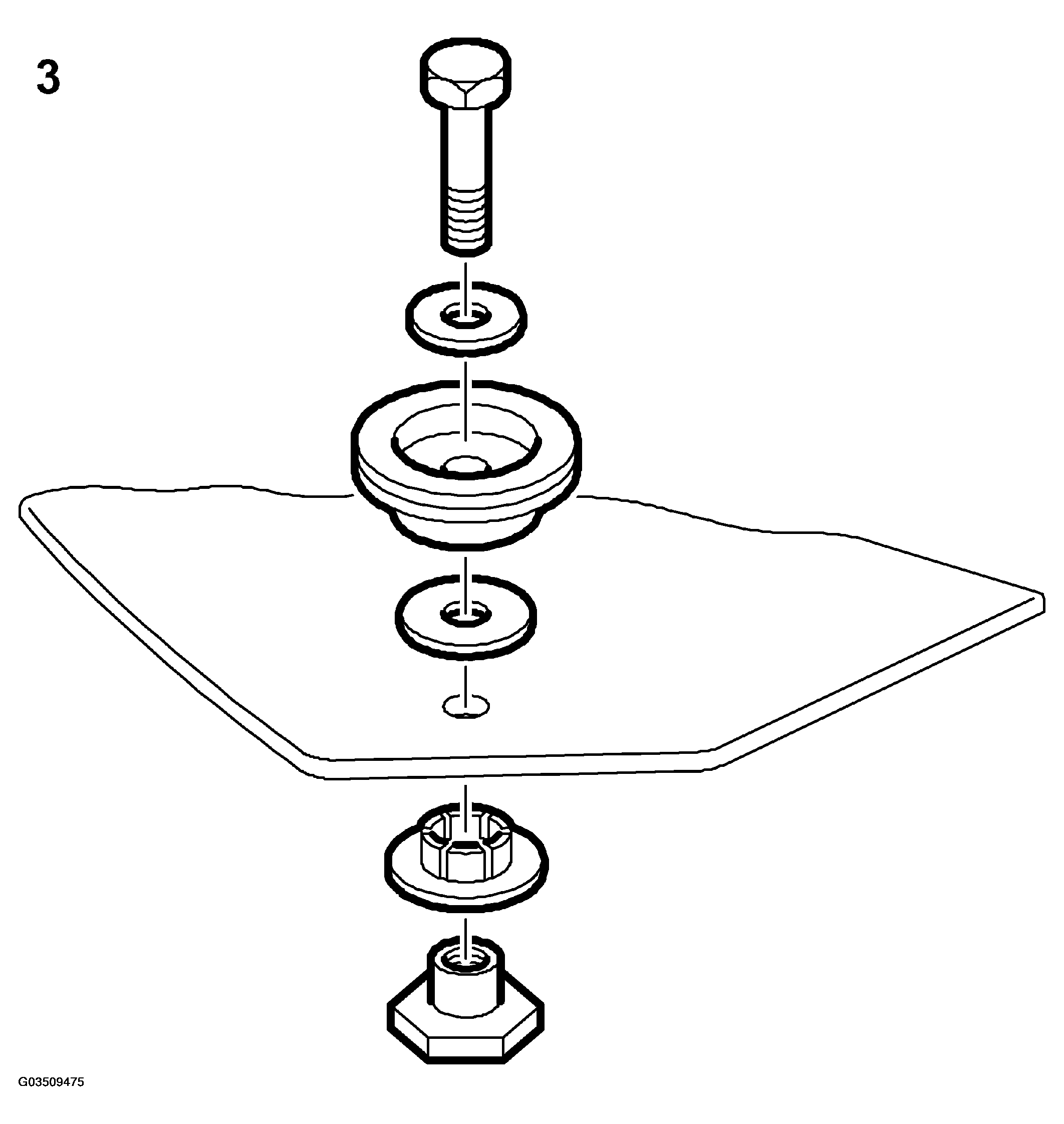

  3. Loosen the bolt (hold the nut on the rear of the window). Remove the roller.
