To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim. See ADJUSTMENT - REPLACEMENT in INTERIOR EQUIPMENT.
  2. Fold down the water barrier.
  3. Raise the window completely.
  4. Remove the rubber plug from the bottom of the door end.
  5. Note the position and remove the rear guide rail adjusting screw.
  6. Remove the bolts securing the upper end of the guide rail.
  7. Carefully bend out the window and unhook the upper end of the guide rail from the door panel.

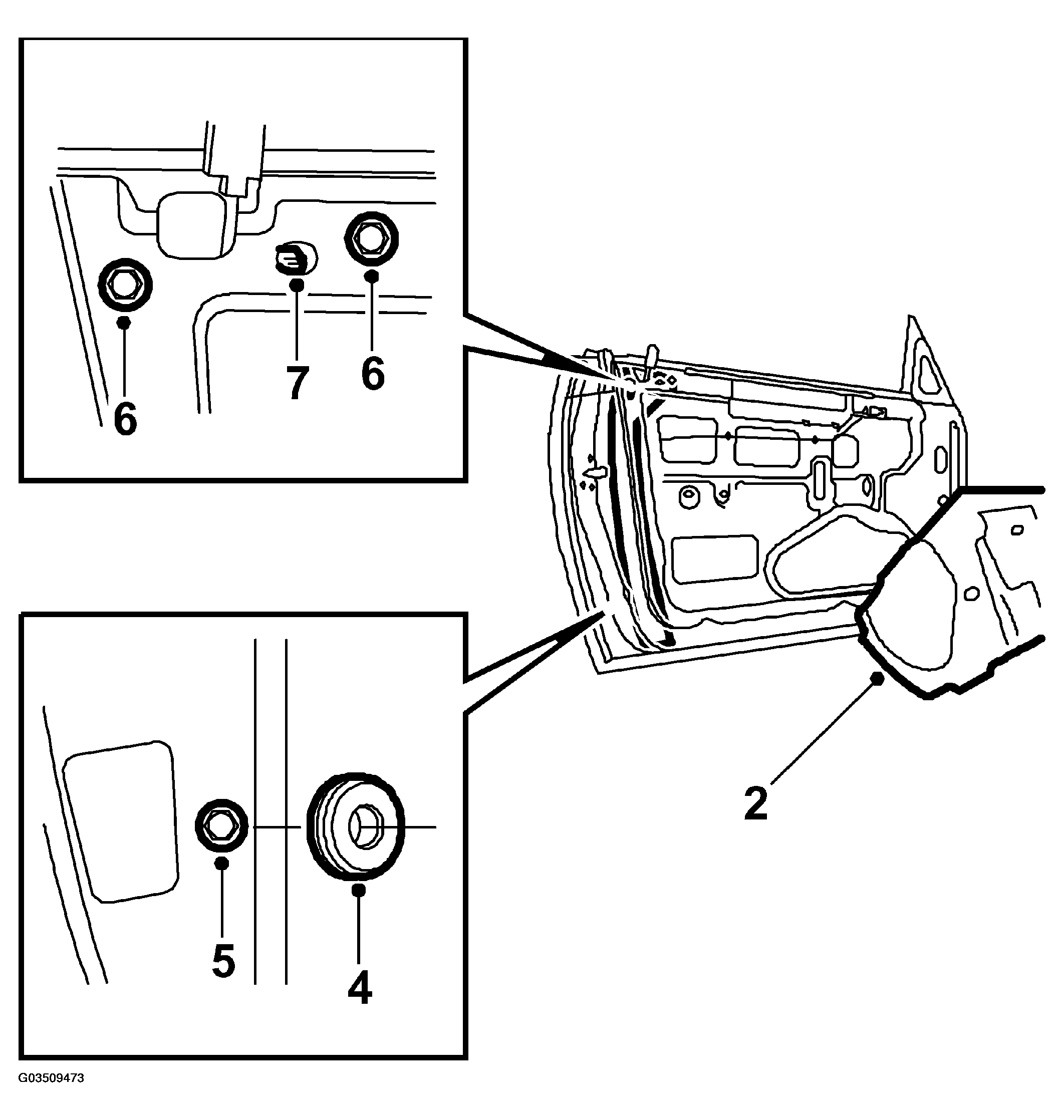

    8. Fig 1: Illustration For Step 2-7
    G03509473Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Lift up the guide rail and pull it away from the plastic bushings at the rear edge of the window.
