To fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fasten the new seal at the point of the sheet metal flange. Use adhesive 30 08 075 3M Super Weatherstrip.

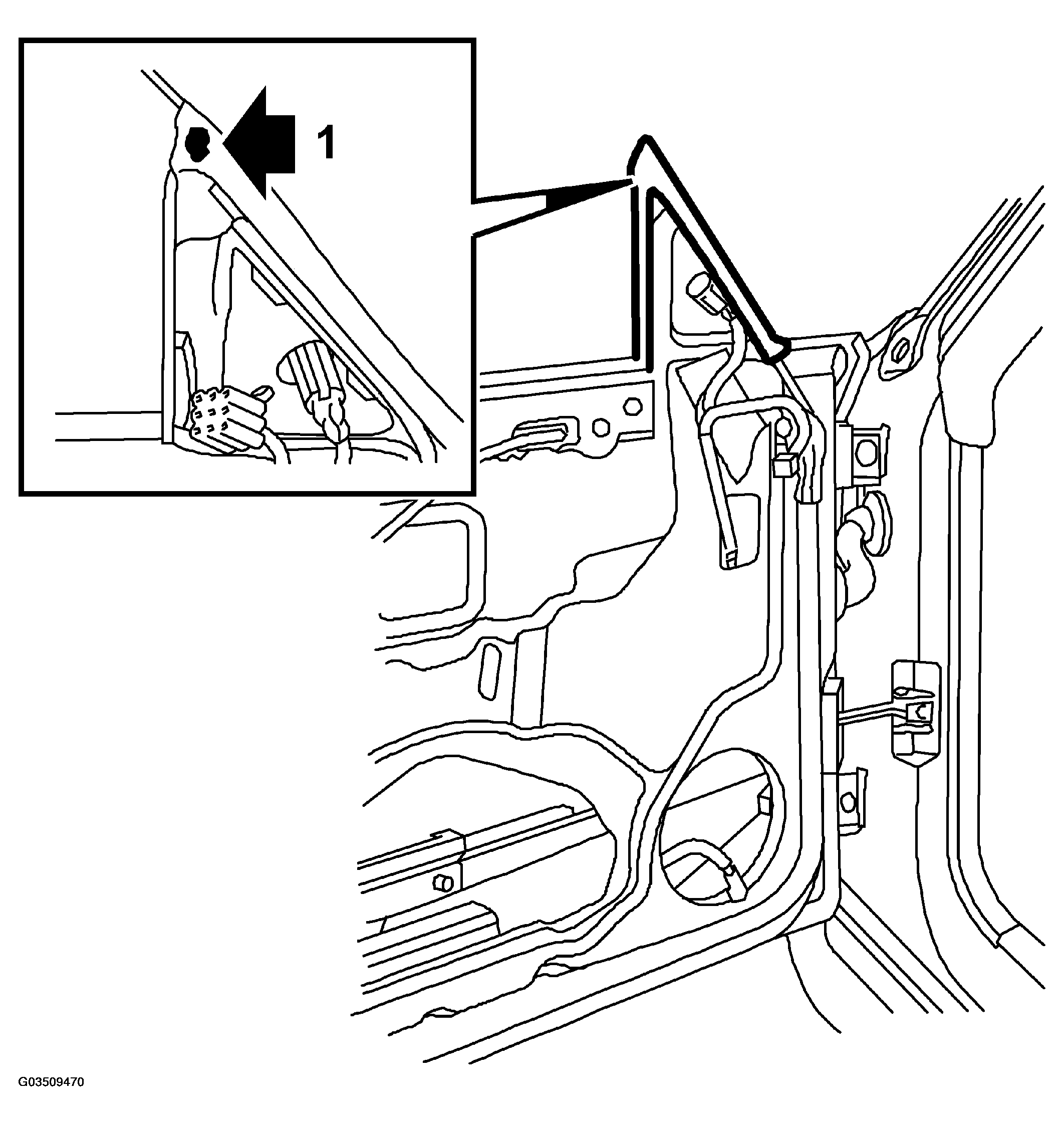

    Fig 1: Illustration For Step 1
    G03509470Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Wipe dry the window channel before starting to apply adhesive.
  2. Press down the seal in the window channel.
  3. Raise the window and pull down the seal so that it seals around the front edge of the window.

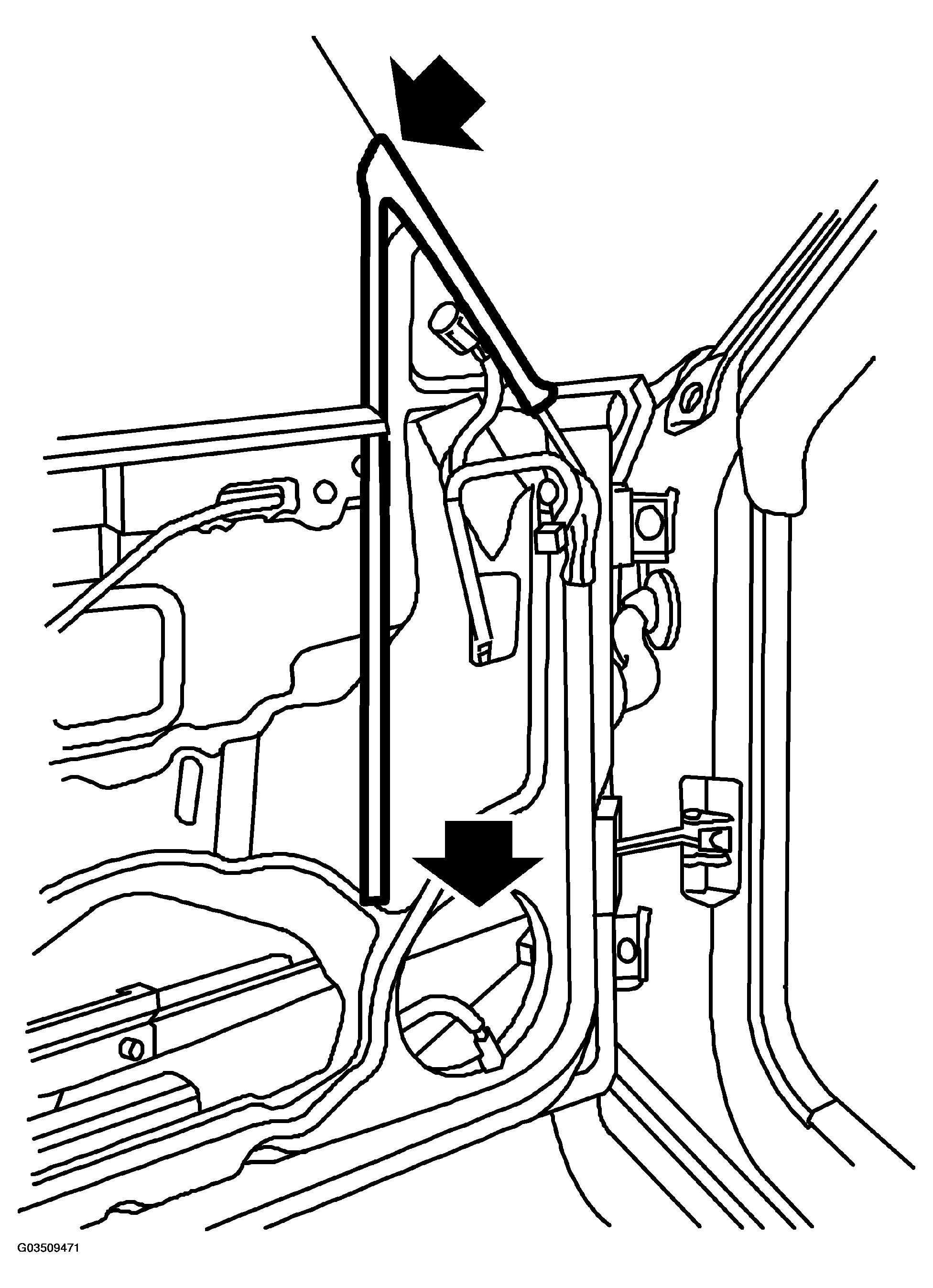

    Fig 2: Lifting Up Seal And Applying Adhesive 30 08 075 3M Super Weatherstrip To Lower Part
    G03509471Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Lift up the seal and apply adhesive 30 08 075 3M Super Weatherstrip to the lower part.
  5. Fasten the seal with adhesive.

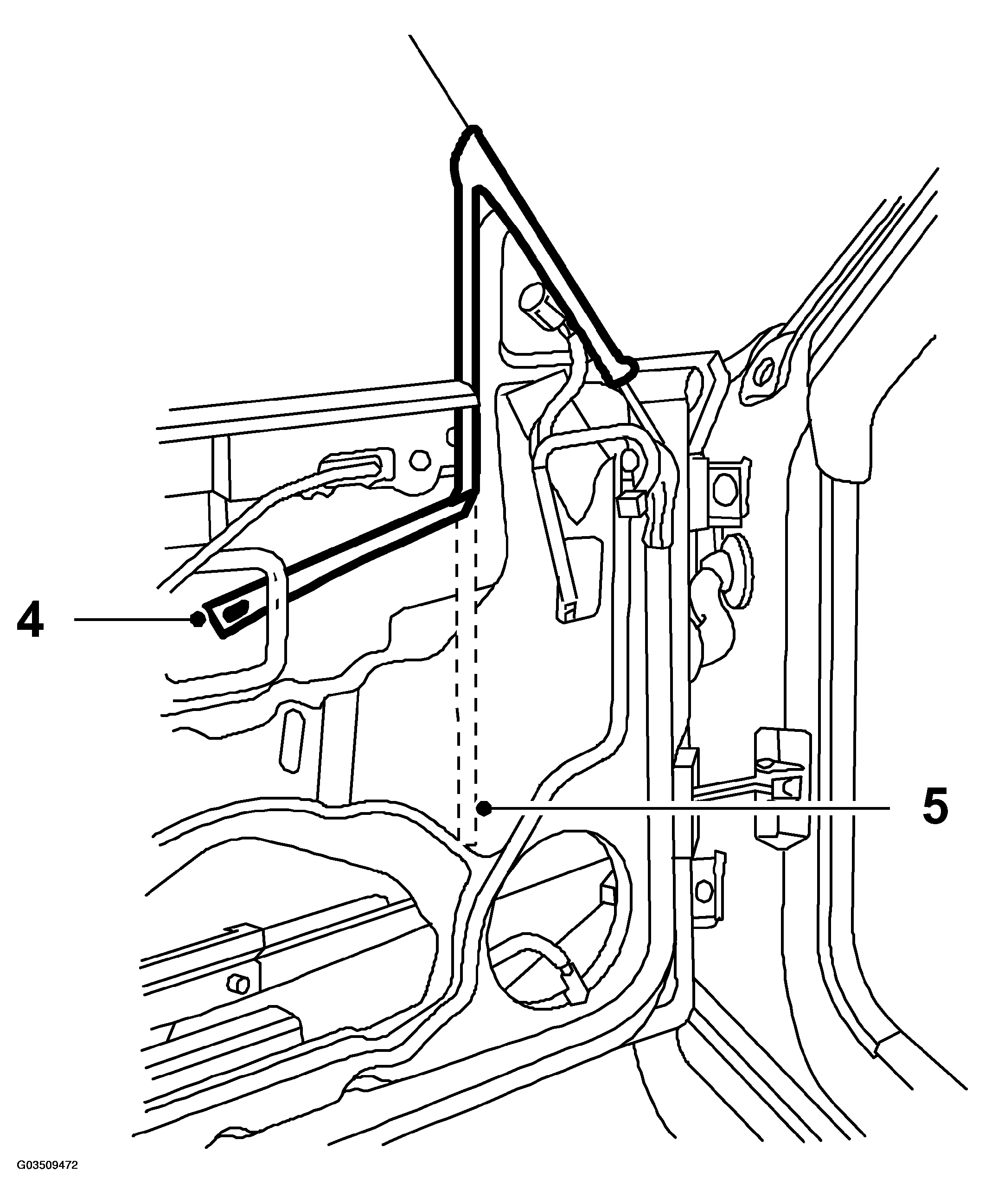

    6. Fig 3: Illustration For Step 4-5
    G03509472Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the inner and outer scraper strip to the door.
  7. Fit the door mirror.
