To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the cover over the mirror mount, pull it off by hand starting at the front edge (fastened with clips).

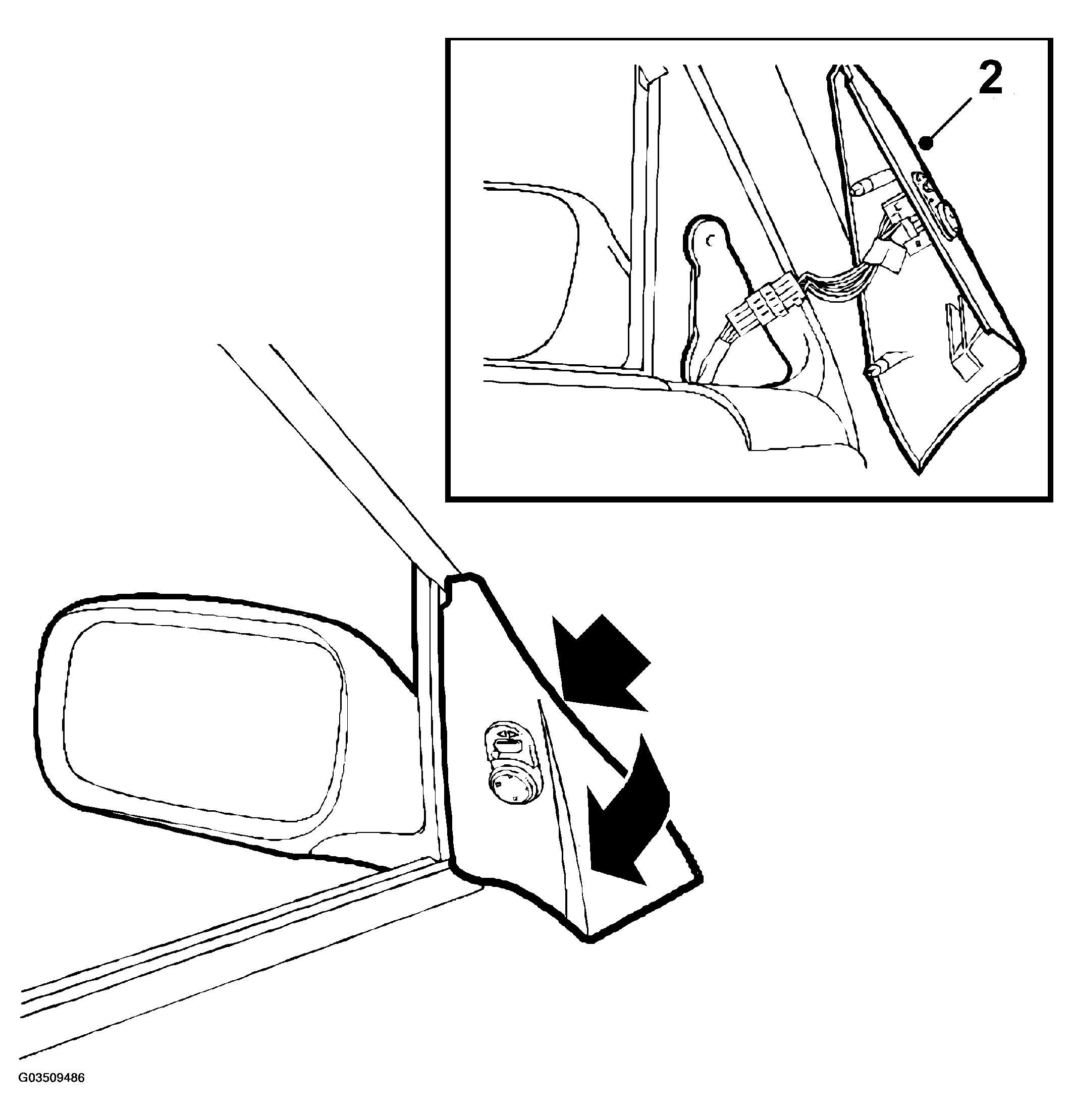

    Fig 1: Illustration For Step 2
    G03509486Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector to the electric motor.

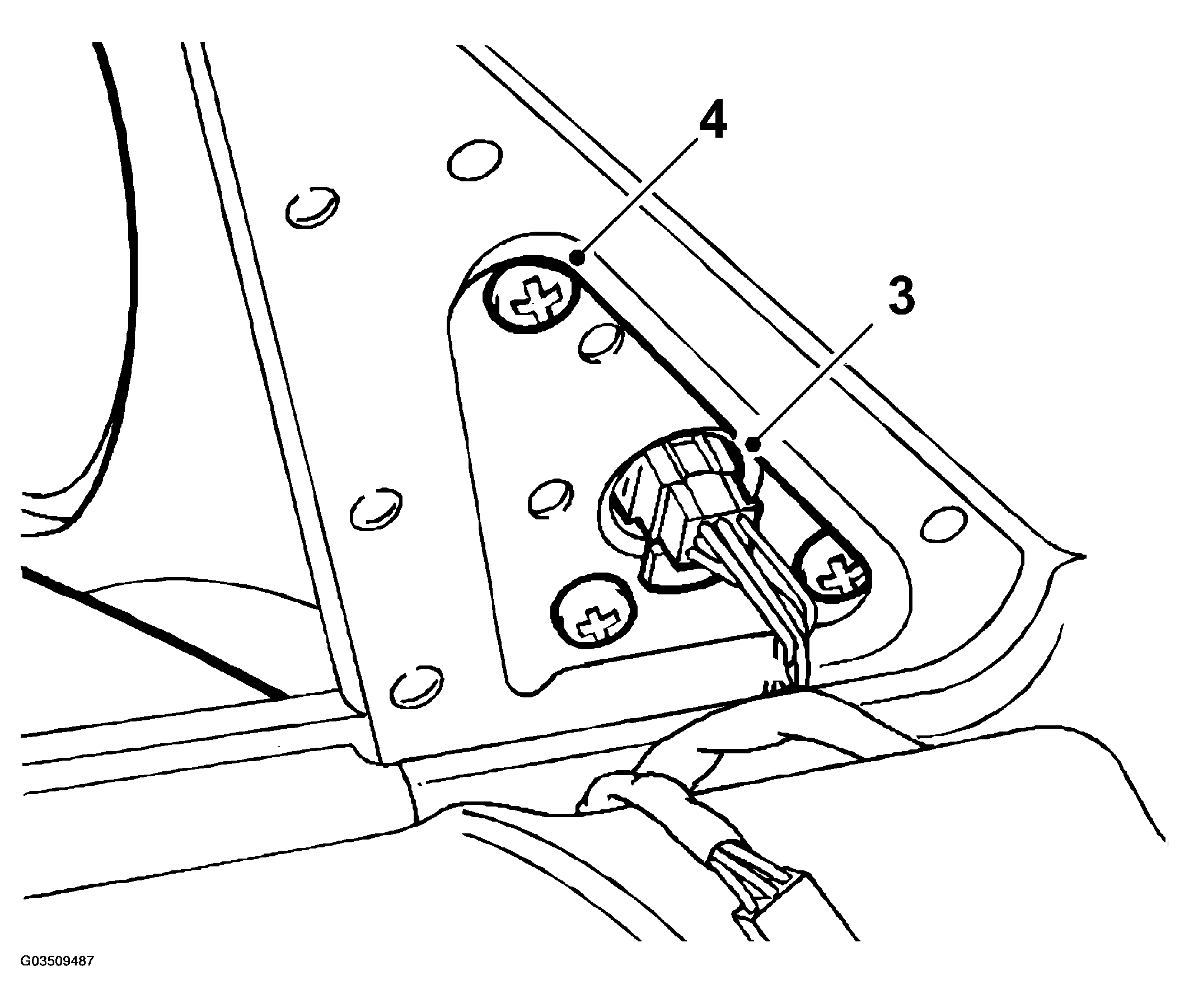

    Fig 2: Illustration For Step 3-4
    G03509487Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the door mirror by removing the 3 retainer screws.
