To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the expander rivets and remove the cover.

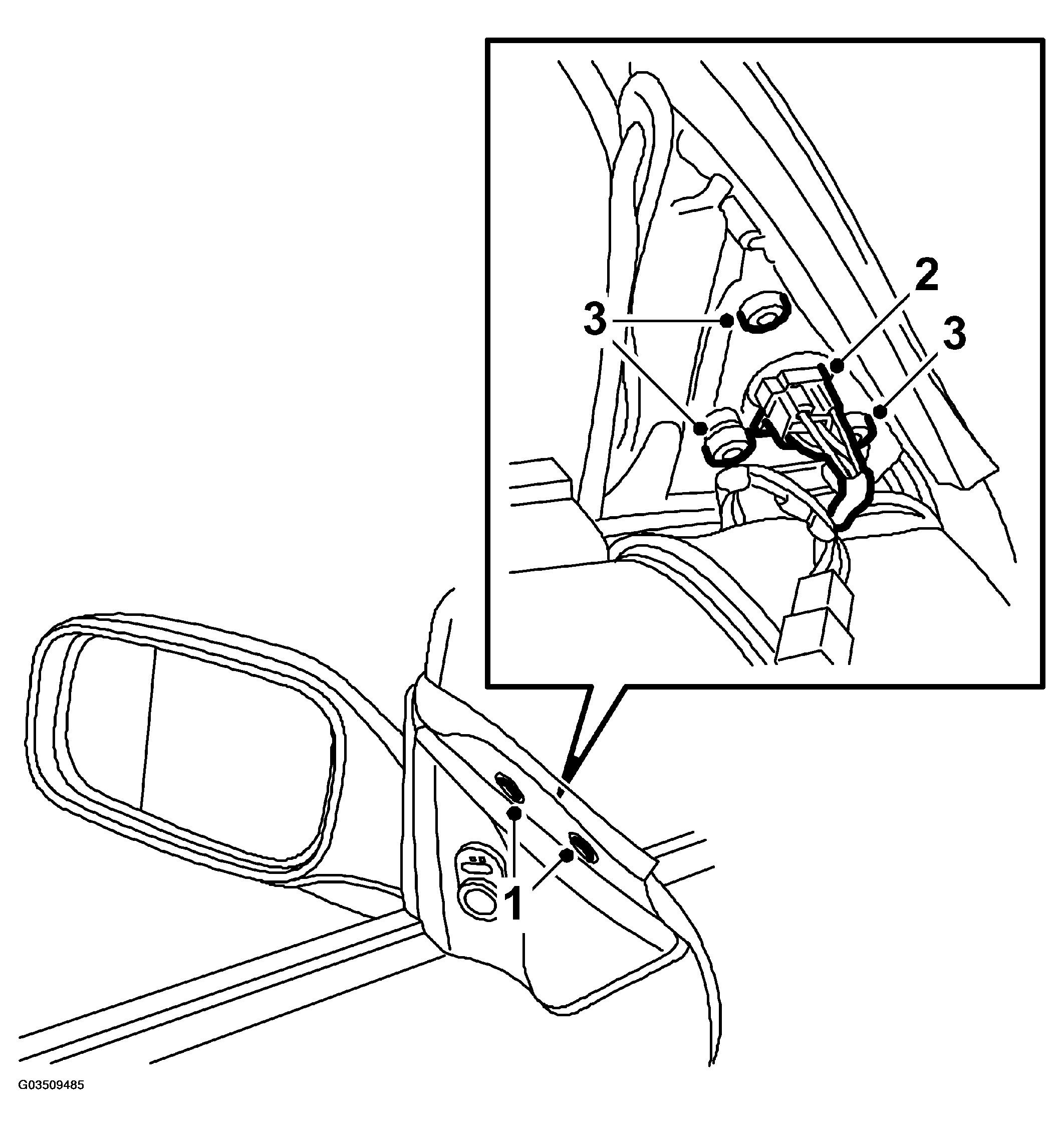

    Fig 1: Illustration For Step 1-3
    G03509485Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector.
  3. Remove the three retaining bolts and lift out the door mirror.
