To remove

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the mirror glass with a large flat screwdriver.

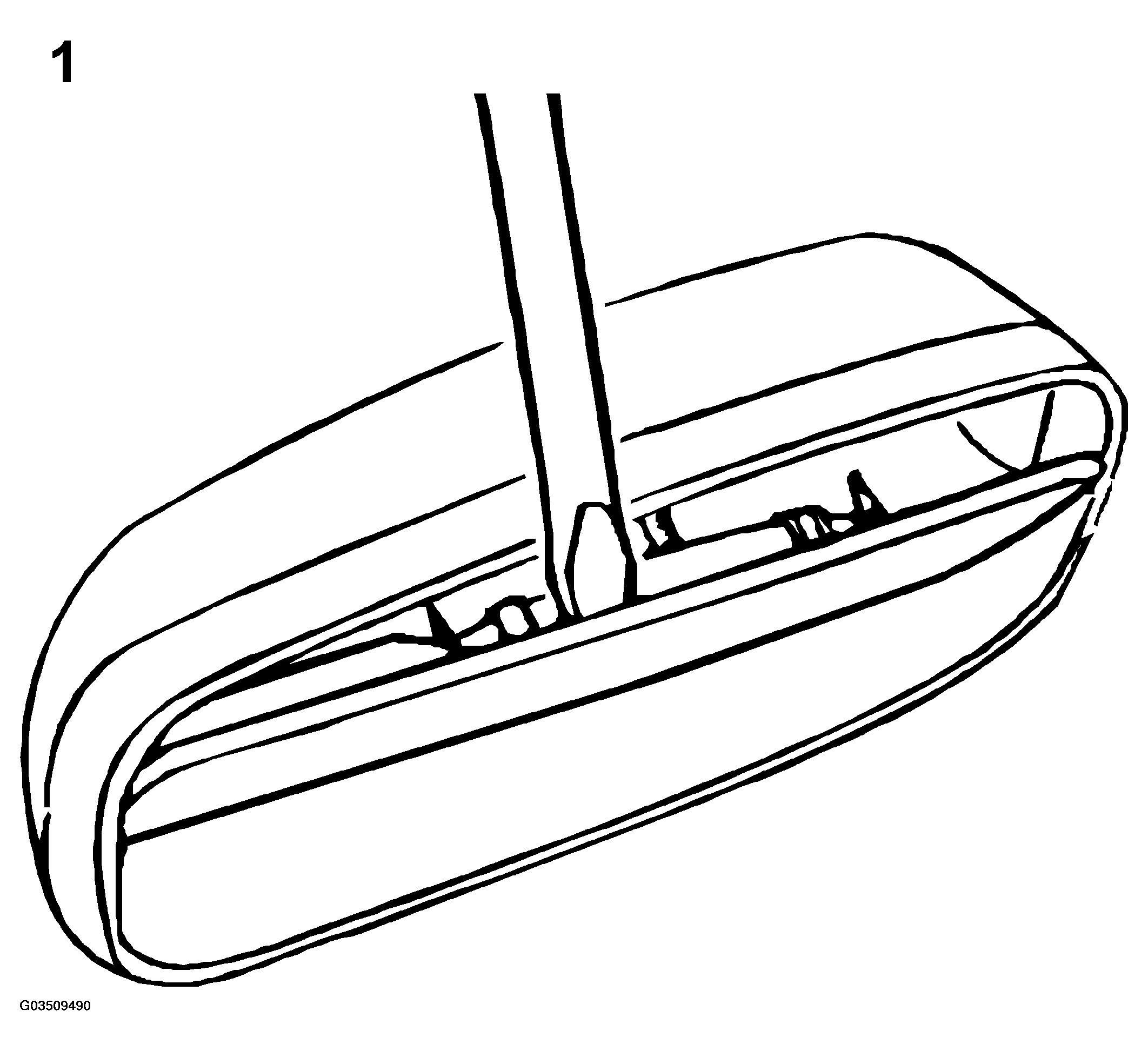

    Fig 1: Removing Mirror Glass With Large Flat Screwdriver
    G03509490Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the screws securing the electric motor.
  3. LHD cars:

    Place 3 washers under the two screws as shown in illustration A  .

    RHD cars:

    Place 1 washer under each screw as shown in illustration B  .

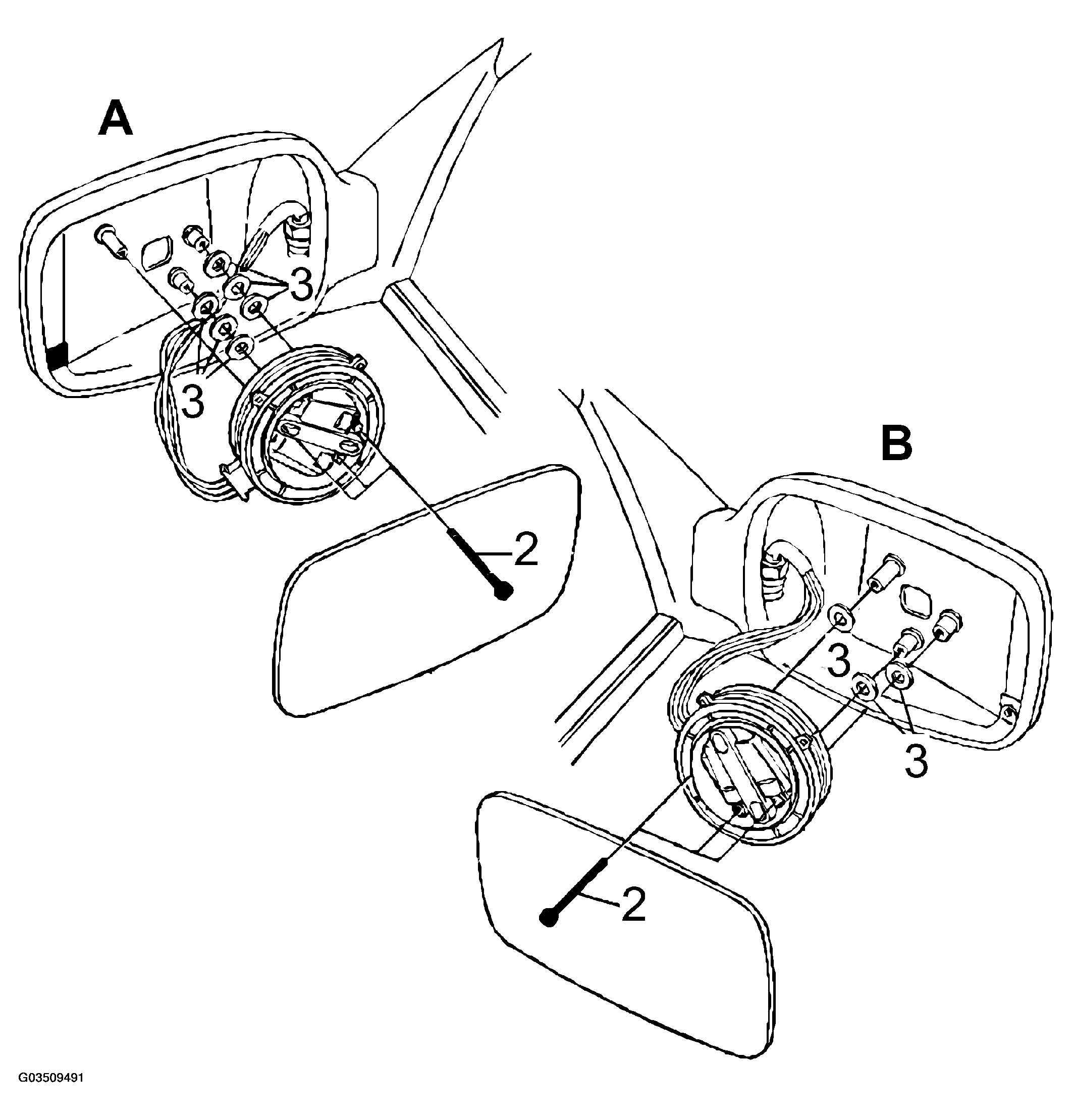

    Fig 2: Illustration For Step 2-3
    G03509491Courtesy of SAAB-SCANIA OF AMERICA, INC.
