Electrical opening of luggage compartment lock Convertible: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

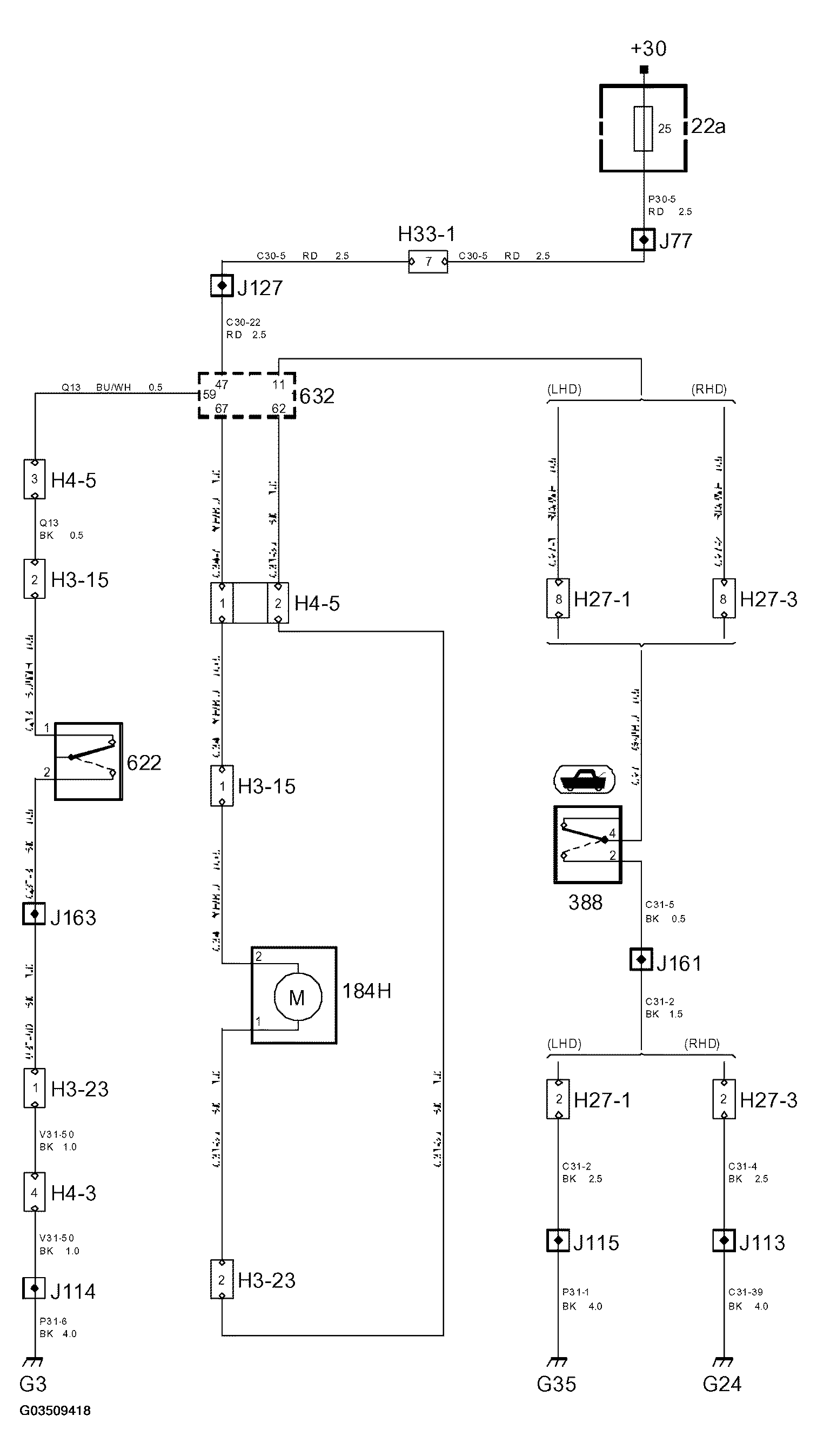

Fig 1: Component Identification Diagram - Electrical Opening Of Luggage Compartment Lock Convertible
G03509418Courtesy of SAAB-SCANIA OF AMERICA, INC.
