TSL-unlocking with remote control (not US/CA)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
TSL-unlocking with remote control - press button B once and all doors unlock, TSL is deactivated (tailgate remains locked).
If button C is used, only the tailgate will unlock and the other doors remain locked.

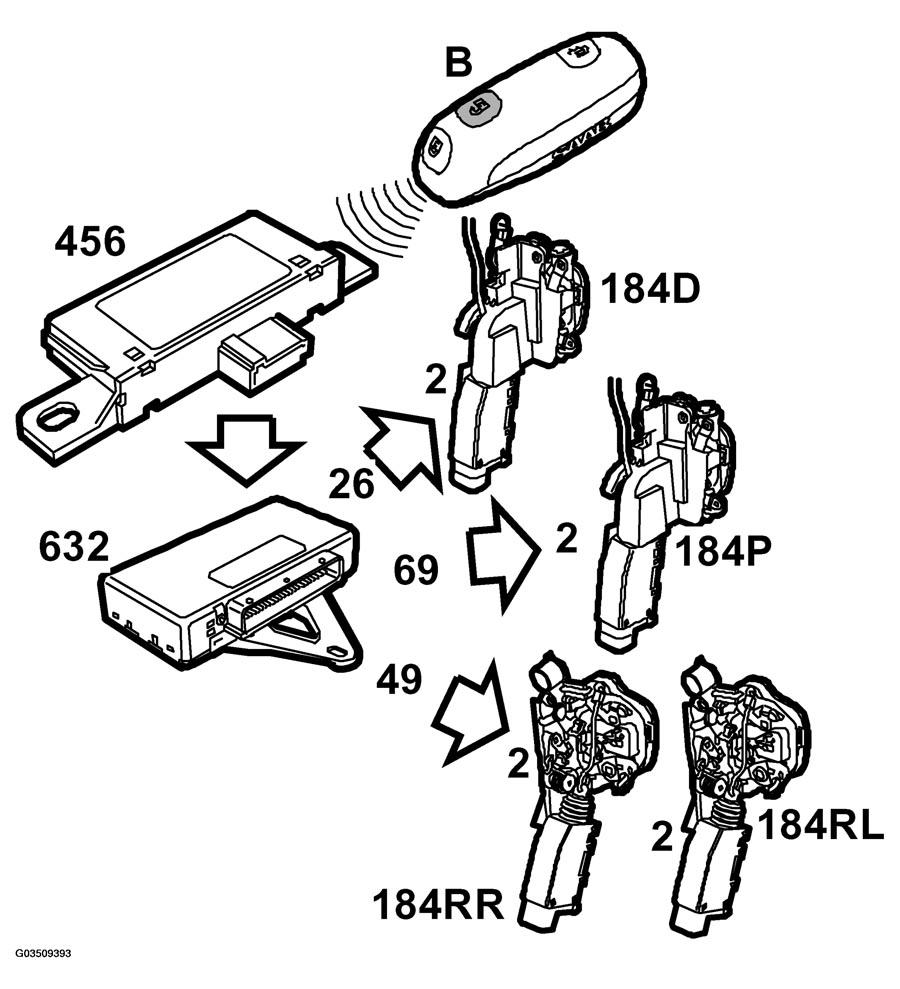

When the button on the remote control is pressed, it sends a signal that is received by a receiver. The receiver processes the signal and transfers it to the TWICE control module.

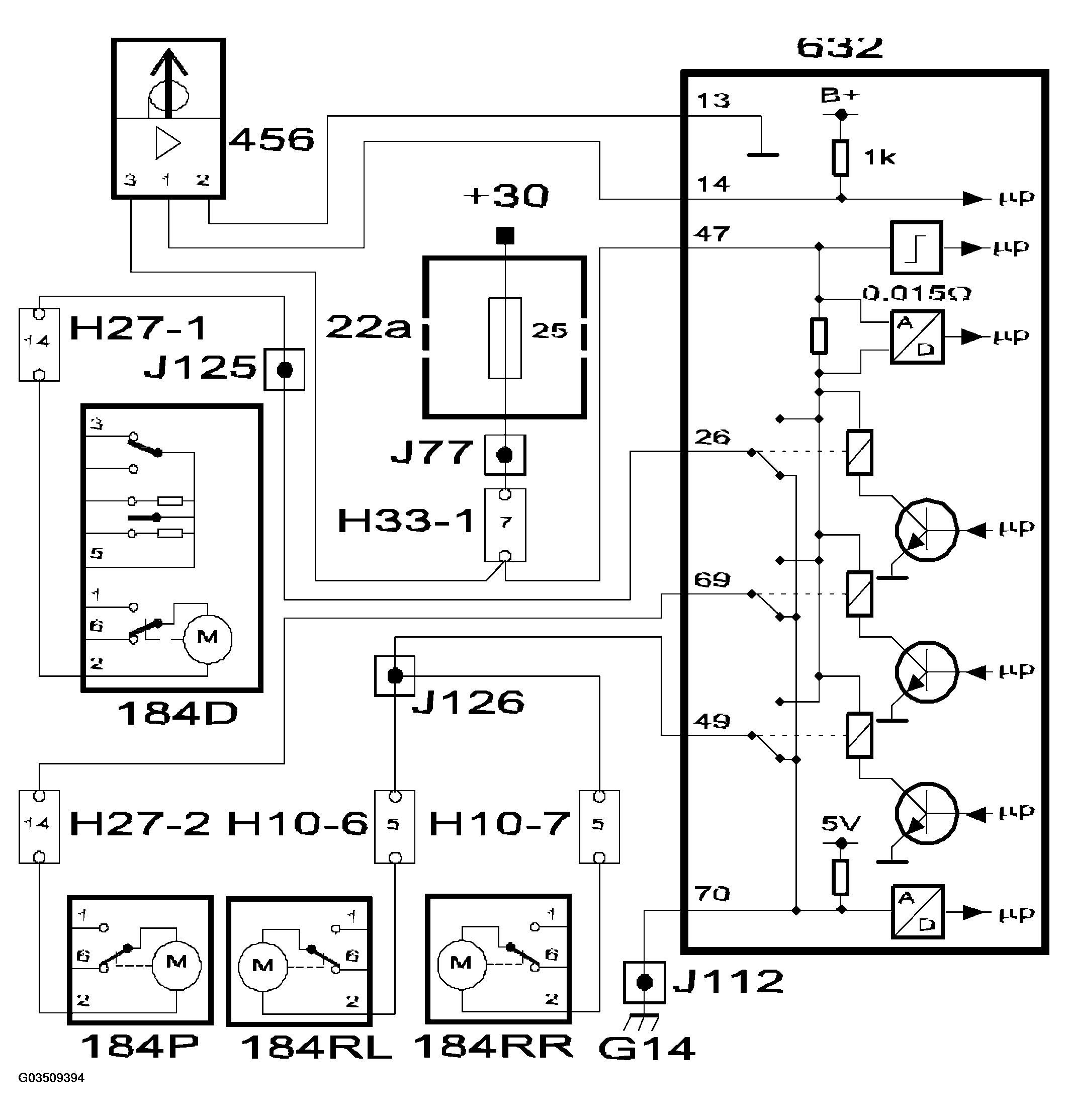

A short voltage impulse is output to the lock motors by the TWICE control module.
- Pin 26, driver's door (5D, 3D and convertible)
- Pin 69, front passenger door (5D, 3D and convertible)
- Pin 49, rear doors (5D)
- Pin 67, tailgate (5D, 3D)
The lock motor is grounded in the TWICE control module by:
- Pin 42 and 22, driver's door (5D, 3D and convertible)
- Pin 66 and 22, front passenger door (5D, 3D and convertible)
- Pin 44 and 2, tailgate (5D and 3D)
