TSL-activation with remote control (not US/CA)
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

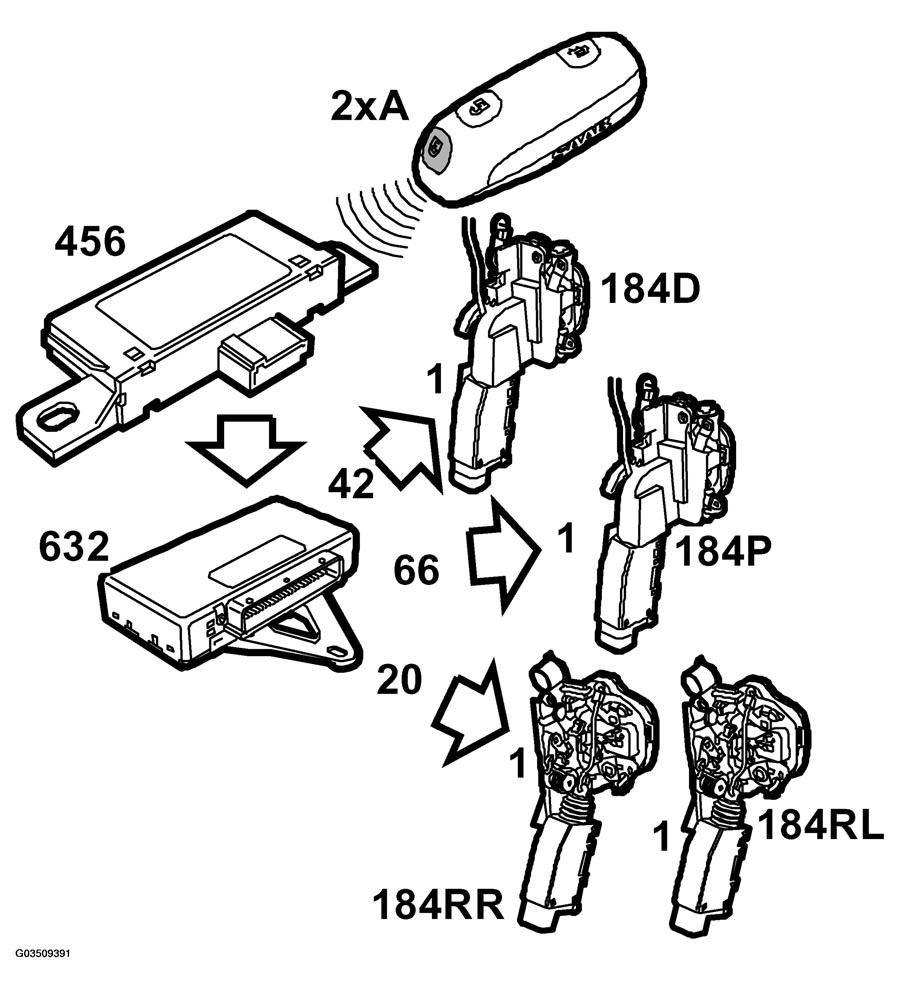

TSL activation with remote control - press button A twice within five seconds, TSL is activated.
When the button is pressed the first time, all doors are locked, see "LOCKING ALL DOORS ,",
When the button is pressed the second time, the remote control sends a signal that is received by a receiver. The receiver processes the signal and transfers it to the TWICE control module.

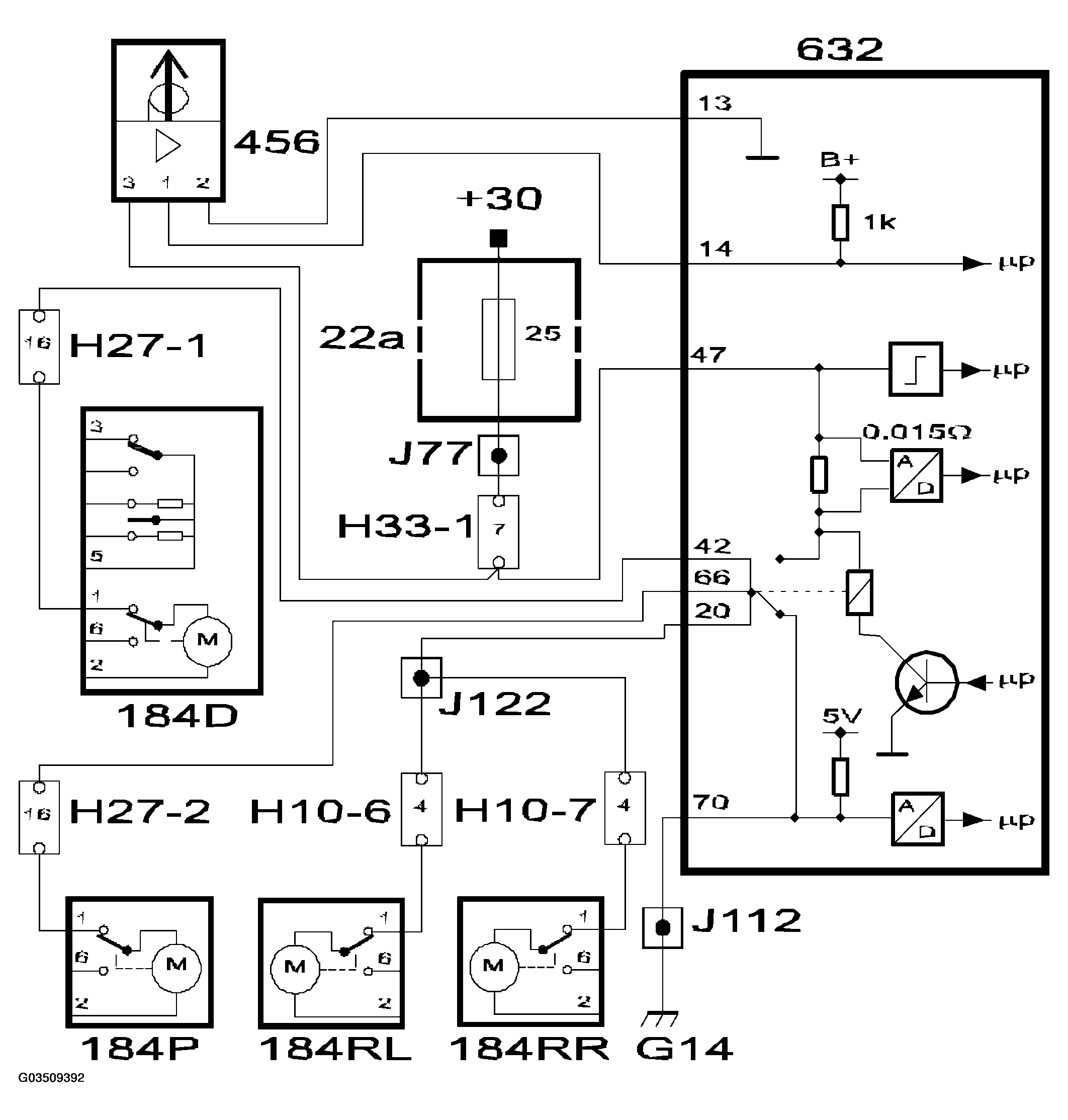

A short voltage impulse is fed from the TWICE control module pins:
- Pin 42, driver's door (5D, 3D and convertible)
- Pin 66, passenger door (5D, 3D and convertible)
- Pin 20, rear doors (5D)
- Pin 44, tailgate (5D and 3D)
- Pin 22, to all doors to ensure that all doors have moved to their end positions (5D, 3D and convertible)
The lock motors are grounded in the TWICE control module on:
- Pin 26, driver's door (5D, 3D and convertible)
- Pin 69, passenger door (5D, 3D and convertible)
- Pin 49, rear doors (5D)
- Pin 67, tailgate (5D and 3D)
