Separate unlocking with remote control (US/CA)
On the US and CA markets, the cars are standard equipped with separate unlocking of both driver's door and passenger door. The function can also be programmed for other markets.

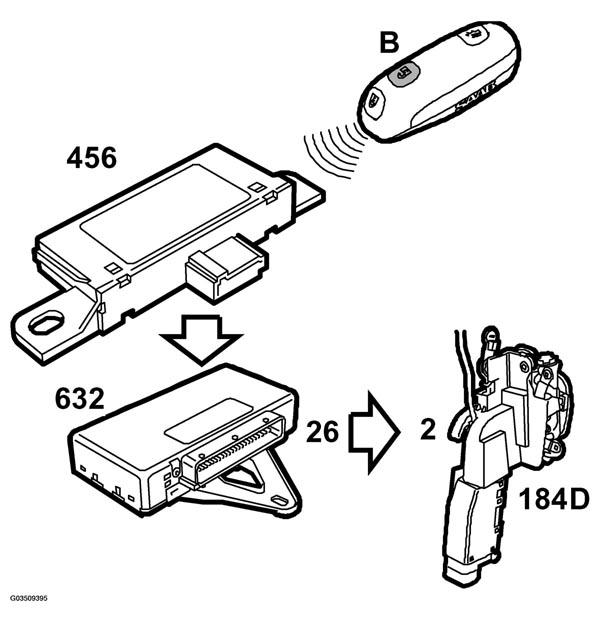

For separate unlocking - press button B once and the driver's door is unlocked.
When the button is pressed the first time, the remote control sends a signal that is received by a receiver. The receiver processes the signal and transfers it to the TWICE control module.
A short voltage impulse is fed to the lock motor from control module pin 26 to the driver's side lock motor, and the driver's door is unlocked.
The lock motor is grounded on pins 42 and 22 of the TWICE control module.

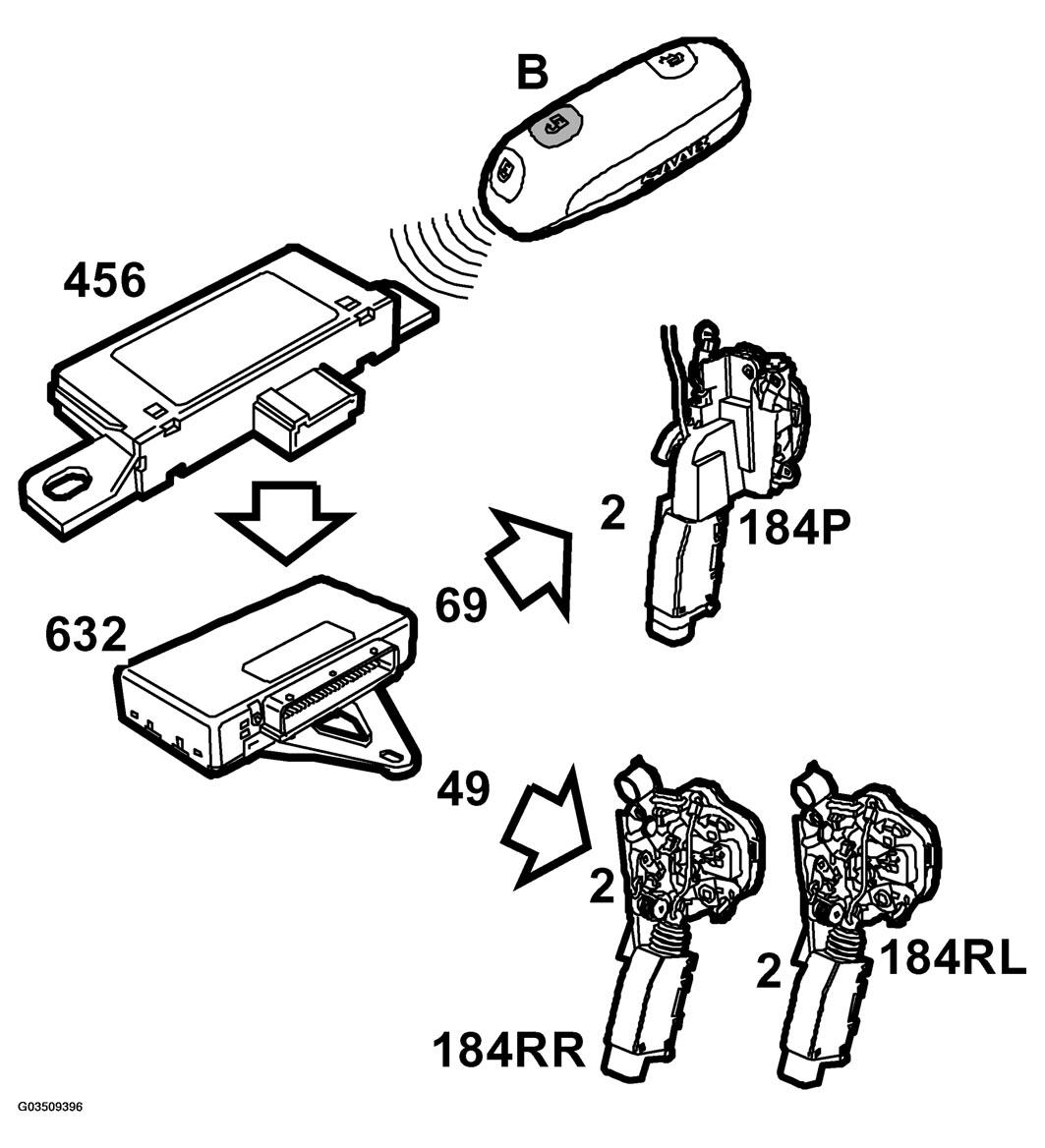

When the button is pressed a second time on the remote control, it sends a signal that is received by a receiver. A short voltage impulse is output, after receiving signal, by the TWICE control module to the lock motors, from control module pin: When the button on the remote control is pressed the second time, a signal is sent that is received by a receiver. A short voltage is fed, after receiving the signal, by the TWICE control module to the lock motors, from control module pins.
- Pin 69, front passenger door (5D, 3D and convertible)
- Pin 49, rear doors (5D)
The lock motors are grounded in the TWICE control module on:
- Pin 66 and 22, front passenger door (5D, 3D and convertible)
- Pin 20 and 22, rear doors (5D)
