Remote control: Receiver

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

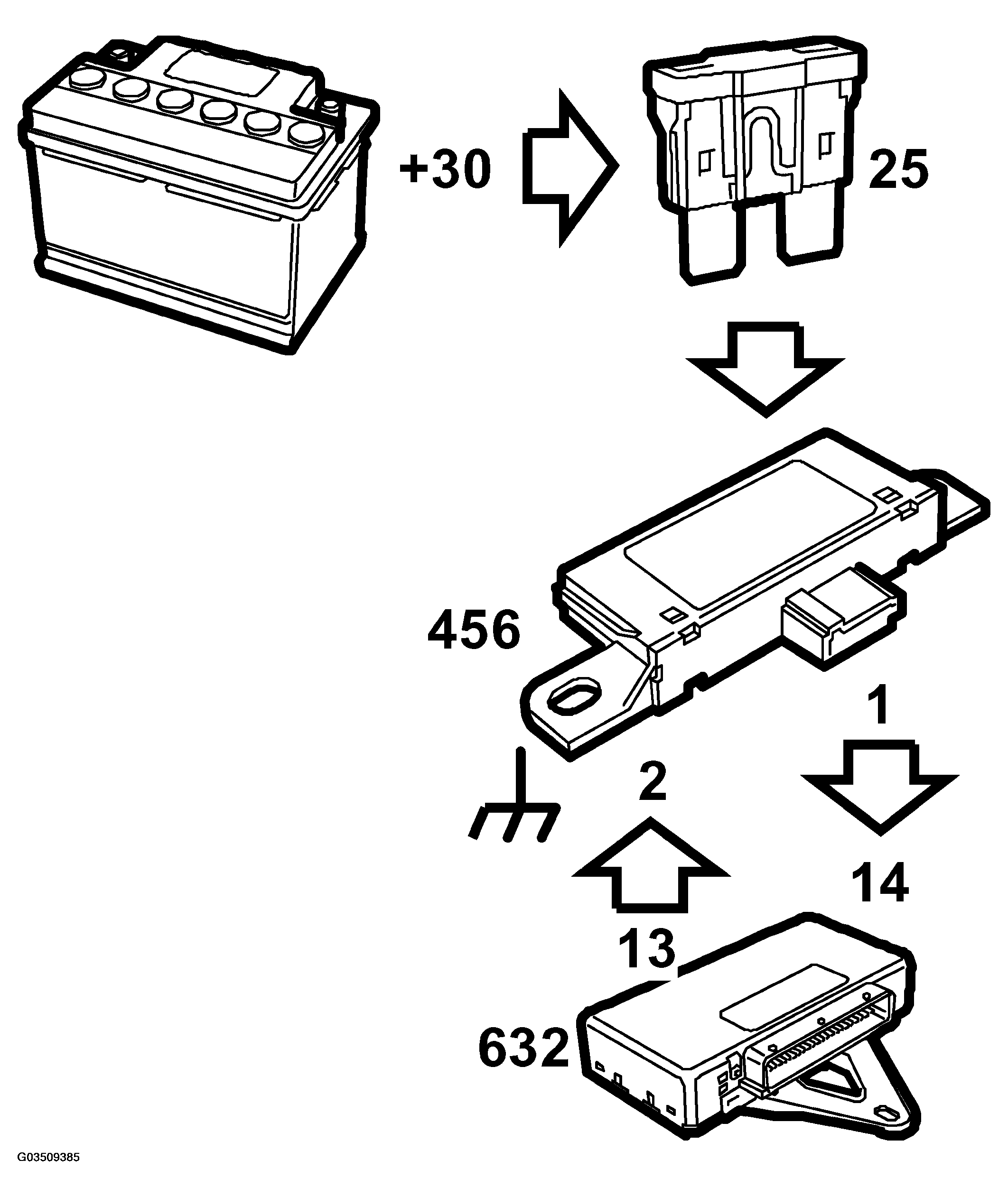

Fig 1: Identifying Power Supply Flow From Battery To Receiver

Courtesy of SAAB-SCANIA OF AMERICA, INC.

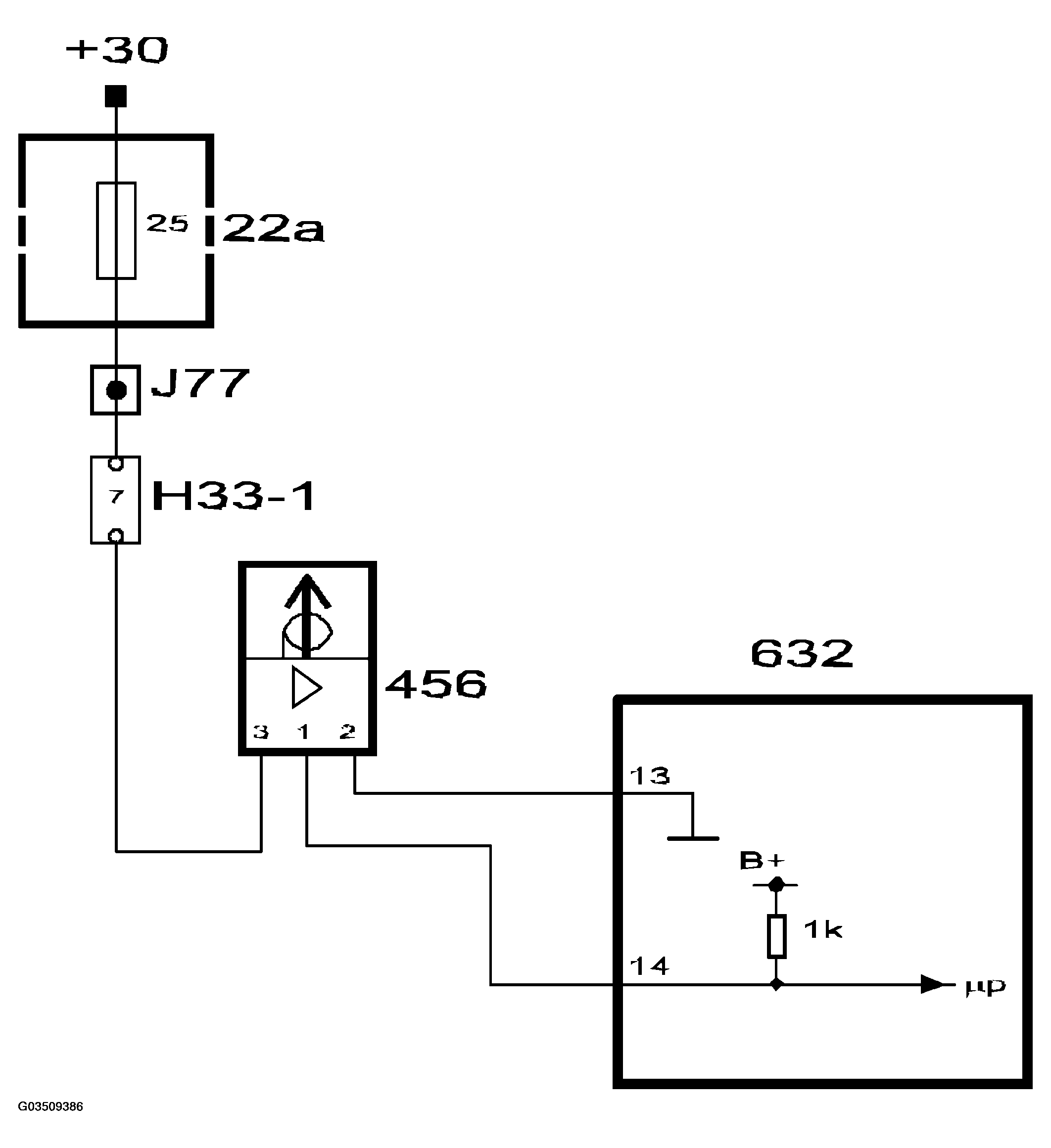

Fig 2: Identifying Power Supply Circuit Diagram Of Receiver

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The remote control receiver is located in the rear left part of the center console.

The receiver is power supplied with +30 via fuse 25 to pin 3 on the receiver. The receiver is connected to the TWICE control module as follows:

signal, to pin 14
ground, to pin 13
